Publication 1746-UM022B-EN-P - January 2005
5-2 Programming Examples
Procedure
1. Create integer file N10. Integer file N10 should contain eight
elements (N10:0 through N10:7).
2. Using the programming software, enter the configuration
parameters for all eight thermocouple channels into data file
locations N10:0 through N10:7.
3. Program a rung in your ladder logic to copy the contents of
integer file N10 to the eight consecutive output words of the
thermocouple module beginning with O:3.0.

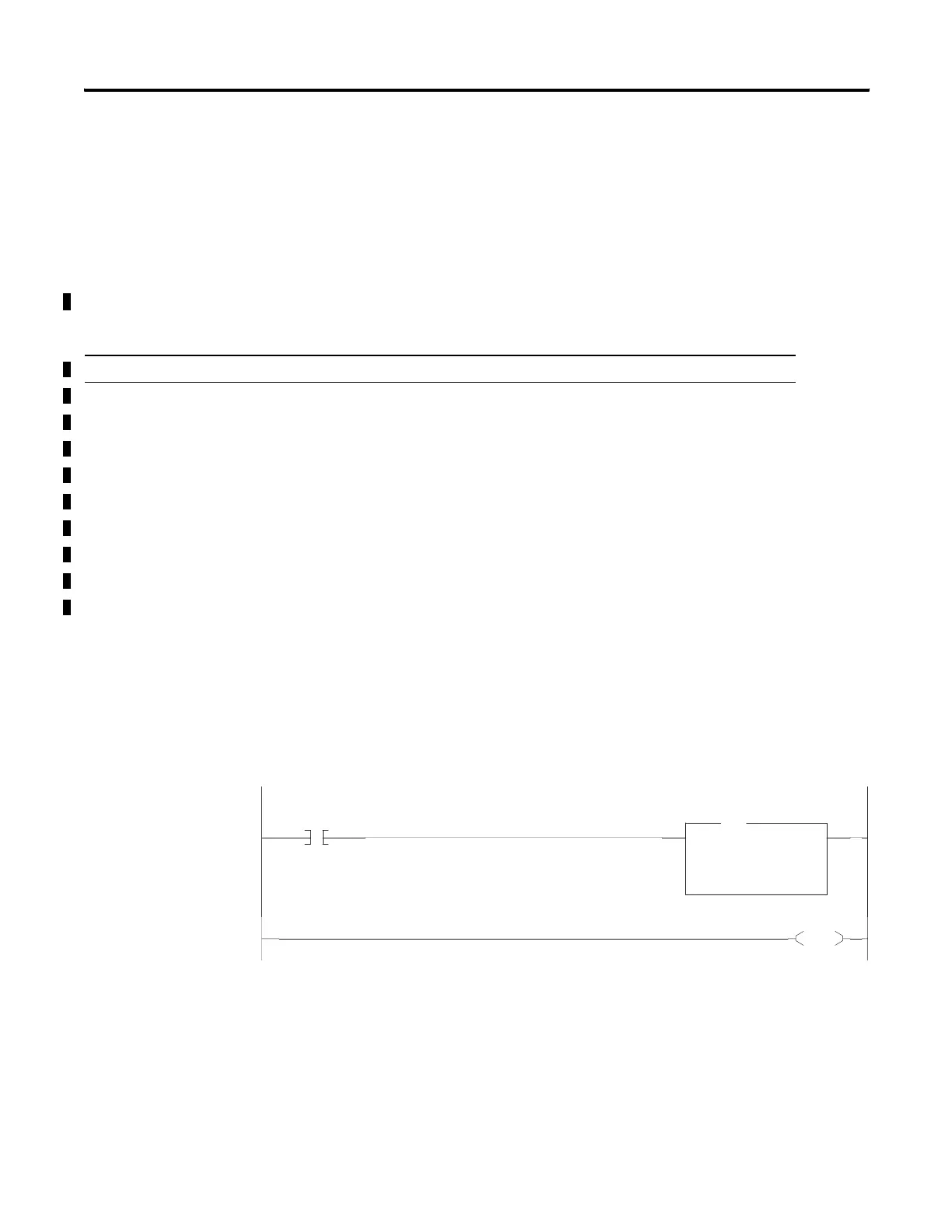

Initial programming example
On power up, bit S:1/15 is set for the first program scan. During the
first program scan, the configuration data in N10:0 through N10:7 will
be sent to the 1746-NT8 channel configuration words.
Data table for initial programming
Data File N10 (bin) - NT 8 Configuration
Offset1514131211109876543210SymbolDescription
N10:01000001000100011
N10:11000001000100011
N10:21000001000100011
N10:31000001000100011
N10:41000001000100011
N10:51000001000100011
N10:61000001000100011
N10:71000001000100011
S:1
15
COP
Copy File
Source #N10:0
Dest #O:3.0
Length 8
COP
#NT8_CONFIGURATION
END
F irst Pass
0000
0001
During the first pass, send the channel configuration data to the thermocouple module.
