Publication 1746-UM022B-EN-P - January 2005
Programming Examples 5-15
SLC 500 Example with NT8
in Remote I/O Rack
The following example shows sample ladder logic when using an SLC
controller to control the module in remote rack across the Remote I/O
network. The SLC must use Block transfer reads and writes to
communicate with the 1746-NT8 module in a remote rack.

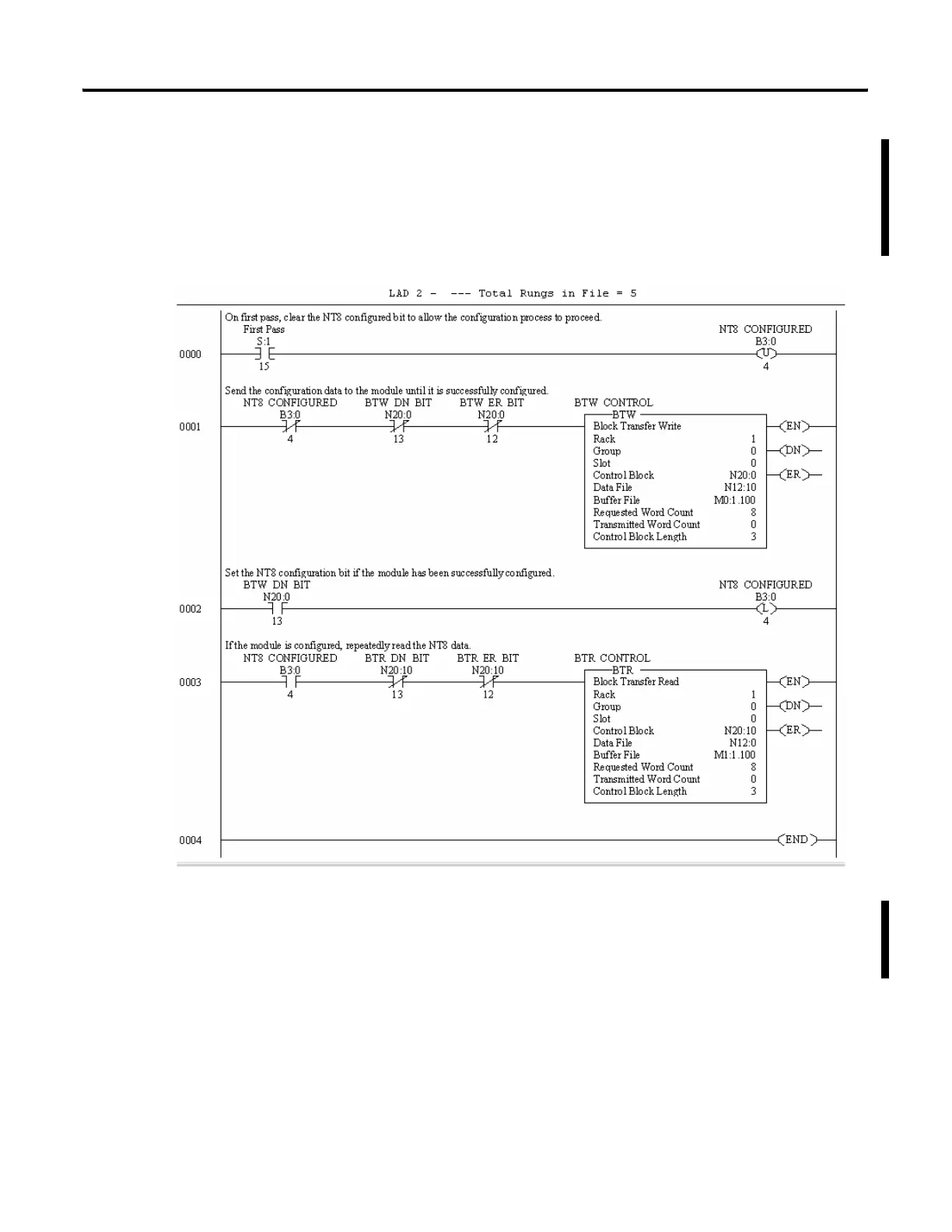

RIO example with SLC processor
SLC processors with a 1747-SN series B RIO Scanner can use the block
transfer instructions similarly to the PLC/5. This ladder example shows
this implementation. The data file elements N20:10- N20:17 contain
the configuration data for the NT8 as defined in previous examples.
