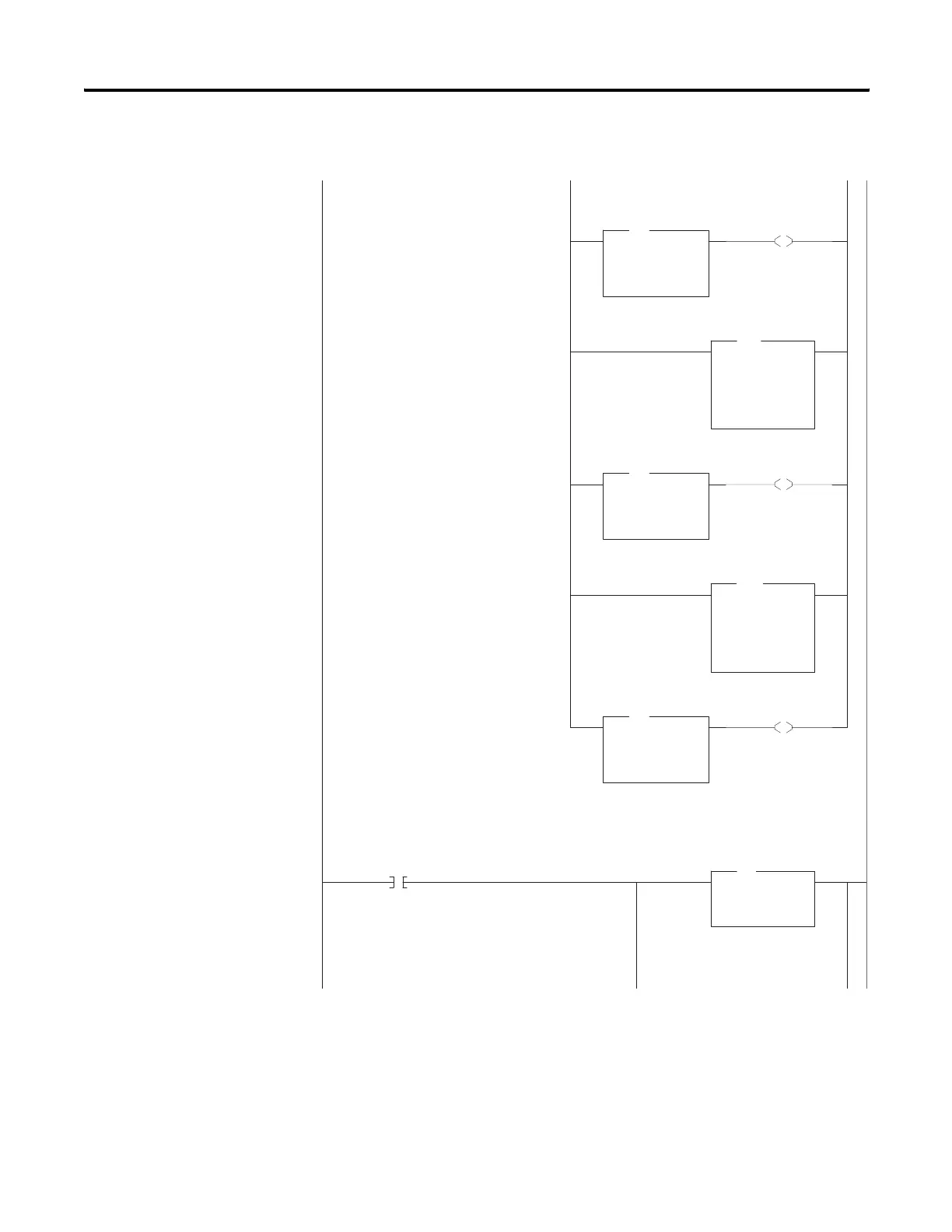

5-12 Programming Examples
NEQ
Not Equal
Source A N10:25
0<
Source B 0
0<
NEQ
NT8_CH5_STS_FLAGS
L
B3:7
5
NT8_CH5_ERROR
MVM
Masked Move
Source I:1.6
0<
Mask 0F000h
-4096<
Dest N10:26
0<
MVM
NT8_CH6_STS_FLAGS
NEQ
Not Equal
Source A N10:26
0<
Source B 0
0<
NEQ
NT8_CH6_STS_FLAGS
L
B3:7
6
NT8_CH6_ERROR
MVM
Masked Move
Source I:1.7
0<
Mask 0F000h
-4096<
Dest N10:27
0<
MVM
NT8_CH7_STS_FLAGS
NEQ
Not Equal
Source A N10:27
0<
Source B 0
0<
NEQ
NT8_CH7_STS_FLAGS
L
B3:7
7
NT8_CH7_ERROR
T11:1
DN
NT8_STS_CNF_TMR/DN
COP
Copy File
Source #N10:0
Dest #O:1.0
Length 8
COP
#NT8_CH_CNF
0007
After updating the error status registers and flags, copy the “regular” NT8 channel configuration words into the NT8
I/O image. Begin 7-second timer to wait for the NT8 to change its I/O image back to the regular channel configuration.
Again, the time required by the NT8 I/O image is dependent on the NT8 configuration.
To Next Page
