A-10 Module Specifications

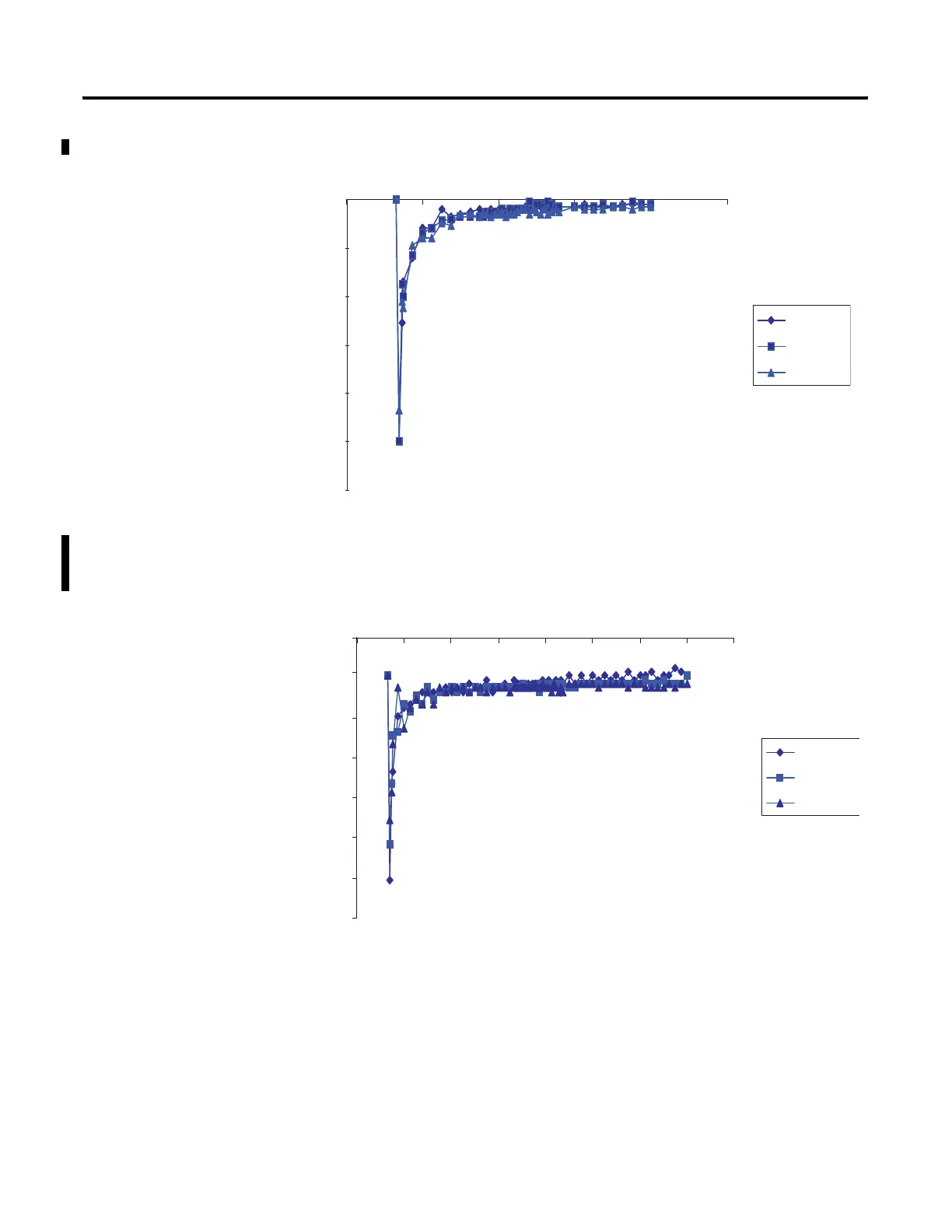

Thermocouple T Deviations Over Temperature
Thermocouple E Deviations Over Temperature
Degrees C TC Input
Degrees C Deviation
-400 -200 0 200 400 600
0
-2
-4
-6
-8
-10
-12
Delta 60˚C
Delta 25˚C
Delta 0˚C
Degrees C TC Input
Degrees C Deviation
-400 -200 0 200 400 600 800 1000 1200
1
0
-1
-2
-3
-4
-5
-6
Delta 60˚C
Delta 25˚C
Delta 0˚C
