8-8 Application Examples
1747-ASB module 2 controls the following I/O modules:
• 1746-OA8, 8-point AC output module
• 1746-IO12, 6-point input/output module
• 1746-IA16, 16-point AC input module

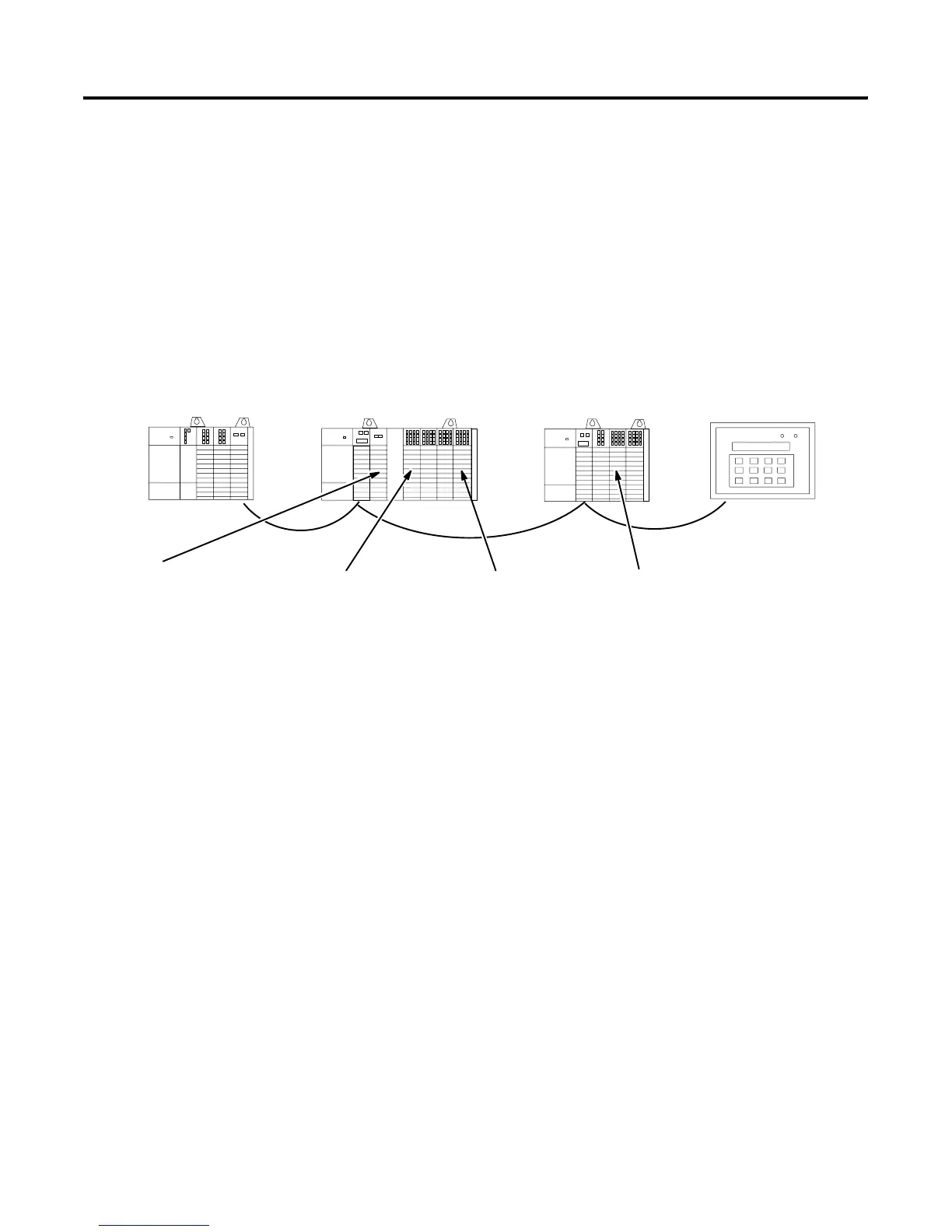

The application is illustrated below. When the switch is closed, bulbs
1 and 2 turn on and an analog signal is moved to analog module
output 1, which leads to the meter.
SLC 5/02 1746-OW8 1746-IA8 1747-SN ASB 1 17460NIO4I 1746-IV32 1746-OV32 1746-OB16 1746-OA16 ASB 2 1746-OA8 1746-IO12 1746-IA16 EMPTY
The meter is connected
to output 1.
The switch is connected
to input 17.
Bulb 2 is connected
to output 12.
Bulb 1 is connected
to output 4.
RediPANEL
012 3
01 234 56
012 3
