Allen-Bradley 1756 Series User Manual

Rockwell Automation Publication 1756-UM013B-EN-P - October 2019 89
Configure and Replace Safety Modules Chapter 5

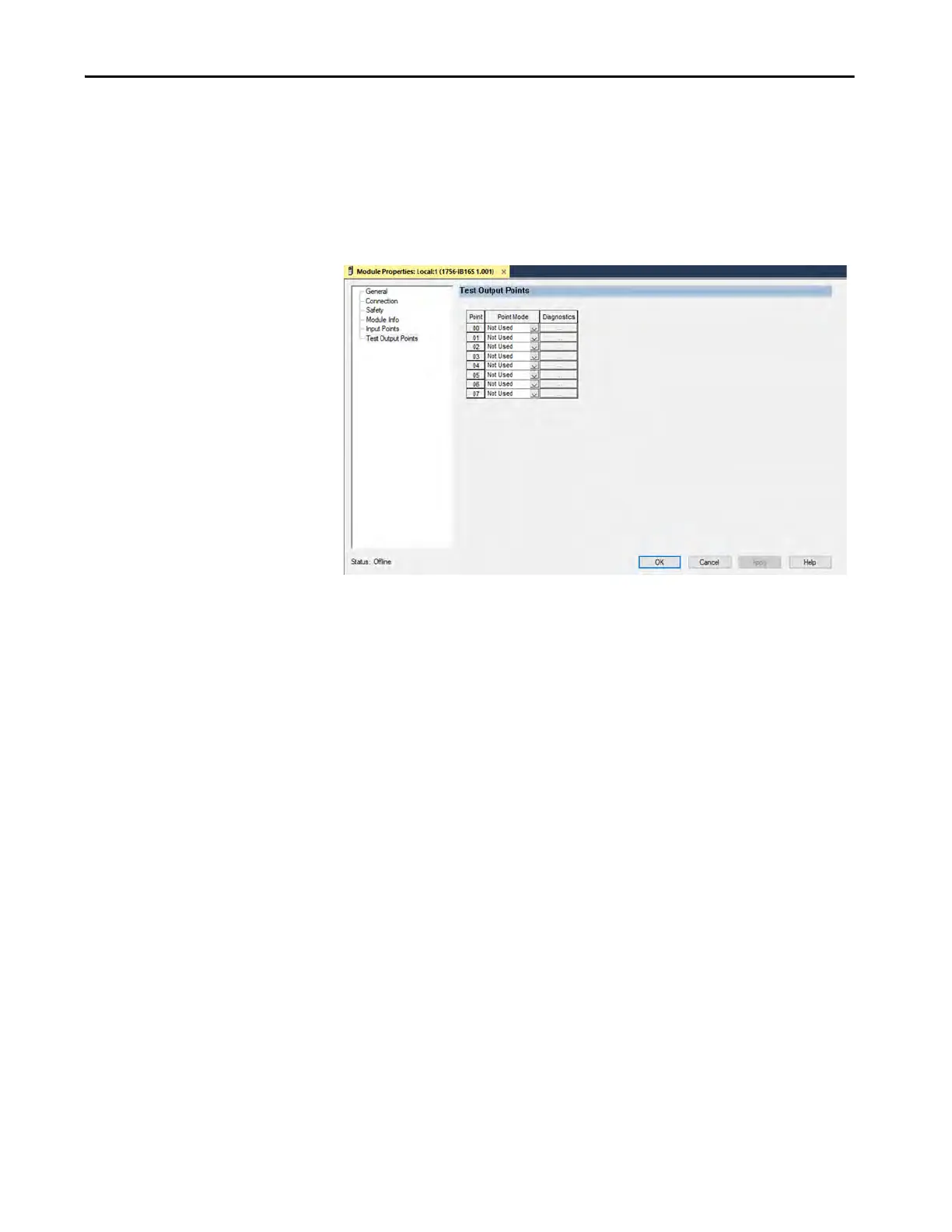

Test Output Points Category
The Test Output Points category is only available if you choose This Controller
for the Configured By parameter on the Module Definition dialog box.
You must configure each point to use it in a Safety application. The outputs are
disabled by default.
Point Mode
Determines the mode of the test output for the point.
• Not Used - Test output is not used.
• Pulse Test - Use the test output point as a pulse test source.
• Power Supply - Use the test output as a power supply.
