Chapter 5 Configure and Replace Safety Modules
Create a New Module
The project must be offline to add safety modules to it.
You can create a new local or remote safety module. Local I/O modules are
installed in the same system as the GuardLogix® 5580 controllers. Remote I/O
modules are installed in a system that includes a 1756 ControlLogix
EtherNet/IP™ adapter that connects to an EtherNet/IP network.
New Local Safety Module
To create a new local safety I/O module, complete these steps.
1. Create a Logix Designer application project.

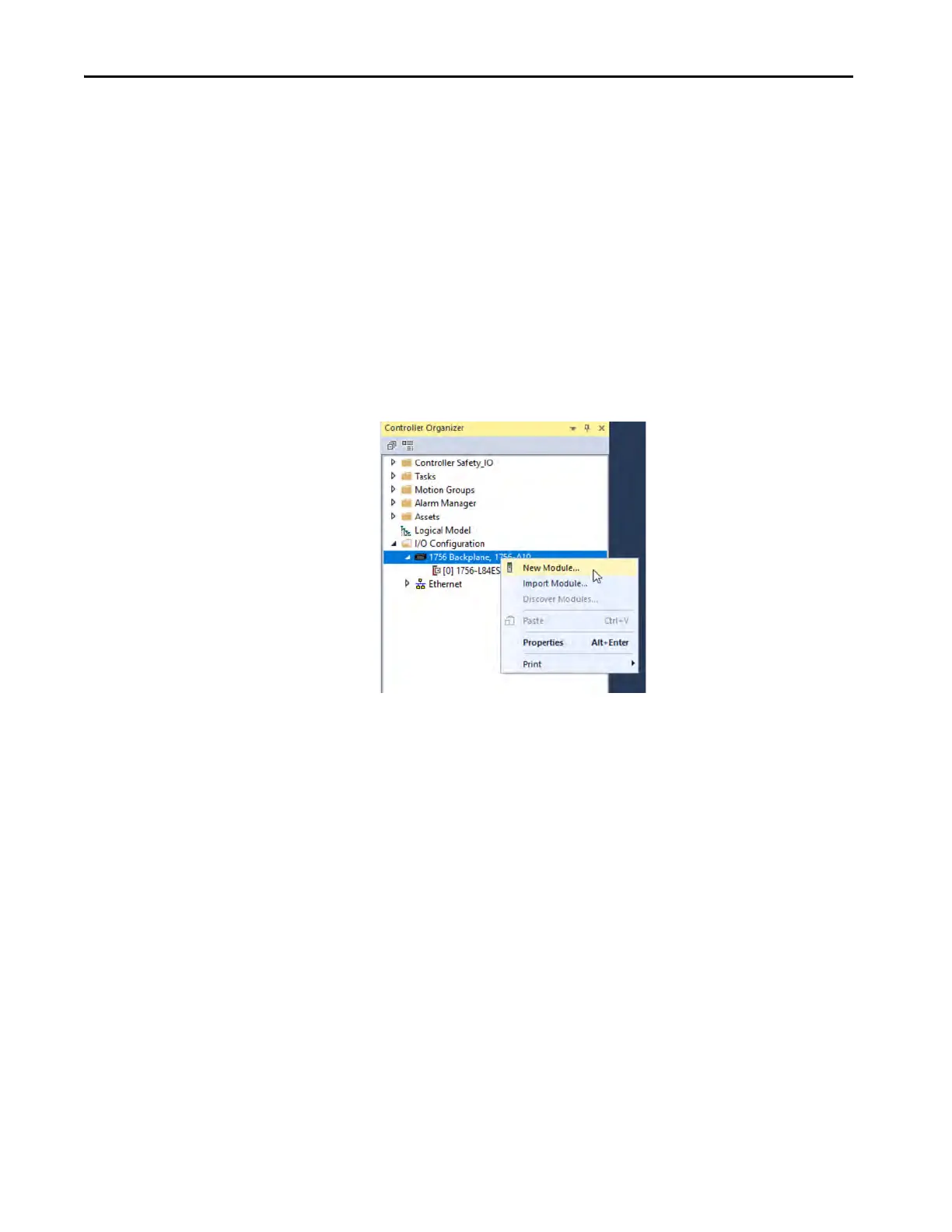

2. Right-click the 1756 Backplane and choose New Module.
