110 Rockwell Automation Publication 1756-UM013B-EN-P - October 2019
Appendix A Troubleshoot Your Module
Logix Designer Application Tag Editor

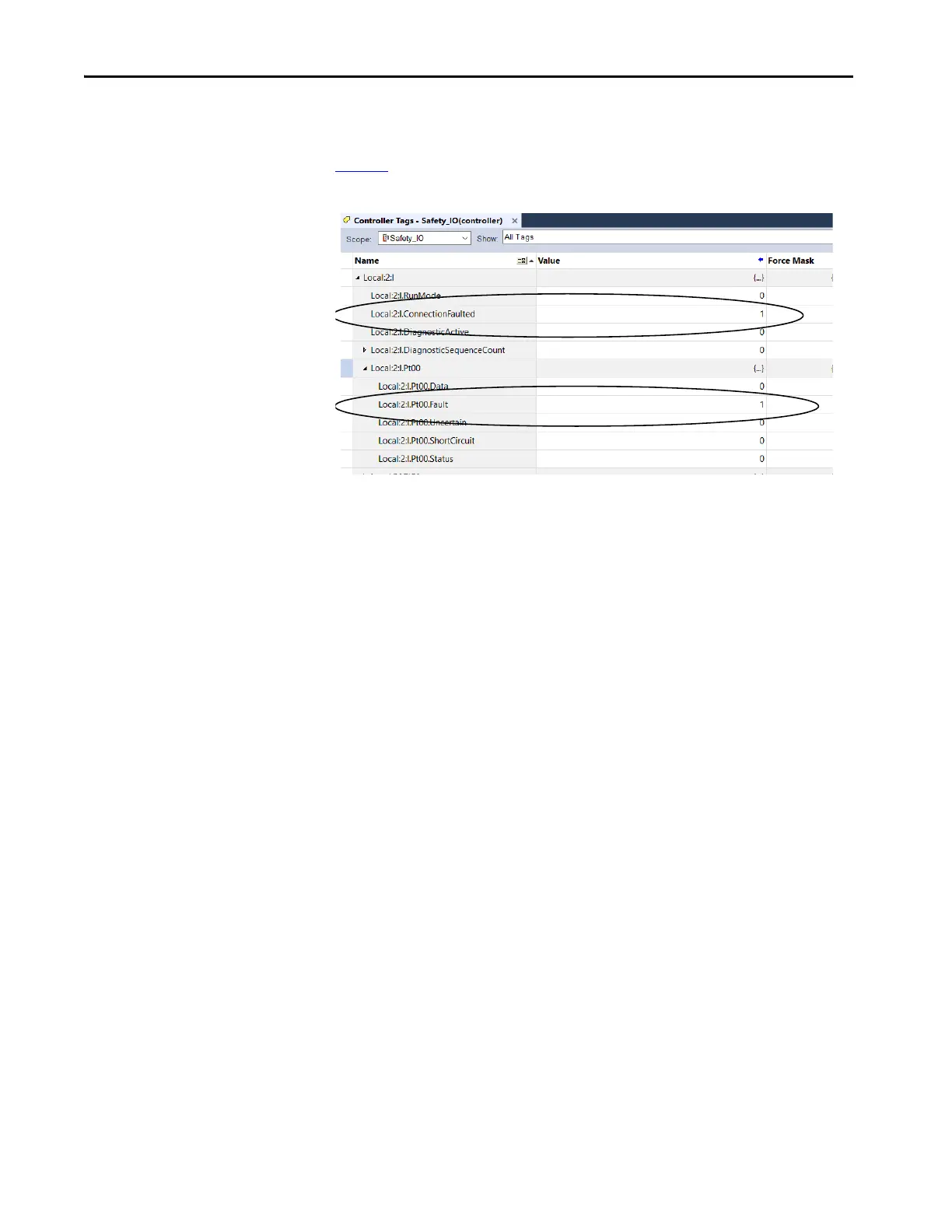

Figure 7 show how fault conditions are indicated in the controller tags.
Figure 7 - Fault Indication in Controller Tags
