428 Recipe and Data Logging
See step 2, “Create a RCP File” on page 428 for the recipe file procedure.
The RCP instruction uses the following parameters:
• Recipe File Number - this is the file number that identifies the
custom list of addresses associated with a recipe.
• Recipe Number - specifies the number of the recipe to use. If the
recipe number is invalid, a user fault (code 0042) is generated.
• File Operation - identifies whether the operation is a Load from the
database or a Store to the database.
When executed on a True rung, the RCP instruction transfers data
between the recipe database and the specified data locations.
Addressing Modes and File Types are shown in the following table:
Recipe File and Programming Example
Configuring the RCP file

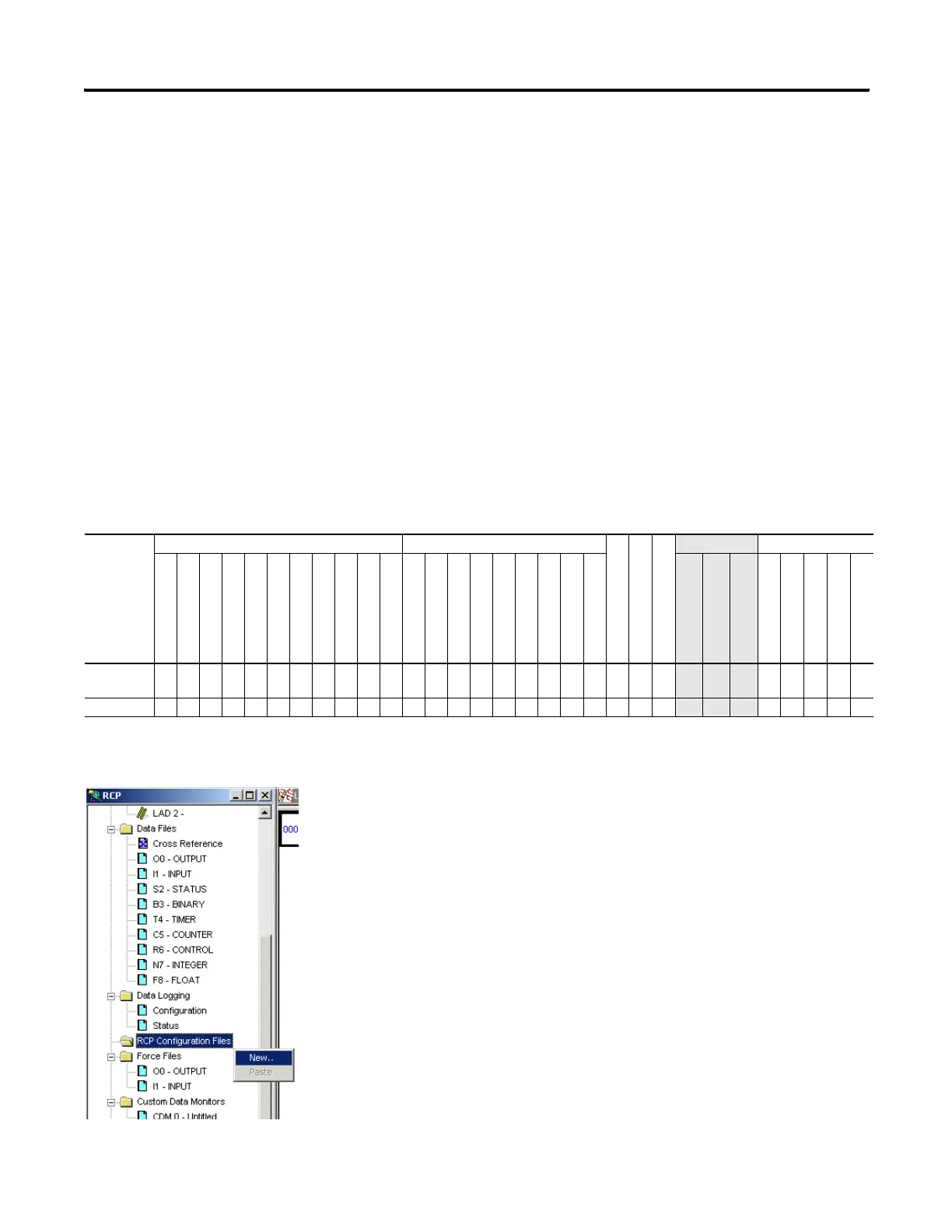

1. Using RSLogix 500, locate and select RCP Configuration Files.
Right-click and select New.
2. Create a RCP File.
RCP Instruction Valid Addressing Modes and File Types
For definitions of the terms used in this table see Using the Instruction Descriptions on page 4-2.
Parameter
Data Files Function Files
PLS - Programmable L/S CS - Comms IOS - I/O
Address Mode Address Level
O I S B T, C, R N F ST L MG, PD RI/RIX RTC HSC PTO, PWM STI EII BHI MMI DAT TPI Immediate Direct Indirect Bit Word Long Word Floating Point Element
Recipe
Number
•
File •••• • • •
