Publication 1763-RM001C-EN-P - October 2009

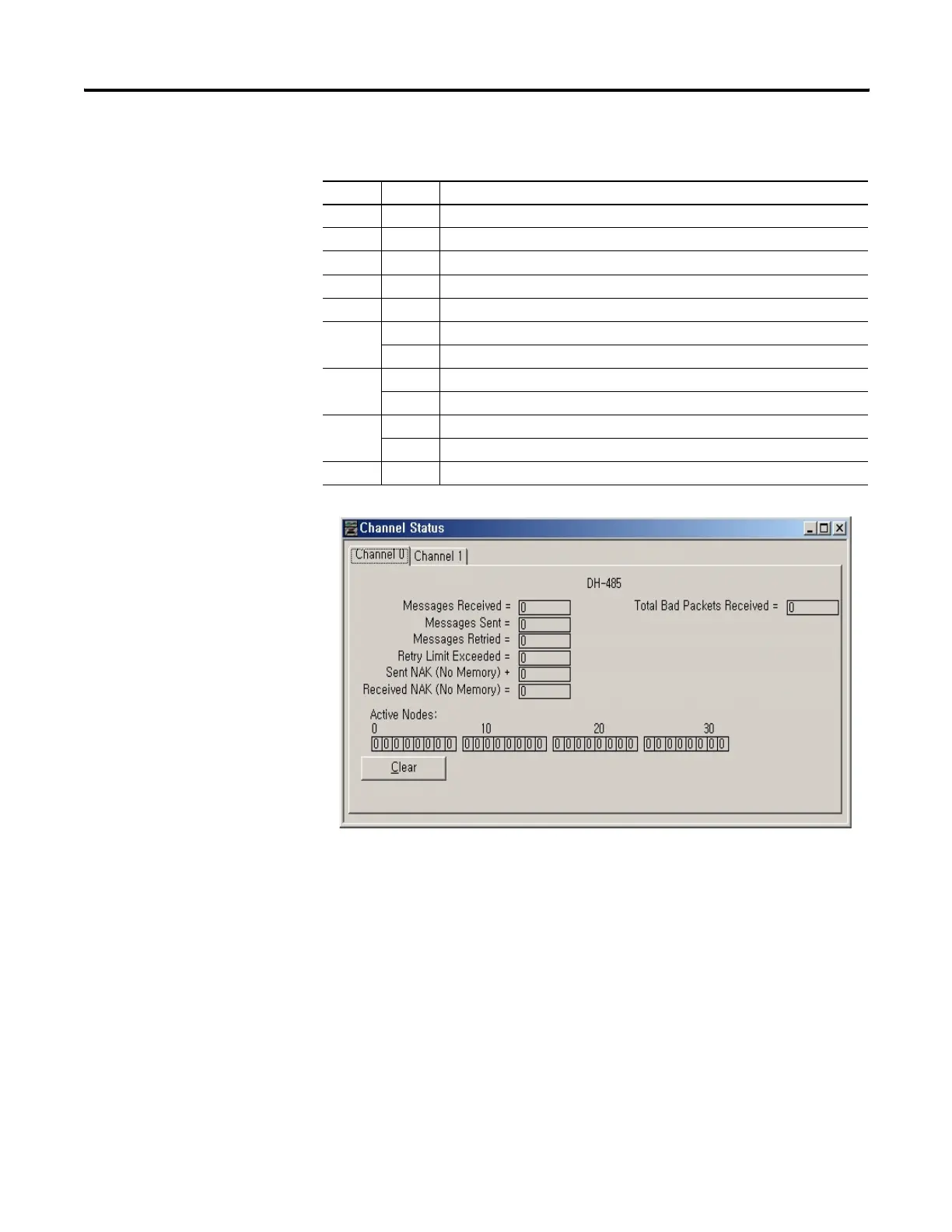

60 Function Files

DH-485 Diagnostic Counters Block

Word Bit Description

6 - Diagnostic Counters Category Identifier Code (always 2)

7 - Length (always 30)

8 - Format Code (always 0)

9 - Total Message Packets Received

10 - Total Message Packets Sent

11 0 to 7 Message Packet Retries

8 to 15 Retry Limit Exceeded (Non-Delivery)

12 0 to 7 NAK – No Memories Sent

8 to 15 NAK – No Memories Received

13 0 to 7 Total Bad Message Packets Received

8 to 15 Reserved

14 to 22 - Reserved
