Publication 1763-RM001C-EN-P - October 2009

Function Files 61

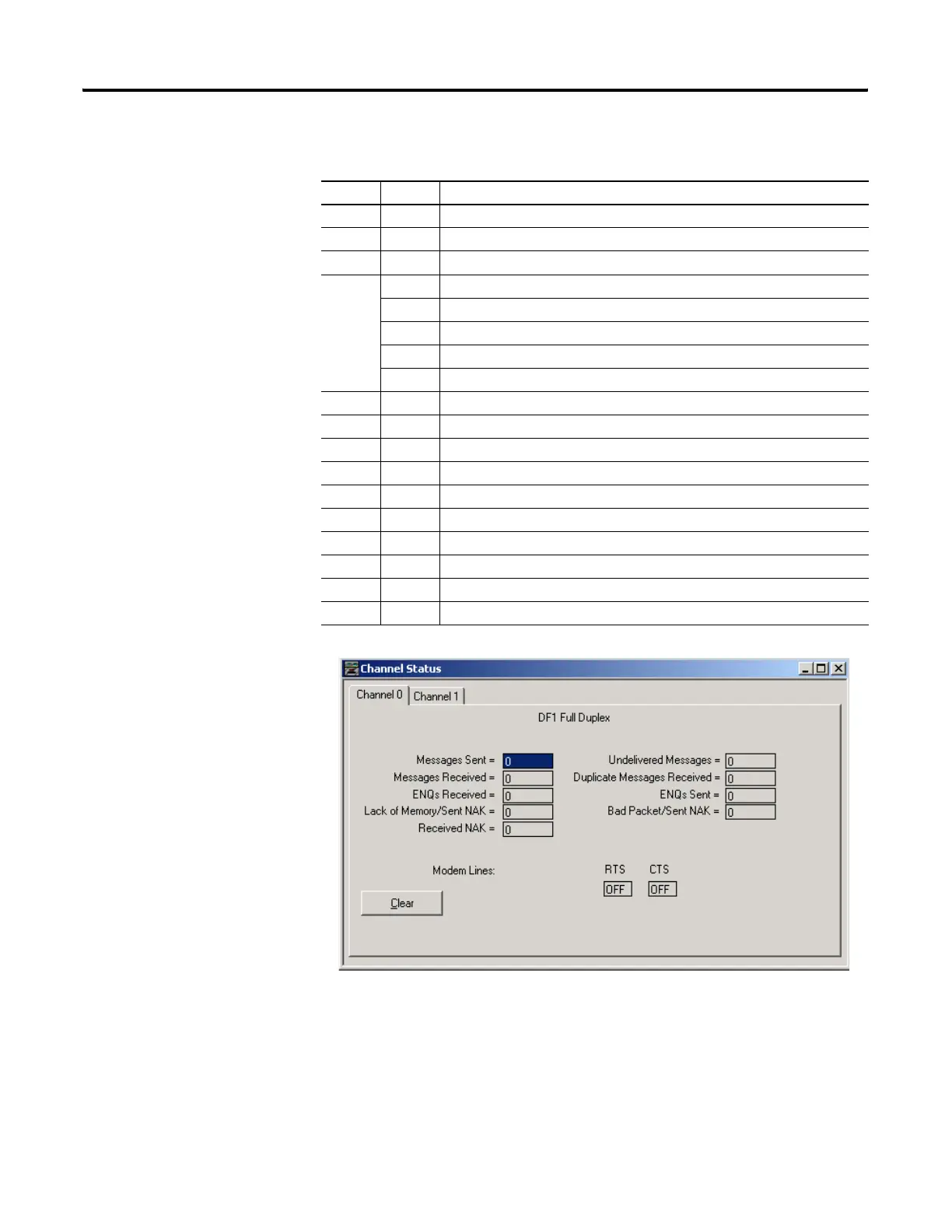

DF1 Full-Duplex Diagnostic Counters Block

Word Bit Description

6 - Diagnostic Counters Category Identifier Code (always 2)

7 - Length (always 30)

8 - Format Code (always 1)

9 0 CTS

1RTS

2 Reserved

3 Reserved

4 to 15 Reserved

10 - Total Message Packets Sent

11 - Total Message Packets Received

12 - Undelivered Message Packets

13 - ENQuiry Packets Sent

14 - NAK Packets Received

15 - ENQuiry Packets Received

16 - Bad Message Packets Received and NAKed

17 - No Buffer Space and NAK’ed

18 - Duplicate Message Packets Received

19 to 22 - Reserved
