Allen-Bradley Guardmaster 440C-CR30 User Manual

18 Rockwell Automation Publication CC-QS038A-EN-P - August 2015
Chapter 2 System Validation

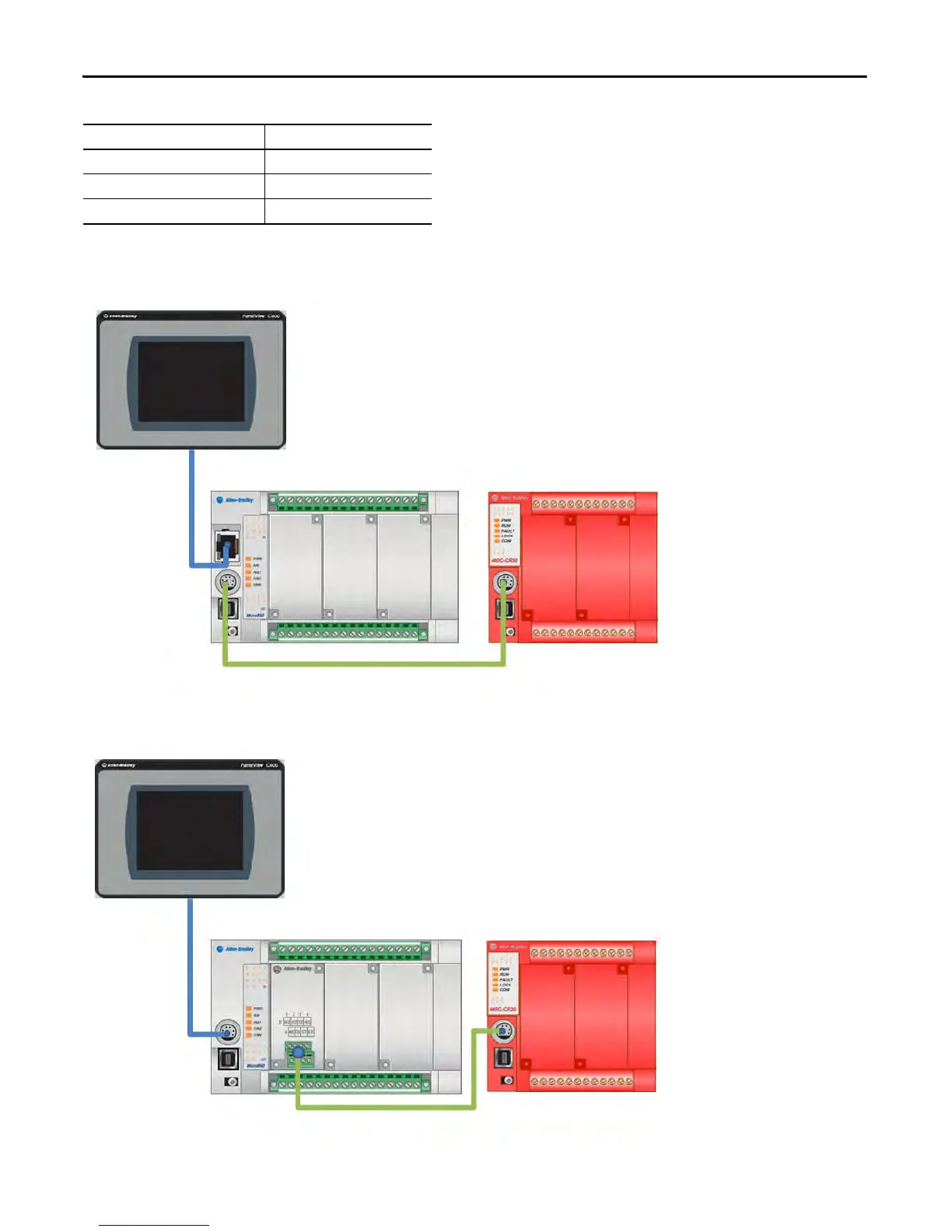

Figure 3 - Connection for Micro850 and 440C-CR30 Safety Relay
Figure 4 - Connection for Micro830 and 440C-CR30 Safety Relay
440C-CR30 Safety Relay Connector Micro800 Controller Terminal
Pin 7 Rx
Pin 4 Tx
Pin 2 G
IP Address: 192.168.1.2
1761-CBL-HM02
440C-CR30 Safety Relay
Ethernet
Cable
Micro850
IP Address: 192.168.1.3
440C-CR30 Safety Relay
Modified 1761-CBL-HM02
1761-CBL-PM02
Micro830
