22 Rockwell Automation Publication CC-QS038A-EN-P - August 2015
Chapter 2 System Validation
Connect Your Devices
There are three network layouts that are identified in Review the System Overview on page 17. In this Quick Start, we
picked the Connection with CIP-Ethernet for our application example.

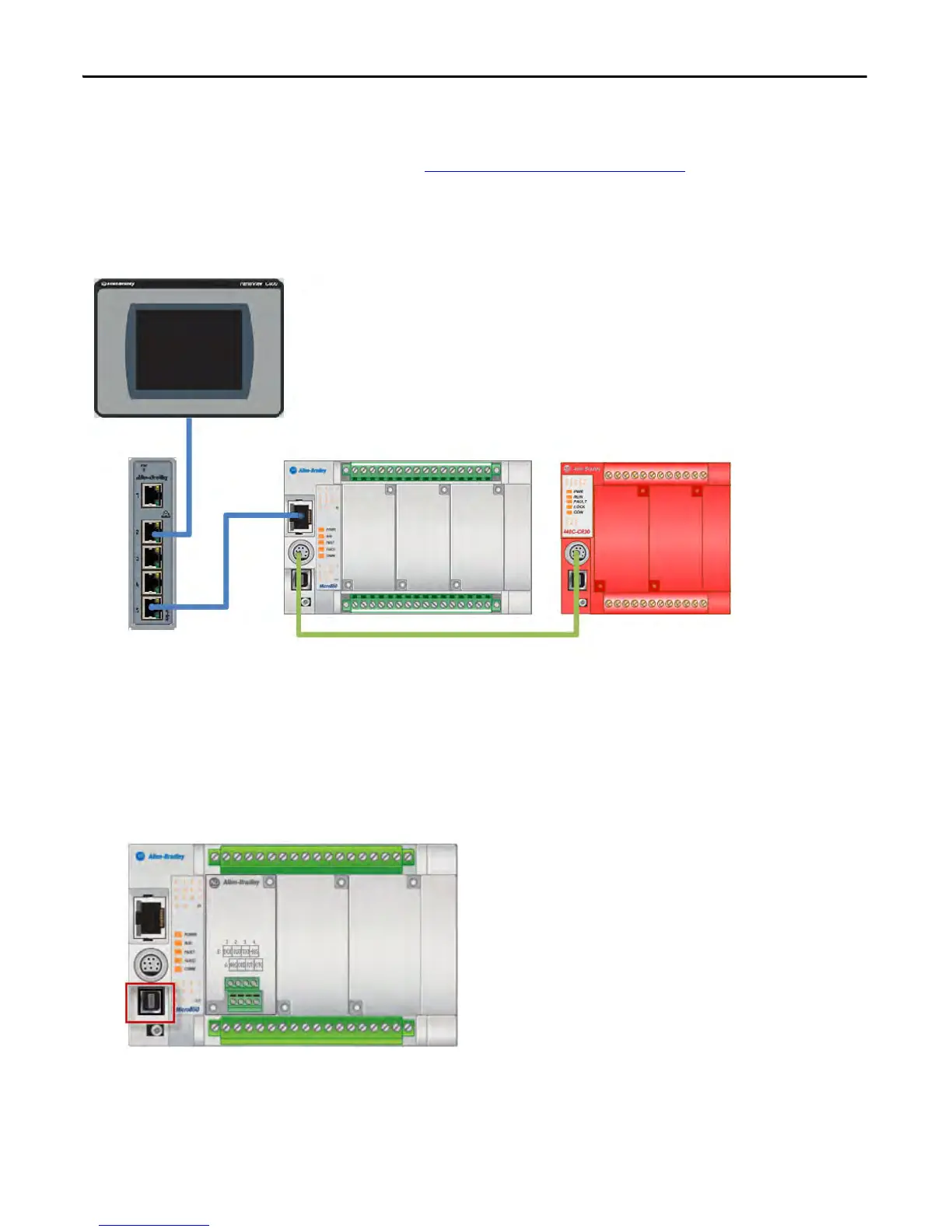

Figure 7 - Device Connections
Download Your Program to the Controller
To download your program to the controller, follow these steps.
1. Connect your personal computer to the controller (use either an Ethernet or USB connection).
If you are prompted to install any drivers, install the recommended drivers.
IP Address: 192.168.1.2
1761-CBL-HM02
440C-CR30 Safety Relay
Ethernet
Cable
IP Address: 192.168.1.3
To Next Page
