32 Rockwell Automation Publication CC-QS038A-EN-P - August 2015
Chapter 2 System Validation
Understand the Fault Screens
There are two types of fault screens. A generic fault screen that shows the overall fault status, and a minor fault screen that
reports the minor fault details.
This generic fault screen reports the type of major fault and indicates which terminal experienced a minor fault. When
there is a major fault, the details of the fault appear on this screen.

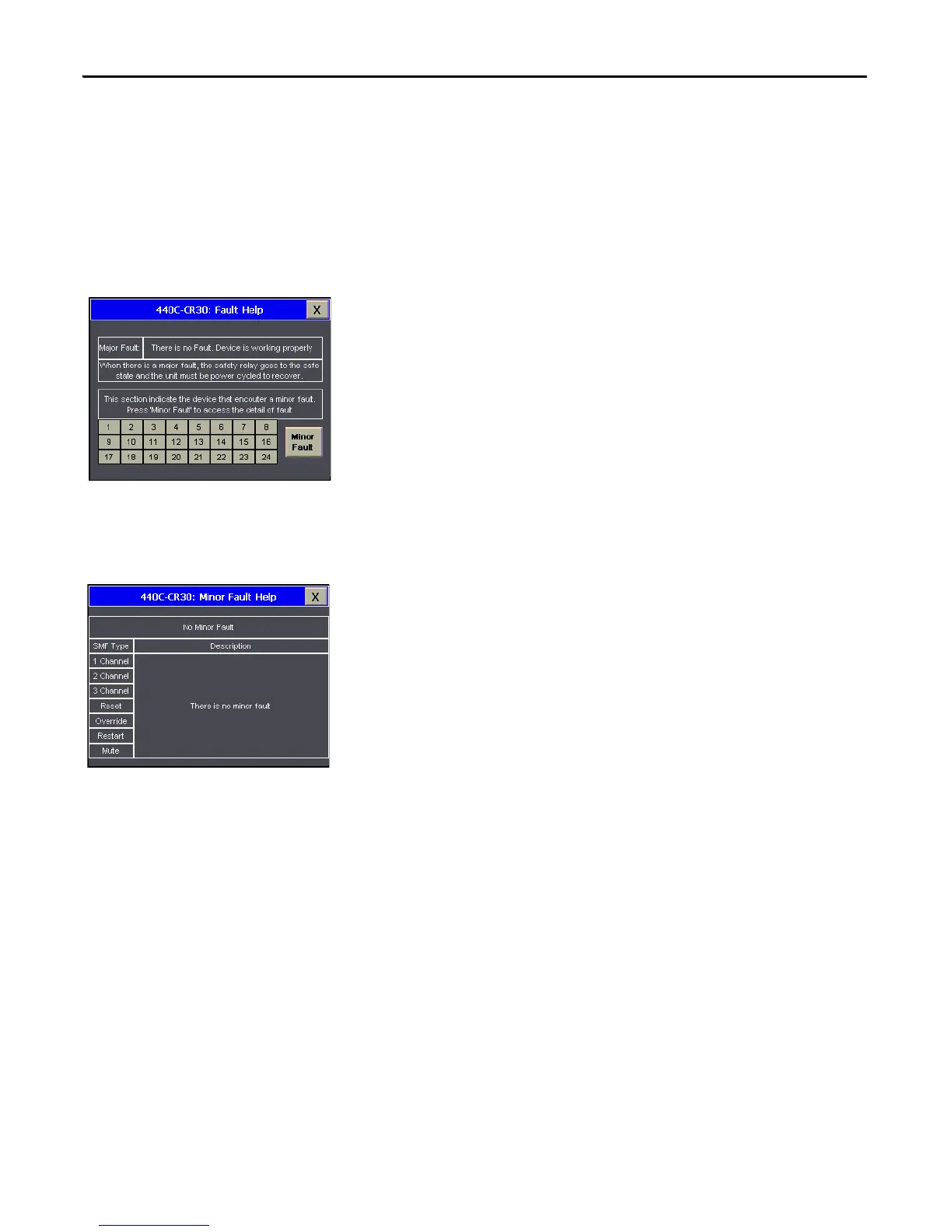

Figure 8 - Generic Fault Screen
When there is a minor fault at a particular terminal, the number that corresponds to the respective terminal is red. To access
the minor fault screen, press the Minor Fault button.
Figure 9 - Minor Fault Screen
