System Validation Chapter 2
Review the System Overview
The PanelView 800 Graphic Terminal can be connected to the Micro800 controller with a CIP serial or CIP-on-Ethernet
connection:
• For a CIP serial connection, use a 1761-CBL-PM02 cable to connect the PanelView 800 terminal to the embedded
serial port of the Micro800 controller.
• For a CIP-on-Ethernet connection, connect the PanelView 800 terminal to the Stratix Ethernet switch. Then use the
Ethernet patch cords to connect the Stratix Ethernet switch to the embedded Ethernet port of the Micro800
controller.
• For a CIP-on-Ethernet connection to a Micro850 controller, you can connect the terminal directly to the Ethernet
port on the Micro850 controller by using an Ethernet cable.
All connection methods are explained in this manual, but choose only one method for your project.
The 440C-CR30 safety relay can be connected directly to the embedded serial port of the Micro800. The safety relay can
also be connected to a serial plug-in module when the embedded serial port is already configured to communicate with a
PanelView 800 terminal.

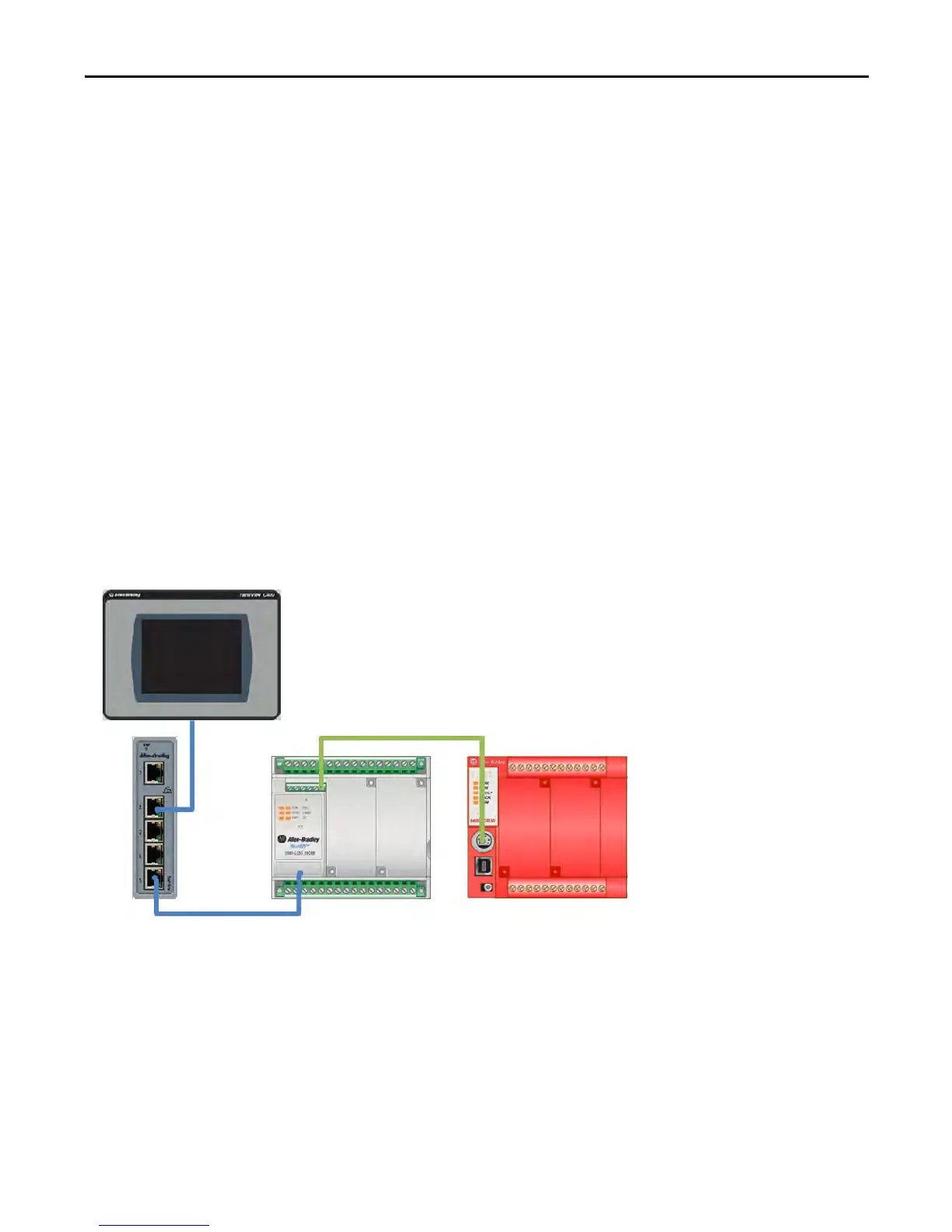

Figure 2 - Connection for Micro820 and 440C-CR30 Safety Relay With a Modified 1761-CBL-HM02 Cable
To modify the 1761-CBL-HM02 cable, follow these steps.
1. Cut the 1761-CBL-HM02 cable to the required length.
2. Identify the wire that is connected to pins 2, 4, and 7 of the PS/2™ connector.
3. Connect the wire to the respective terminal according to this table.
IP Address: 192.168.1.2
Modified 1761-CBL-HM02
Micro820
IP Address: 192.168.1.3
440C-CR30 Safety Relay
Ethernet
Cable
