Chapter 2 System Validation
5. At any time, press X in the top-right corner to return to the previous screen and press the Next page button to
configure the terminals on the next page.
6. When you arrived at the last configuration page, press the Config Done button.
The IO_Sts page button appears.

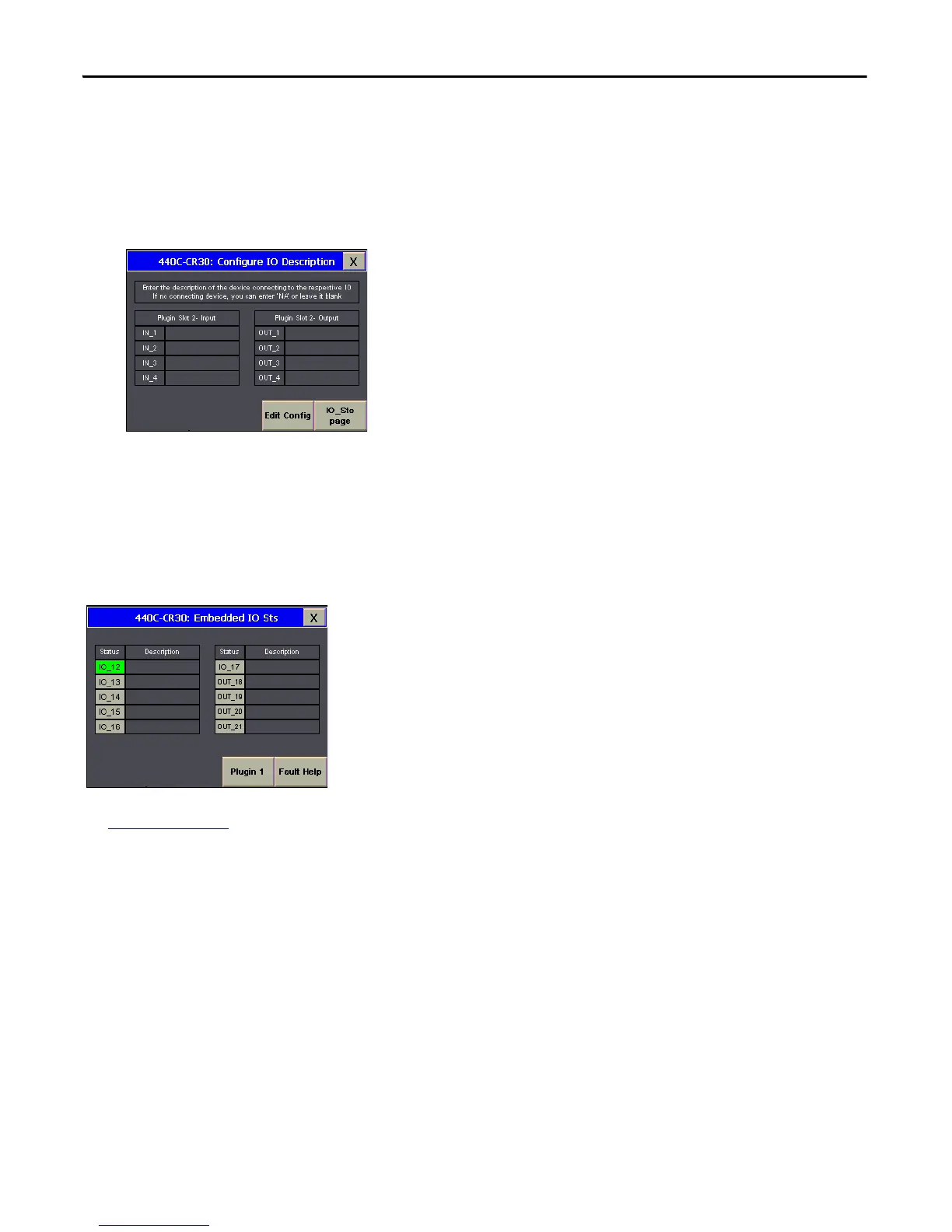

7. To go to the Status screen, press the IO_Sts page button.
8. If you want to change the names again, press the Edit Config button.
Understand the Status Screen
There are a total of four status screens. They represent terminal status for embedded terminals 0…21 and the plug-in
module that is attached to plug-in slot 1 and slot 2.
See Table 1 on p a g e 31
for a description of the status indicators.
