Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 233
Configure and Start the Kinetix 5700 Drive System Chapter 6

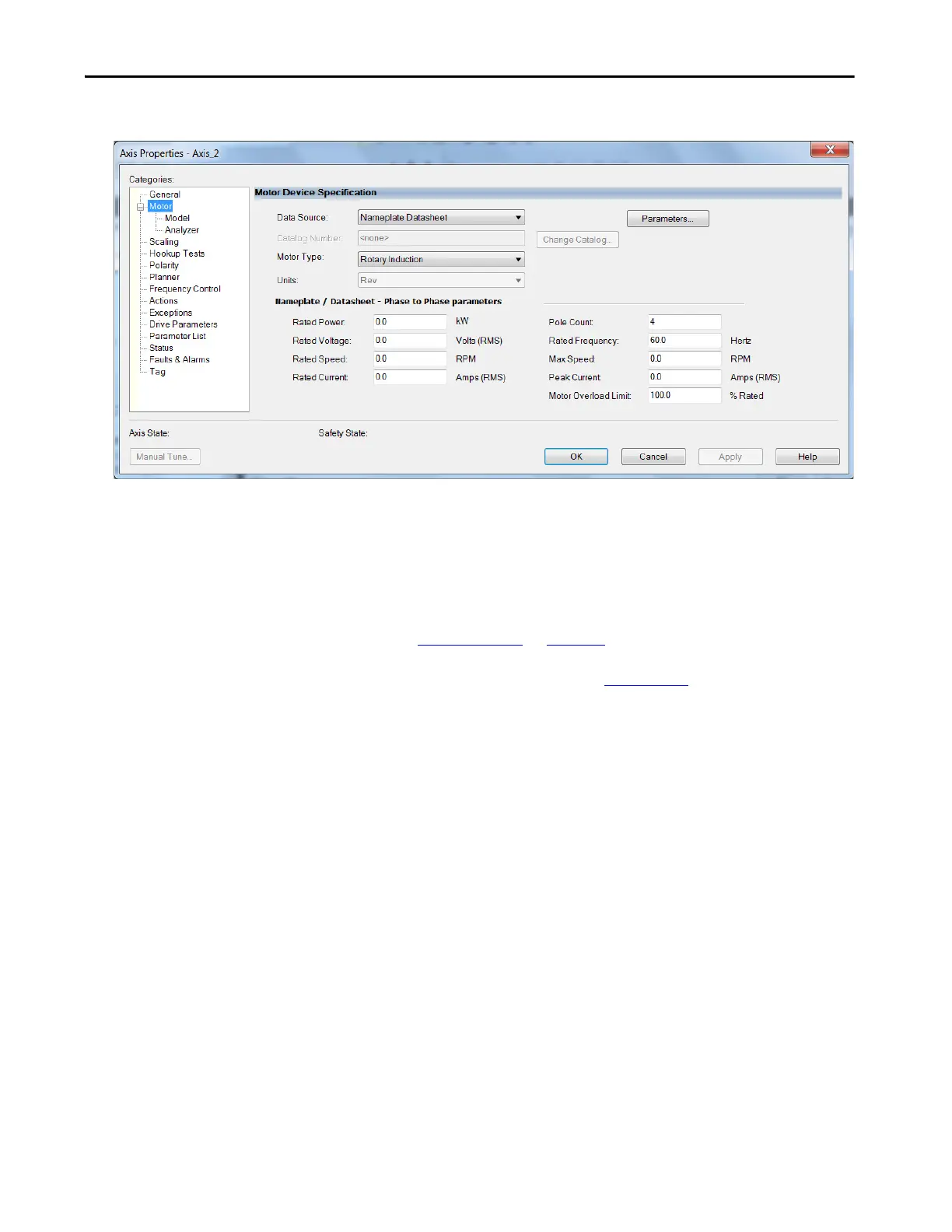

7. Select the Motor category.
8. From the Data Source pull-down menu, choose Nameplate Datasheet.
This is the default setting.
9. From the Motor Type pull-down menu, choose Rotary Induction.
10. From the motor nameplate or datasheet, enter the phase-to-phase values
for your motor.
See Motor Category
on page 420 for a motor performance datasheet
example. Also, see Motor Nameplate Datasheet Entry for Custom
Motor Applications, publication 2198-AT002
.
11. Click Apply.
