Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 379

Interconnect Diagrams Appendix A

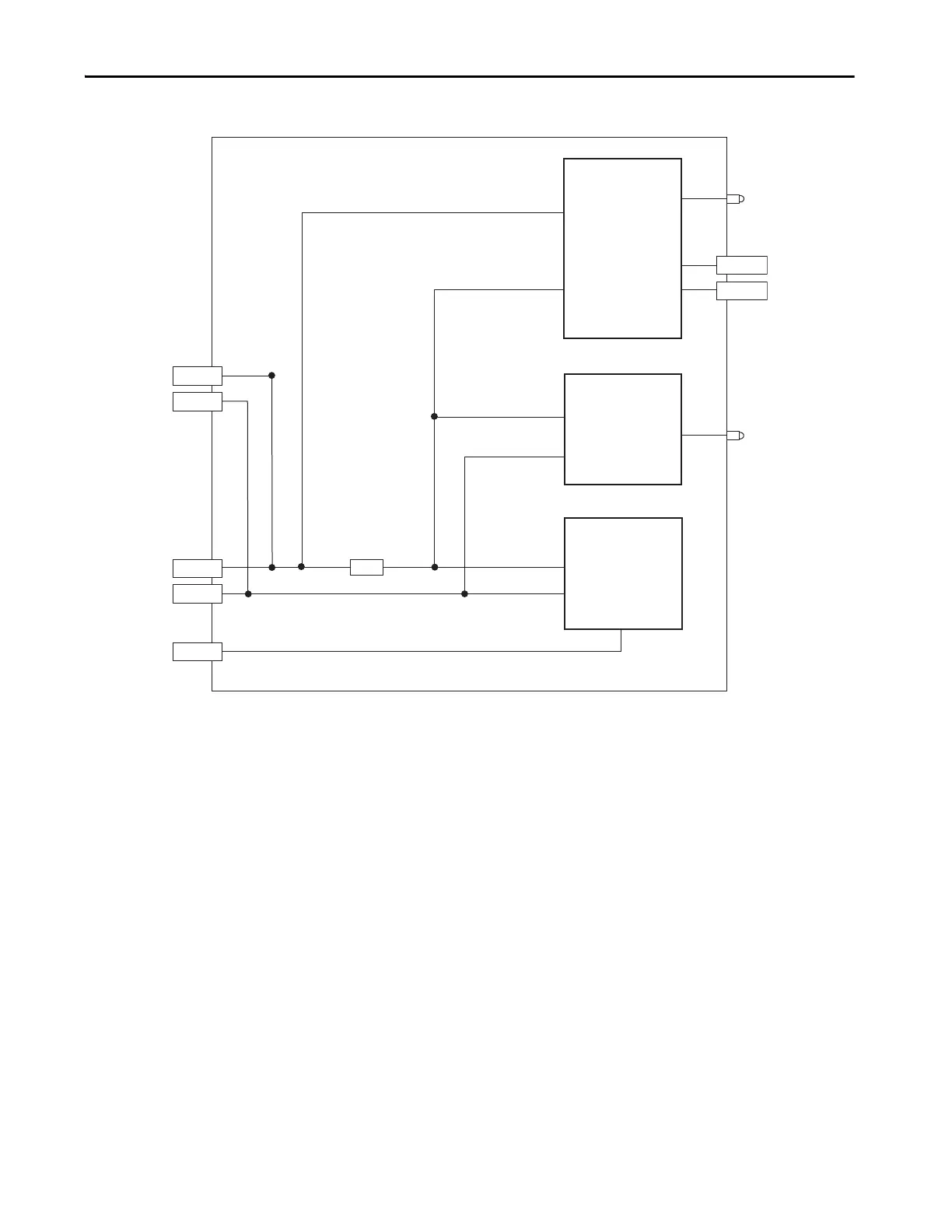

Figure 205 - DC-bus Conditioner Module Block Diagram

DC+

DC–

DC+

DC–

Chassis

DC Bus Input

Link Connector

DC Bus Output

Lug Connector

Module Status

Status Indicator

DC-bus Status

Status Indicator

Module Status

(MS) Connector

Fuse Detection and

Over Temperature

Protection

DC-bus Detection

Fuse

Conditioning Circuit

Default Chapter3
