Publication 1761-UM006A-EN-P - February 2001
4-2 ENI Configuration (Node 248 to 254)
COM Port Settings

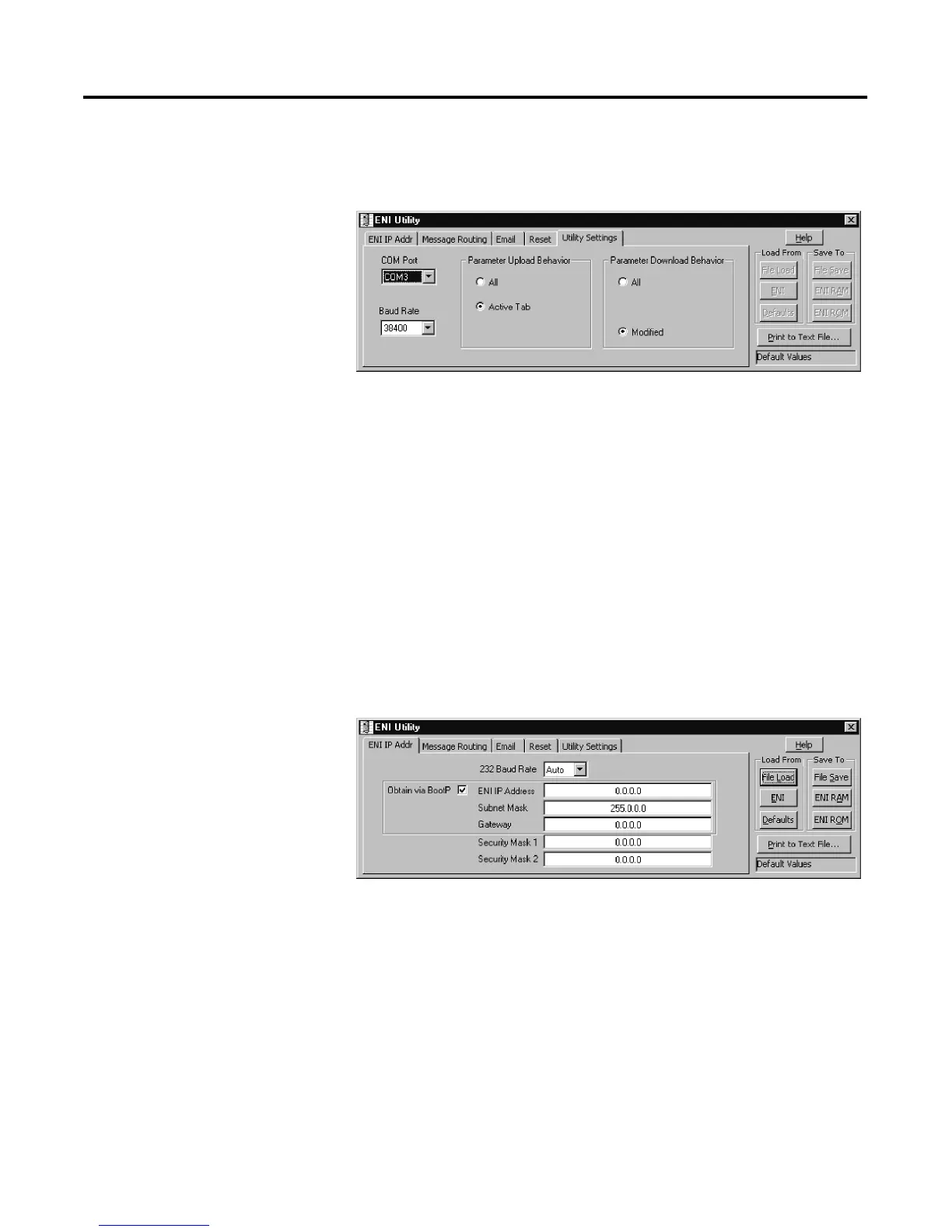

Use the Utility Settings screen to set the following:
• COM Port - The PC’s RS-232 port that the communications cable
is plugged into.
• Baud Rate - Select a baud rate or choose Autobaud. See page
4-15 for more information.
• Parameter Upload Behavior and Parameter Download Behavior
- This setting controls which parameters will be saved or loaded
when you use the Load From or Save To buttons.
RS-232 Baud Rate and TCP/IP Parameters
Use the ENI IP Addr screen to set the following:
• 232 Baud Rate - Select a baud rate or choose Autobaud. See
page 4-15 for more information.
• TCP/IP Parameters - See page 4-12 for more information on
valid addresses.
