MicroLogix™ Analog Input/Output Module 7
Publication 1762-IN005A-US-P
System Assembly

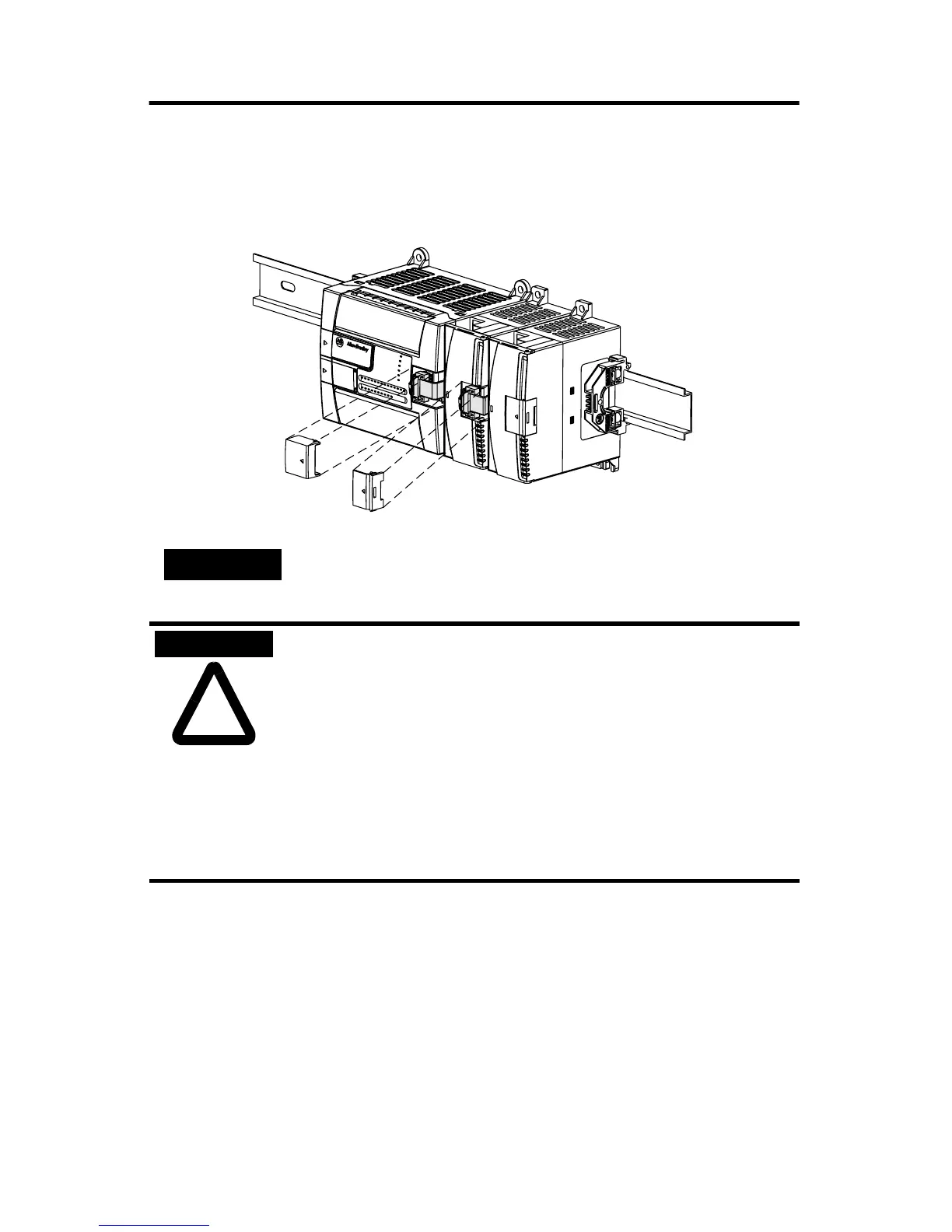

The expansion I/O module is attached to the controller or another I/O module by
means of a ribbon cable after mounting as shown below.
NOTE
Use the pull loop on the connector to disconnect modules. Do
not pull on the ribbon cable.
!
WARNING
EXPLOSION HAZARD
• In Class I, Division 2 applications, the bus connector must
be fully seated and the bus connector cover must be
snapped in place.
• In Class I, Division 2 applications, all modules must be
mounted in direct contact with each other as shown on
page 6. If DIN rail mounting is used, an end stop must be
installed ahead of the controller and after the last 1762 I/O
module.
