Configuring I/O Modules
Most I/O modules have configuration data associated with them. This
configuration data can be set manually. For a detailed description of
the configuration data supported for different modules, refer to
Appendix B.
The configuration you select is transferred to the adapter with the
PROFIBUS Set_parameter service. (Set_parameter service is described
in chapter 4.)
Note: Download of new configuration data is only possible in the
offline mode.
Note: If you added modules without configuration data, the only
parameter you can edit is Extended diagnostics. All other parameters
retain their default settings. (Refer to Appendix B for default settings.)
To configure I/O modules, click on the Parameter Data button in the
Slave Configuration window.

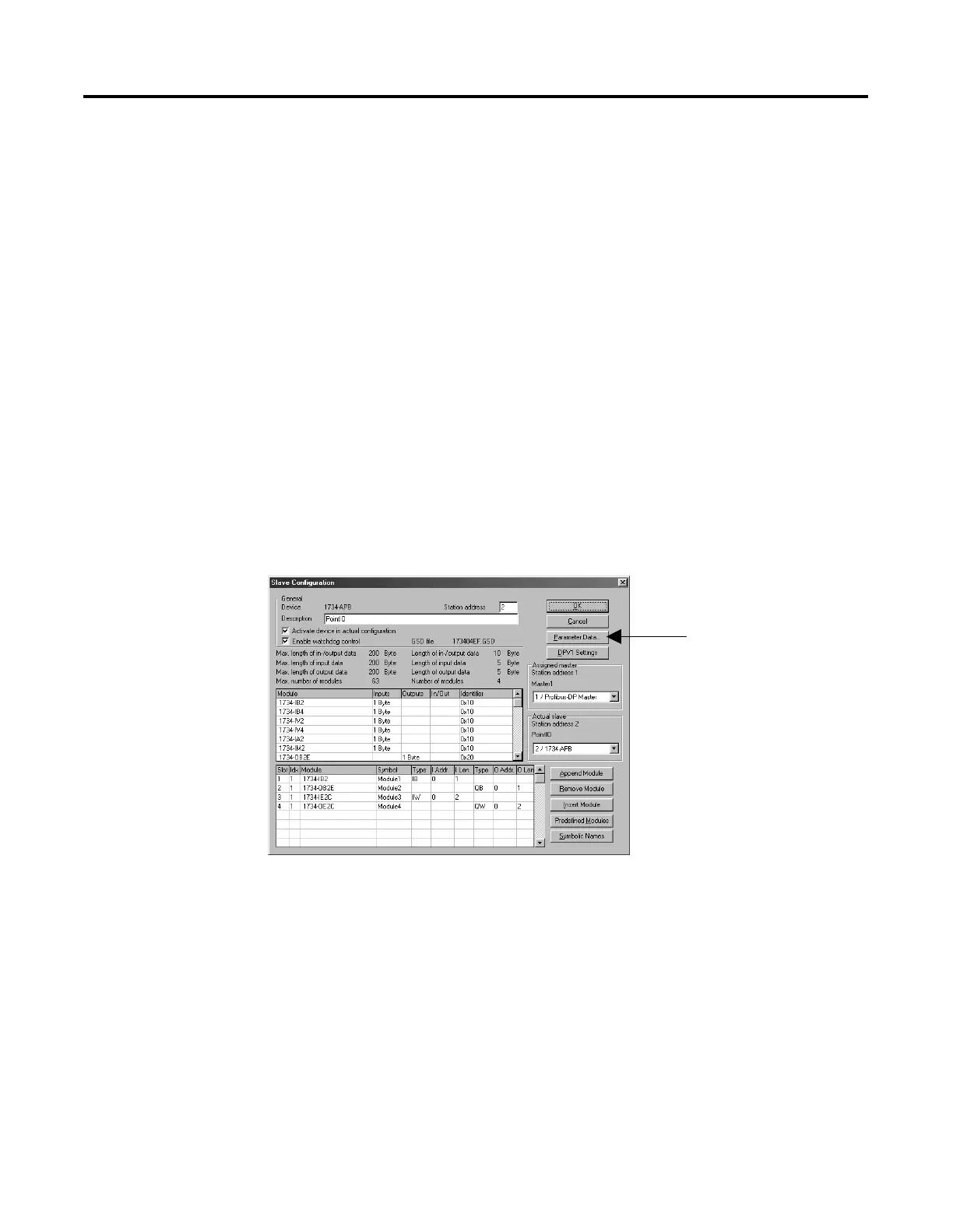

Click on the “Parameter Data”
button to open the Parameter
Data window.
