Rockwell Automation Publication 750-IN001O-EN-P - October 2014 107
Lift and Mount the Drive Chapter 3

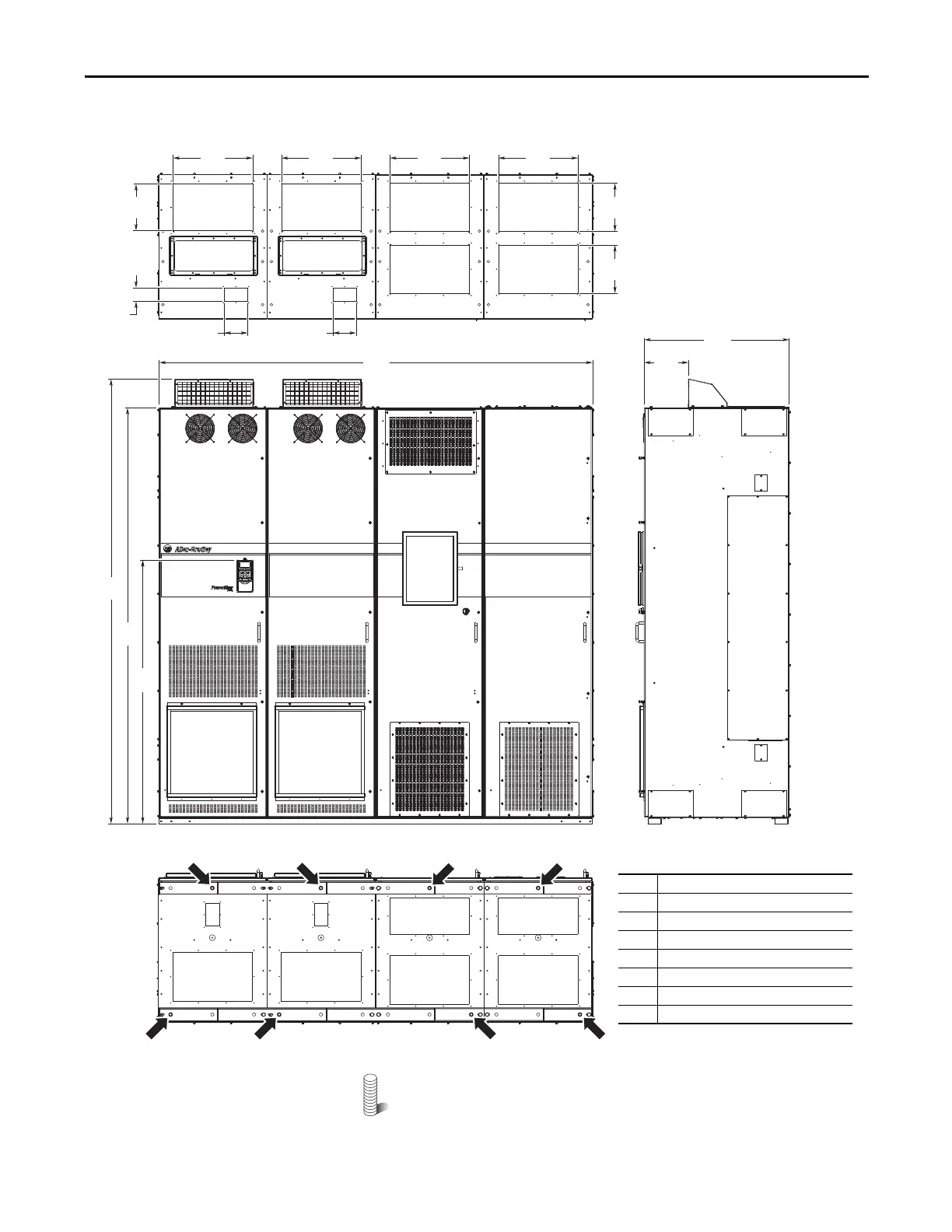

Figure 68 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 9
Enclosure Code L, P, W - 800 mm Deep Drive with Cabinet Options Bay and Wiring Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
➊➊
➋
2400
(94.5)
440
(17.3)
➊➊
➋
➐
➊➊➊➊
440
(17.3)
800
(31.5)
240
(9.4)
440
(17.3)
➊
266
(10.5)
266
(10.5)
127
(5.0)
2453
(96.6)
2300
(90.6)
➍
➏
1464
(57.6)
➌
➊
➋
440
(17.3)
78
(3.1)
➊
➋
268
(10.5)
127
(5.0)
➎
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
➌ Optional exhaust hood.
➍ Optional HIM.
➎ Option bay disconnect switch access door.
➏ Interlock override switch.
➐ Recommended eight-hole anchoring.
BOTTOM
TOP
