Chapter 3 Lift and Mount the Drive

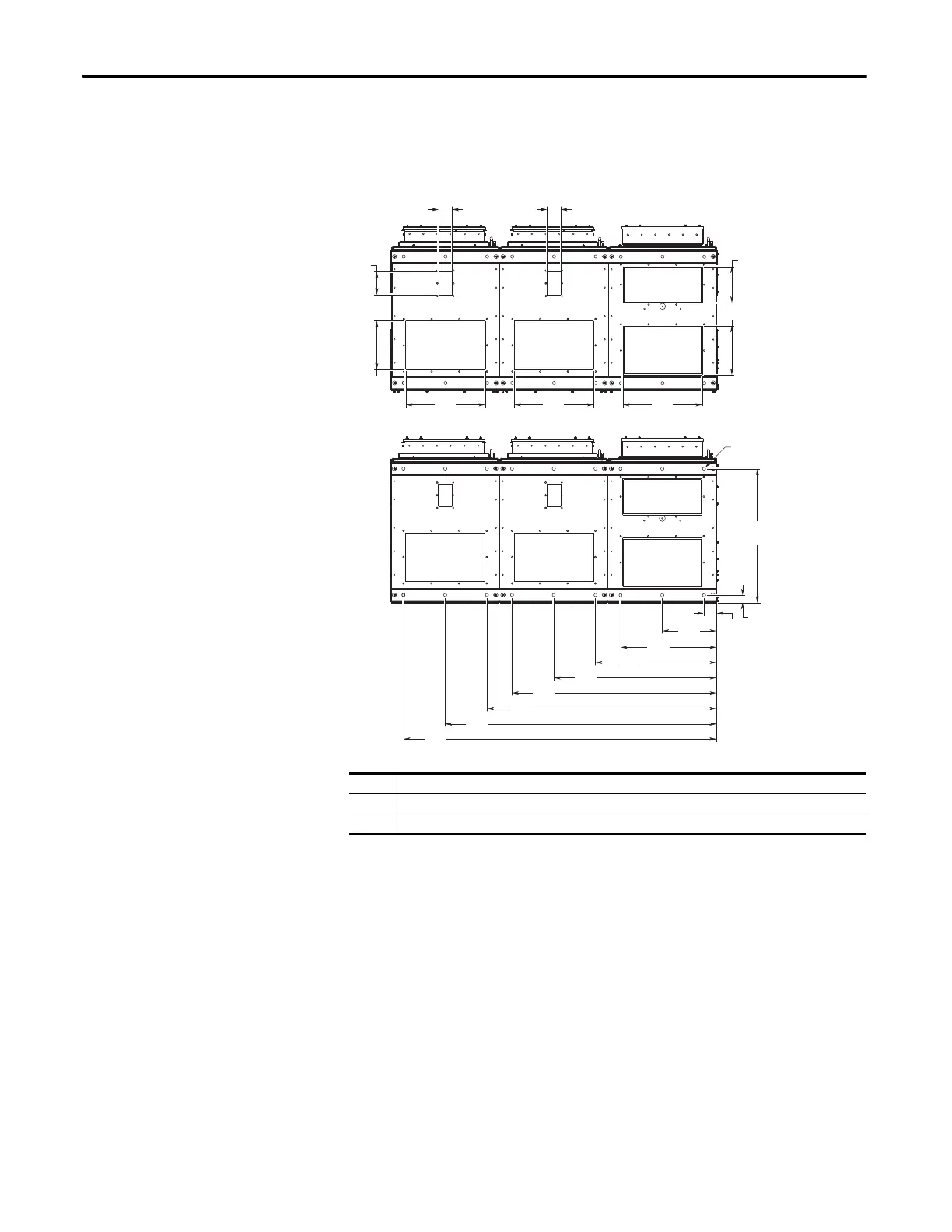

Figure 73 - IP54, NEMA 12, MCC Style Cabinet, Floor Mount Frame 9 Bottom Access
(Enclosure Codes K and Y)
IP54, UL Type 12, MCC Style Cabinet, Floor Mount Frame 9 Bottom Access
(Enclosure Code J)
800 mm Deep Drive with Wiring Bay.
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
270
(10.6)
➊
➋
➊
➋
76
(3.0)
➊
➋
270
(10.6)
127
(5.0)
76
(3.0)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
69
(2.7)
1269
(50.0)
1500
(59.1)
1731
(68.1)
200
(7.9)
440
(17.3)
440
(17.3)
440
(17.3)
1269
(50.0)
1500
(59.1)
1731
(68.1)
