Chapter 4 Power Wiring

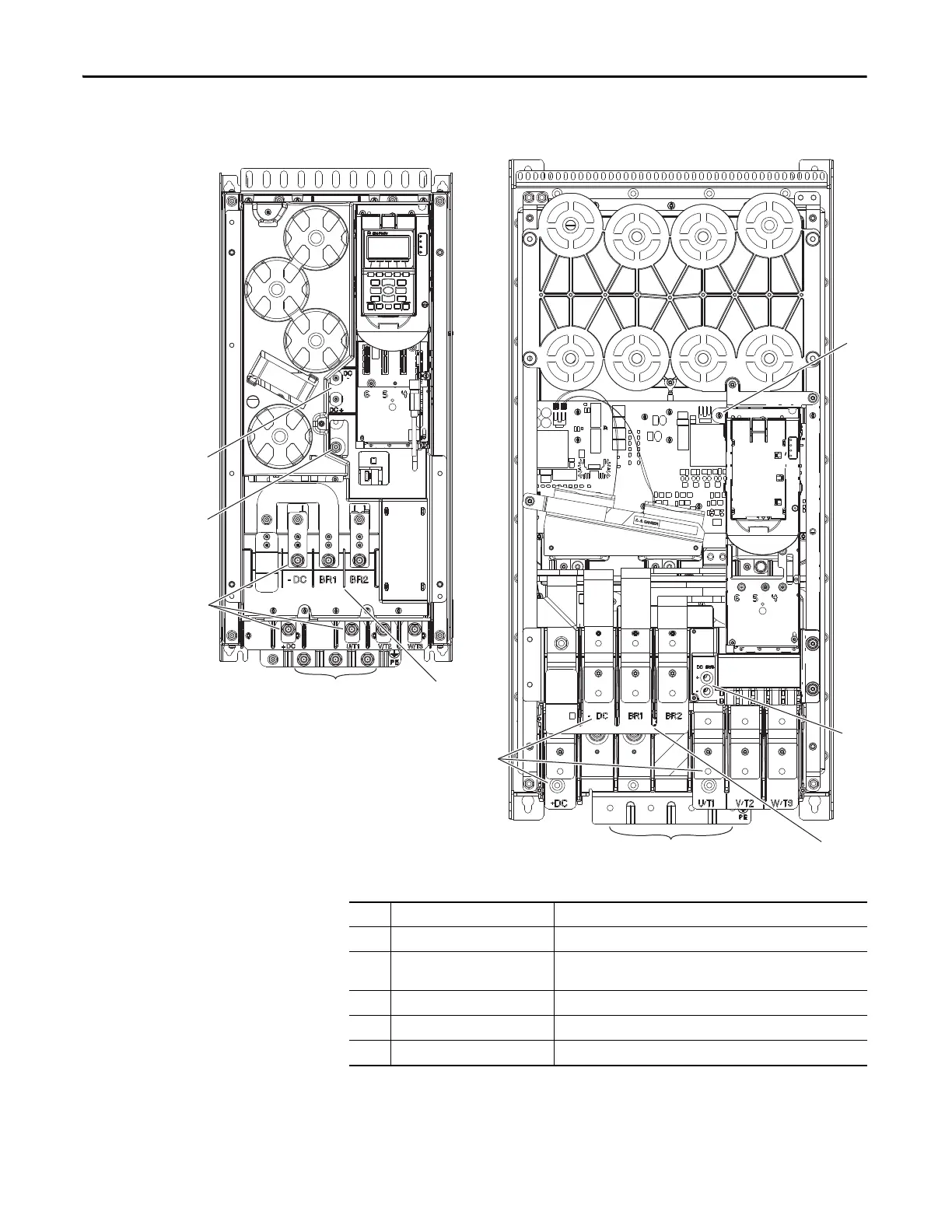

Figure 91 - Wall Mount Frames 6 and 7 Common DC Input Power Terminal and Termination Point
Locations
Wall Mount Frame 6
Wall Mount Frame 7
No. Name Description
➊ Power Terminals +DC, -DC, U/T1, V/T2, W/T3
➋ PE Grounding Studs Terminating point to chassis ground for incoming DC line and motor
shield.
➌ DC Bus and Brake Terminals +DC, -DC, BR1, BR2
➍ PE-B CMC Jumper Wire
➎ DC+ and DC- Bus Voltage Test Points
