Allen-Bradley PowerFlex 20-750-ENC-1

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 277
I/O Wiring Chapter 5

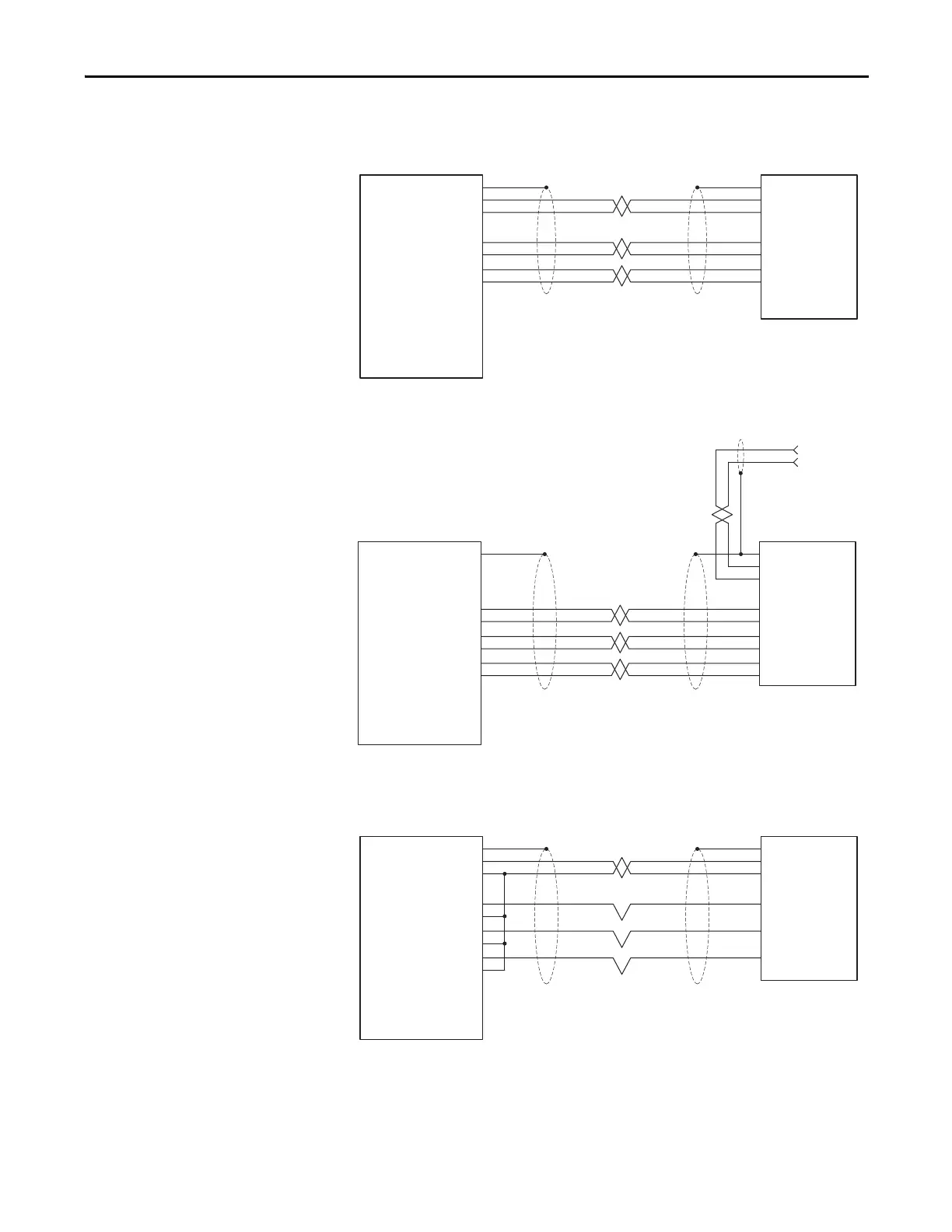

Figure 136 - Differential Dual Channel without Z Channel
Figure 137 - Differential Dual Channel with Z Channel with External Power Supply
Figure 138 - Single-Ended, Dual Channel
Single Incremental Encoder
Option Module TB
Encoder TB
Shield
Sh
12V
Com
5V
A
A-
B
Z
Z-
+24V
24VC
B-
HmC
Hm
Enc +12V
Enc Ret
Enc +5V
Enc A
/Enc A
Enc B
/Enc B
Enc Z
/Enc Z
Single Incremental Encoder
Option Module TB
Encoder TB
Shield
Sh
12V
Com
5V
A
A-
B
Z
Z-
+24V
24VC
B-
HmC
Hm
Enc +12V
Enc Ret
Enc +5V
Enc A
/Enc A
Enc B
/Enc B
Enc Z
/Enc Z
Encoder
Power Supply
Shield
Common
+
Single Incremental Encoder
Option Module TB
Encoder TB
Shield
Sh
12V
Com
5V
A
A-
B
Z
Z-
+24V
24VC
B-
HmC
Hm
Enc +12V
Enc Ret
Enc +5V
Enc A
/Enc A
Enc B
/Enc B
Enc Z
/Enc Z
