Lift and Mount the Drive Chapter 3

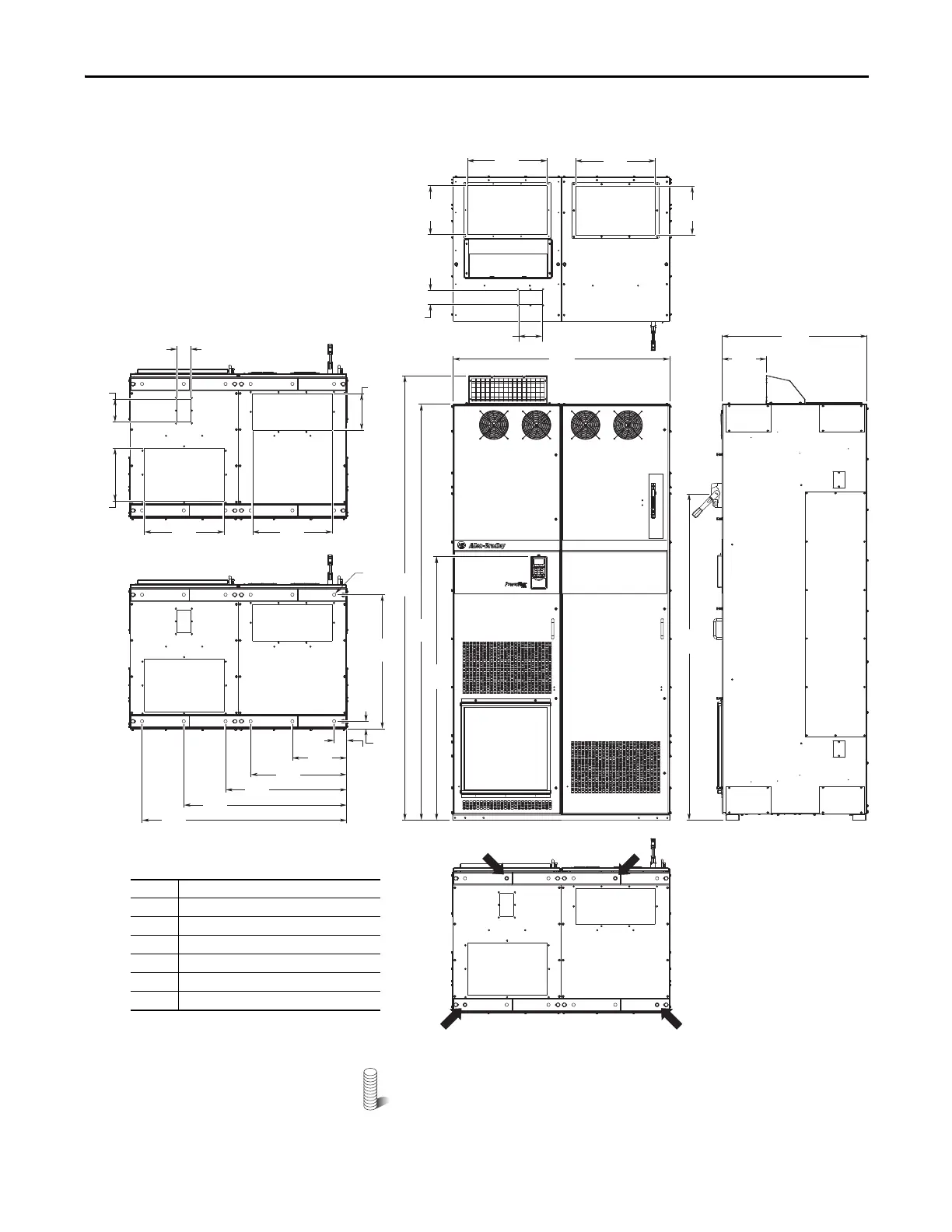

Figure 48 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8
Enclosure Code L, P, W - 800 mm Deep Drive with Cabinet Options Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
127
(5.0)
2453
(96.6)
1200
(47.2)
2300
(90.6)
440
(17.3)
440
(17.3)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
69
(2.7)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
800
(31.5)
240
(9.4)
292
(11.5)
127
(5.0)
76
(3.0)
440
(17.3)
200
(7.9)
➊➊
➊
➊
➋
➍
➏
➎
1808
(71.2)
270
(10.6)
270
(10.6)
440
(17.3)
1464
(57.6)
➌
➋
76
(3.0)
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
➌ Optional exhaust hood.
➍ Option bay disconnect switch.
➎ Optional HIM.
➏ Recommended four-hole anchoring.
