Allen-Bradley PowerFlex 4 User Manual

B-8 Accessories and Dimensions

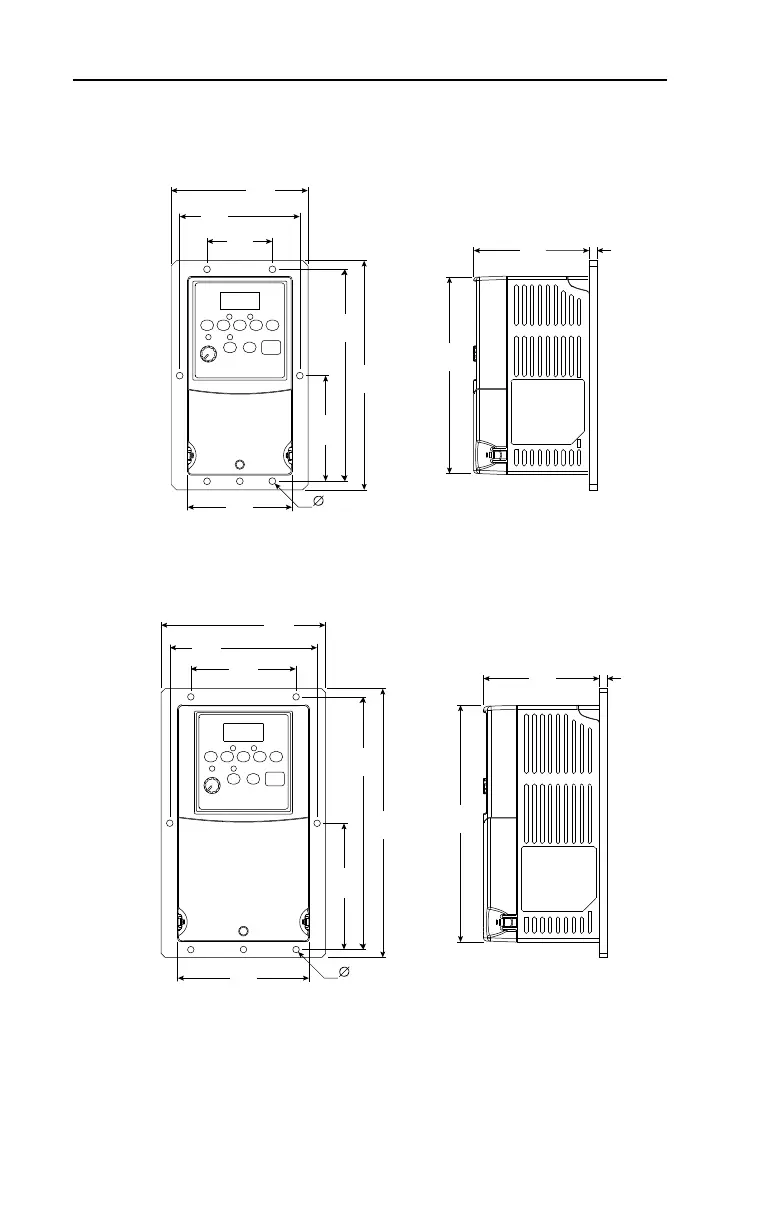

Figure B.5 PowerFlex 4 Replacement Plate Drive Dimensions – Dimensions are in
millimeters and (inches)
104.8
(4.13)
175
(6.89)
152
(5.98)
163
(6.42)
81.5
(3.21)
6
(0.24)
88
(3.46)
92
(3.62)
80
(3.15)
50
(1.97)
5.3
(0.21)
125
(4.92)
204
(8.03)
180
(7.09)
192
(7.56)
96
(3.78)
9.5
(0.37)
88
(3.46)
112
(4.41)
100
(3.94)
80
(3.15)
5.3
(0.21)
Frame A
Frame B

Allen-Bradley PowerFlex 4 Specifications

General

Series	PowerFlex 4
Horsepower	0.2-3 HP
Enclosure	IP20
Output Frequency	0-400 Hz
Power Range	0.2…2.2 kW (0.25…3 HP)
Communication Options	RS-485
Storage Temperature	-40…85 °C (-40…185 °F)
Relative Humidity	5-95% non-condensing
Control Method	Volts per Hertz
