40 Rockwell Automation Publication 520-UM001A-EN-E - February 2013
Chapter 1 Installation/Wiring

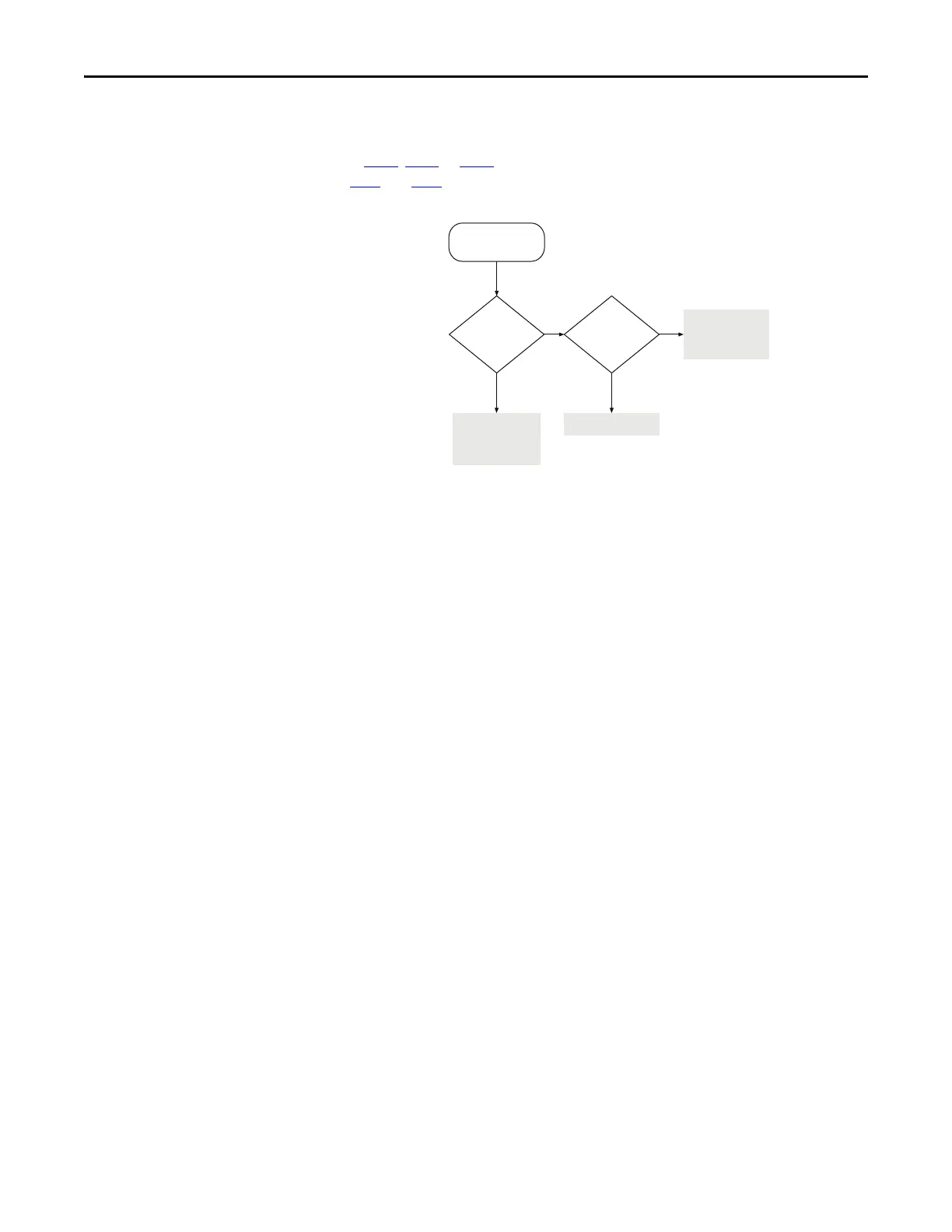

Digital Input Selection for Start Source
If P046, P048 or P050 [Start Source x] has been set to 2, “DigIn TermBlk”, then
t062
and t063 [DigIn TermBlk xx] must be configured for 2-Wire or 3-Wire
control for the drive to function properly.
[Start Source x]
= 2 (DigIn TrmBlk)
[DigIn TermBlk
02/03] = 48/49/50/51
(2-Wire or
3-Wire)
Drive will not start.
Start and Direction
command from
Terminal Block.
[Start Source x]
Start and Direction
command from
[Start Source x].
No No
Yes Yes
