Allen-Bradley PowerFlex 70 User Manual

Rockwell Automation Publication 20A-UM001N-EN-P - July 2013 15
Programming and Parameters Chapter 1

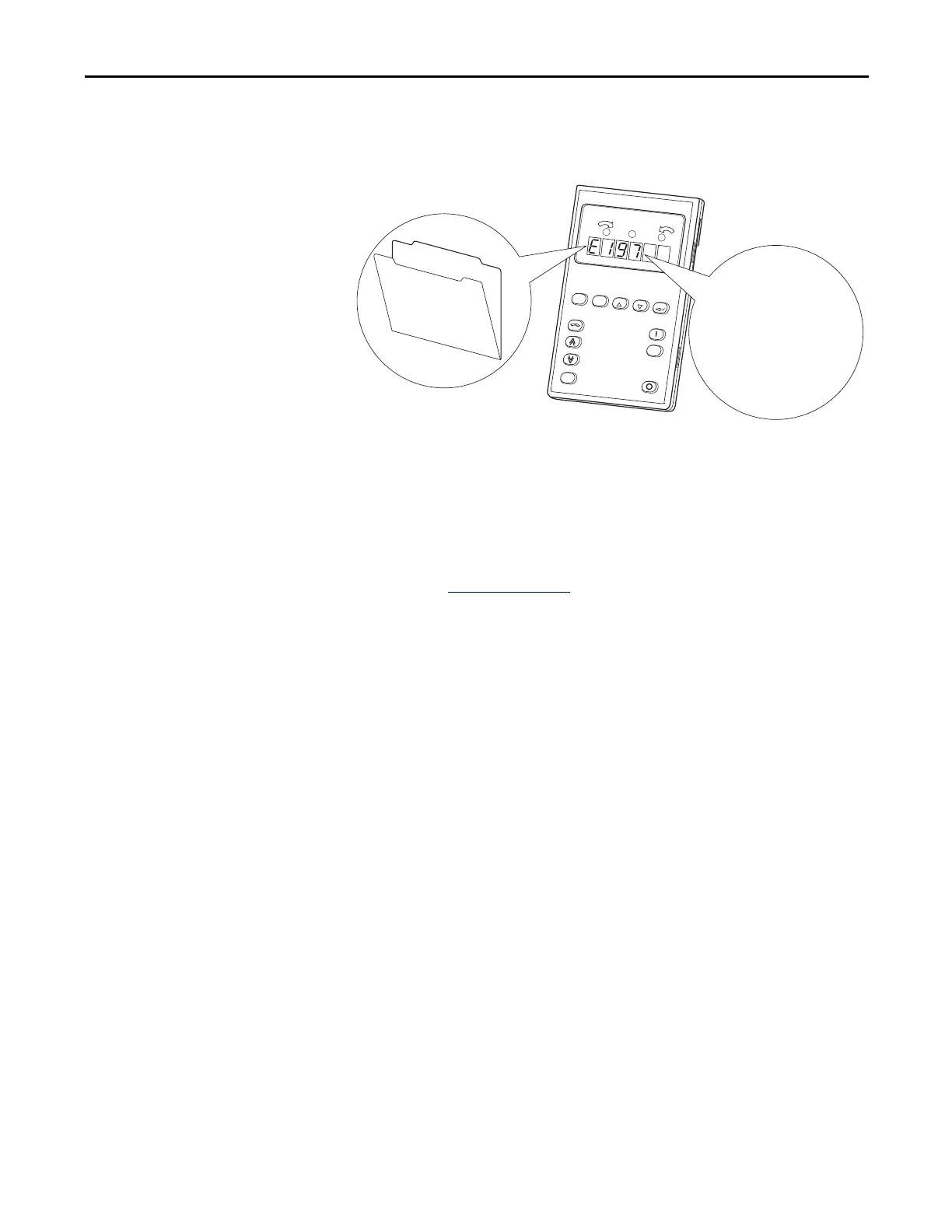

File Letter Designations
The LED HIM identifies each parameter by file letter and parameter number.
LCD HIM (human interface module)
The LCD HIM displays parameters in a file-group-parameter, or numbered list,
view order. To switch display mode, access the Main Menu, press ALT then Sel
while the cursor is on the parameter selection. In addition, when you use
parameter 196 [Param Access Lvl]
, you have the option to display all parameters,
commonly used parameters, or diagnostic parameters.
Control Options
Two different control options are available for the PowerFlex 70, standard and
enhanced.
• Standard control drives provide volts per hertz and sensorless vector
operation.
• Enhanced control drives support the addition of FVC vector control, the
DriveGuard Safe Off option, and more.
File-Group-Parameter View
This simplifies programming by grouping parameters that are used for similar
functions. The parameters are organized into six files in basic parameter view, or
seven files in advanced parameter view. Each file is divided into groups, and each
parameter is an element in a group. By default, the LCD HIM displays
parameters by file-group-parameter view.
Numbered List View
All parameters are in numerical order.
Esc
ALT
JOG
Sel
Log
Device
Auto/Man
Remove
Out
In
F
R
M
Utility
File E
Parameter 197:
Reset to Defaults

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
