46 Rockwell Automation Publication 750COM-UM009A-EN-P - May 2017
Chapter 2 Configure the Interface
Because the built-in EtherNet/IP interface is part of Port 0, restoring the port
defaults also resets other drive configuration settings that are made in Port 0.
Follow these steps to restore interface parameters to their default configuration
values.

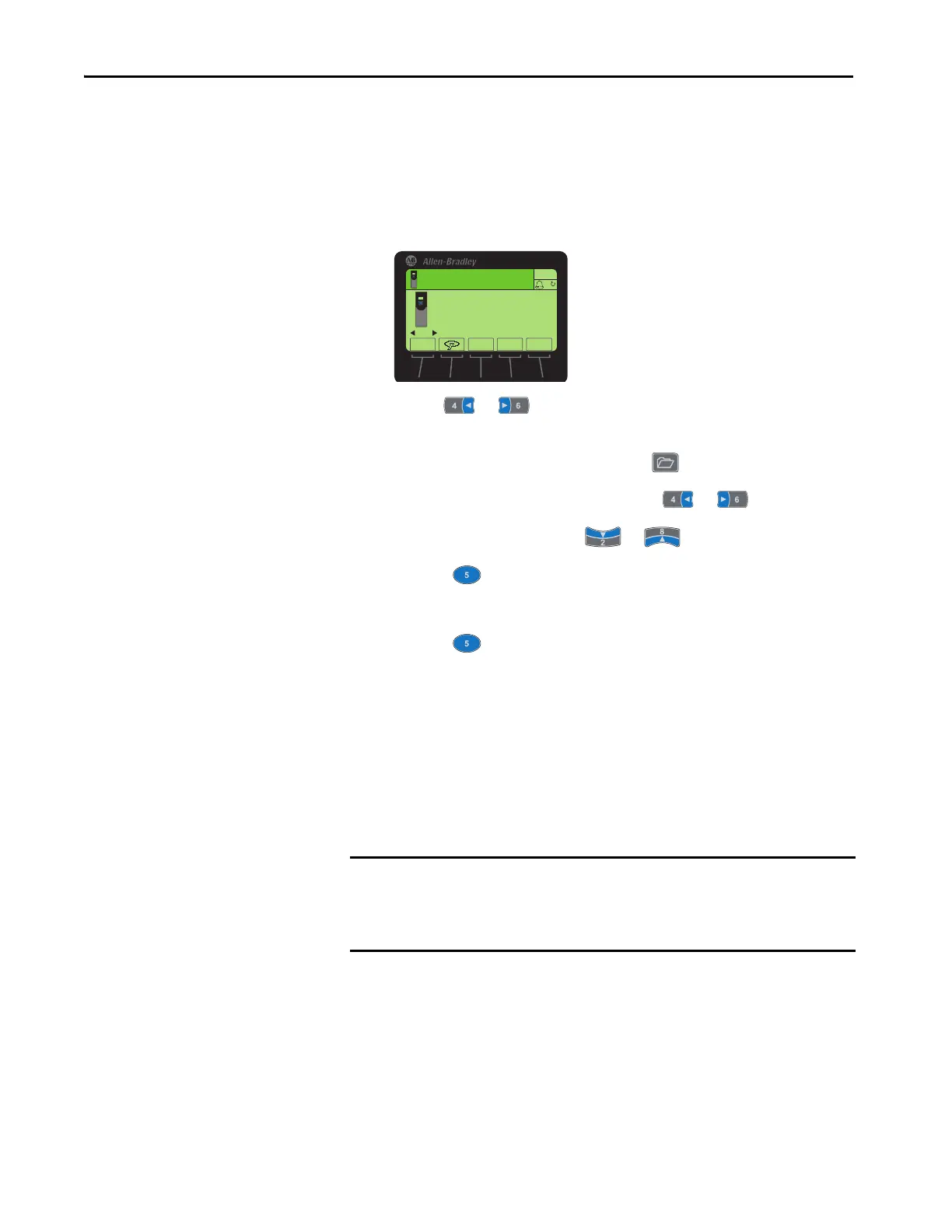

1. Access the Status screen, which is displayed on HIM power-up.
2. Use the or key to scroll to Port 0, which is the drive port
contains the built-in EtherNet/IP interface.
3. display the last-viewed folder, select the key.
4. To scroll to the MEMORY folder, use the or key.
5. To select Set Defaults, use the or key.
6. Press the (Enter) key.
The Set Defaults popup box appears.
7. Press the (Enter) key again.
The warning popup box appears.
8. Reset parameters to their default configuration values by selecting the
appropriate option:
• To restore MOST parameters to default configurations, press the
MOST soft key.
• To restore ALL parameters, press the ALL soft key.
• To cancel, press the ESC soft key.
9. Reset the interface by cycling power to the drive or by using the Reset
Device function of the HIM, located in the DIAGNOSTIC folder for
the drive.
IMPORTANT When performing a Set Defaults, the drive can detect a conflict and then not
allow this function to occur. If a conflict happens, first resolve the conflict
and then repeat this Set Defaults procedure. Common reasons for a conflict
include a drive that is running or a controller in Run mode.
Stopped
0.00 Hz
AUTO
PowerFlex 755TR
240V Cycle
Rev. 1.001 Ser. A
ESC REF TEXT
F
PAR#
