Rockwell Automation Publication 750COM-UM009A-EN-P - May 2017 55
Configuring the Drive in a Logix System Chapter 3

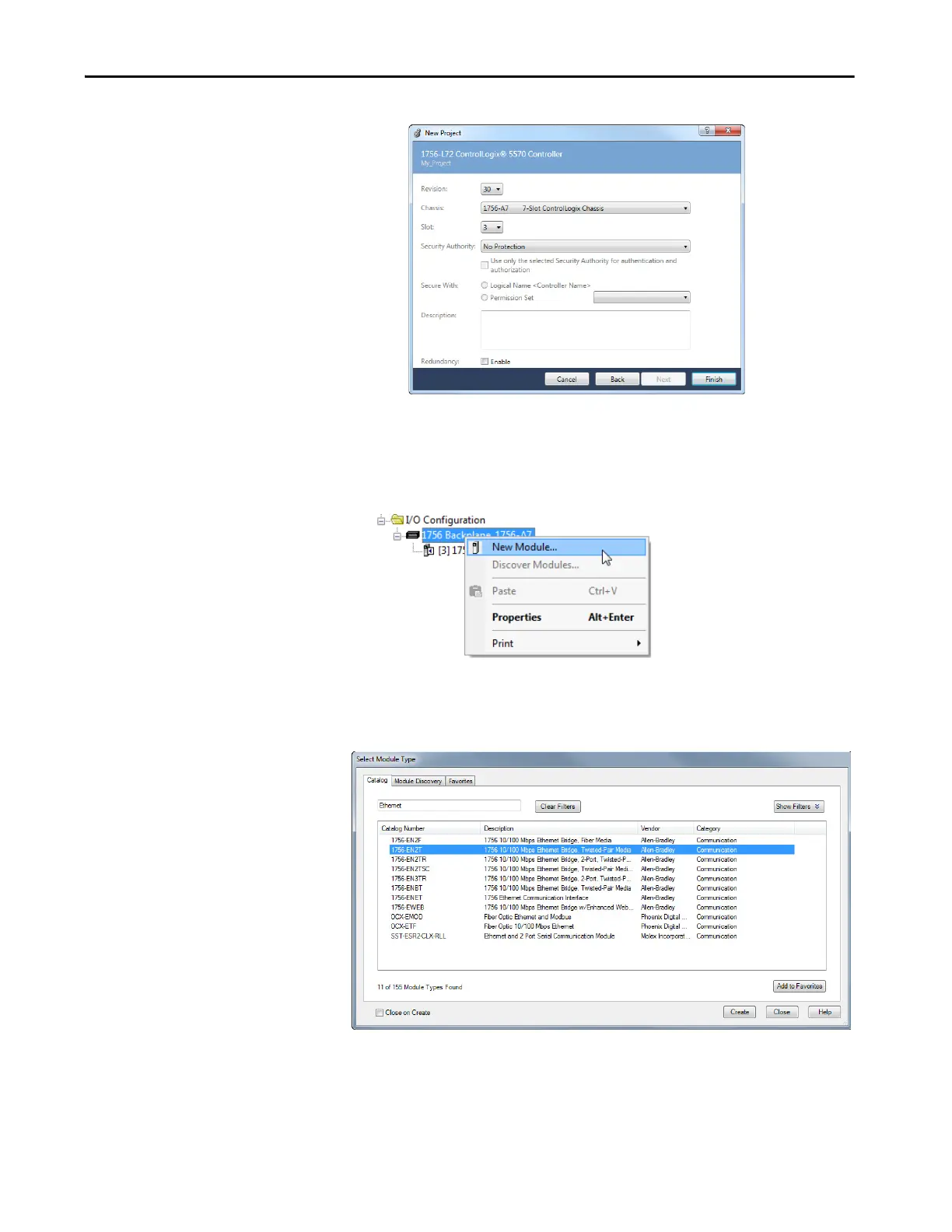

The Logix Designer application dialog box reappears with the tree
view in the left pane.
3. In the tree view, right-click the 1756 Backplane in the I/O
Configuration folder and choose New Module.
The Select Module Type dialog box appears.
4. To filter the displayed devices, enter the word Ethernet into the Search
field.
5. In the list, select the EtherNet/IP bridge that is used by your controller.
In this example, we are using a 1756-EN2T.
6. Click Create.
