Allen-Bradley PowerFlex User Manual

Masks 2-93
Example: A customer's process is normally controlled by a remote PLC,
but the drive is mounted on the machine. The customer does not want
anyone to walk up to the drive and reverse the motor because it would
damage the process. The local HIM (drive mounted Adapter 1) is
configured with an operator's panel that includes a “REV” Button. To assure
that only the PLC (connected to Adapter 2) has direction control, the
[Direction Mask] can be set as follows:

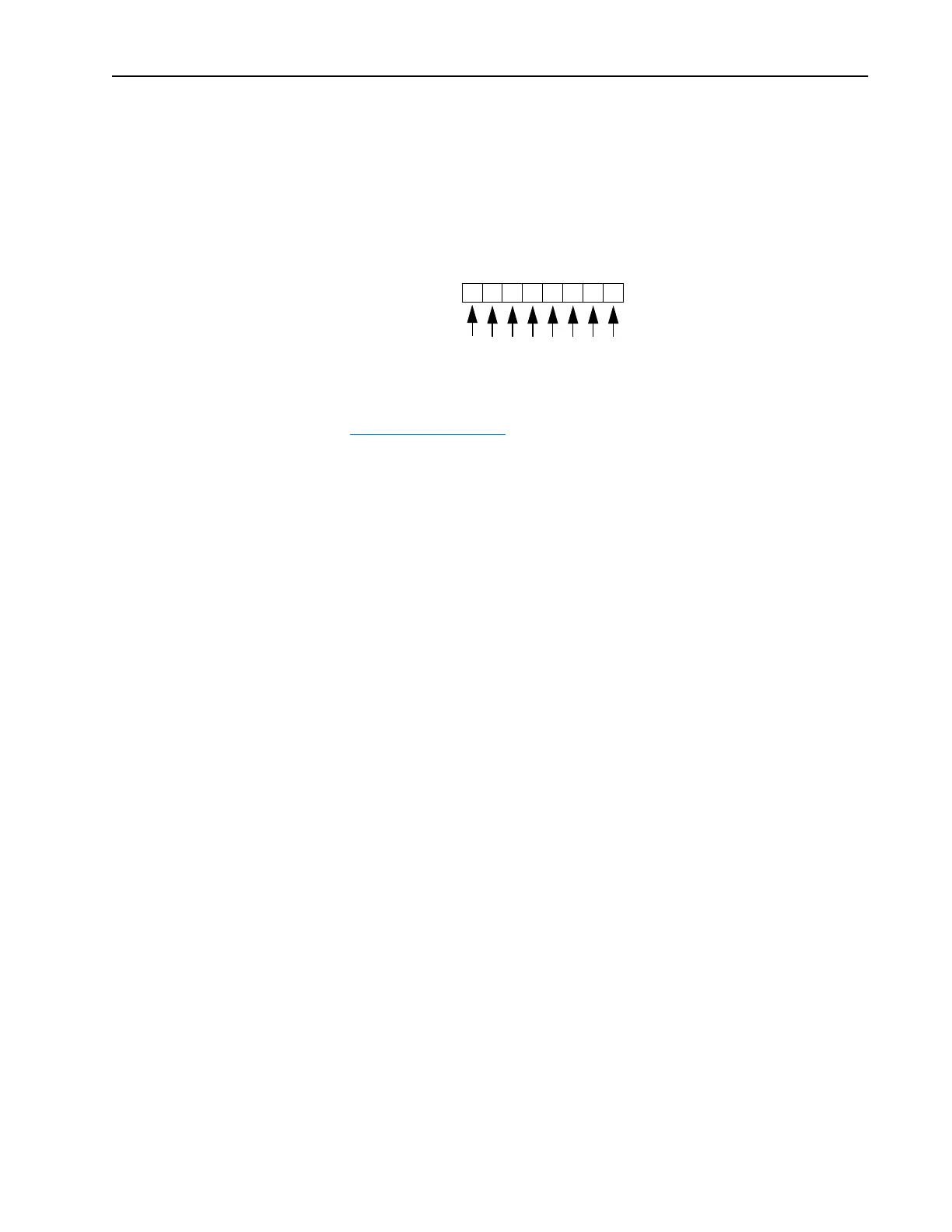

Direction Mask
This “masks out” the reverse function from all adapters except Adapter 2,
making the local HIM (Adapter 1) REV button inoperable. Also see
Owners on page 2-104.
00000100
Adapter # X 6543210

Allen-Bradley PowerFlex Specifications

General

Category	DC Drives
Manufacturer	Allen-Bradley
Series	PowerFlex
Communication Options	EtherNet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Enclosure Type	NEMA 1, NEMA 12, NEMA 4/4X
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280 ft) without derating
