Derating Guidelines 1-3
Derating Guidelines PowerFlex 70 Ambient Temperature/Load

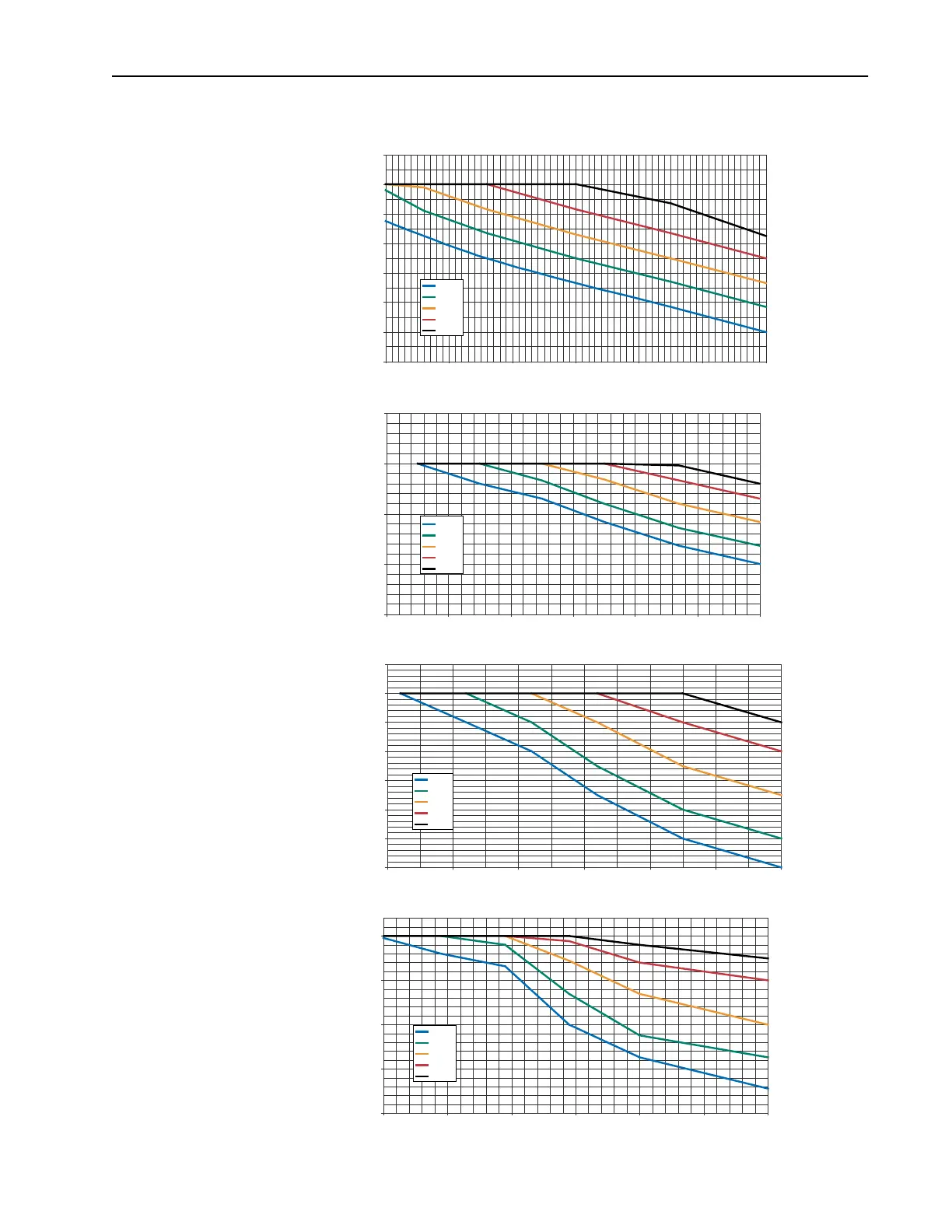

PowerFlex70, A Frame 400V Class. Derating, Ambient Temperature and Load. Open, NEMA1, IP20.
48
50
52
54
56
58
60
62
40 50 60 70 80 90 100
% of Full Load, Amps
Max Ambient Temperature, C
10kHz
8kHz
6kHz
4kHz
2kHz
PowerFlex70, B Frame 400V Class. Derating, Ambient Temperature and Load. Open, NEMA1, IP20
45
50
55
60
65
40 50 60 70 80 90 100
% of Full Load Amps
Max Ambient Temperature, C
10kHz
8kHz
6kHz
4kHz
2kHz
PowerFlex70, C Frame 400V Class, Derating, Ambient Temperature and Load. Open, NEMA1 and IP20
48
50
52
54
56
58
60
62
40 50 60 70 80 90 100
% of Output FLA
Max Ambient Temperature, C
10kHz
8kHz
6kHz
4kHz
2kHz
PowerFlex70, D Frame 400V Class. Derating, Ambient Temperature and Load. Open, NEMA1, IP20
40
45
50
55
60
40 50 60 70 80 90 100
% of Full Load Amps
Max Ambient Temperature, C
10kHz
8kHz
6kHz
4kHz
2kHz
