2-170 User Sets
User Sets After a drive has been configured for a given application the user can store a
copy of all of the parameter settings in a specific EEPROM area known as a
“User Set.” Up to 3 User Sets can be stored in the drives memory to be used
for backup, batch “switching” or other needs. All parameter information is
stored. The user can then recall this data to the active drive operating
memory as needed. Each User Set can also be identified with a
programmable name, selected by the user for clarity.
There are two operations to manage the operation of User Sets, “Save To
User Set” and “Restore From User Set.” The user selects 1, 2, or 3 as the
area in which to store data. After data is successfully transferred, “Save
User Set” returns to a value of 0. To copy a given area back into the active
EEprom memory, the user selects Set 1, 2, or 3 for “Restore User Set.” After
data is successfully transferred, “Restore User Set” returns to a value of 0.
When shipped from the factory all user sets have the same factory default
values. Reset Defaults does not effect the contents of User Sets.

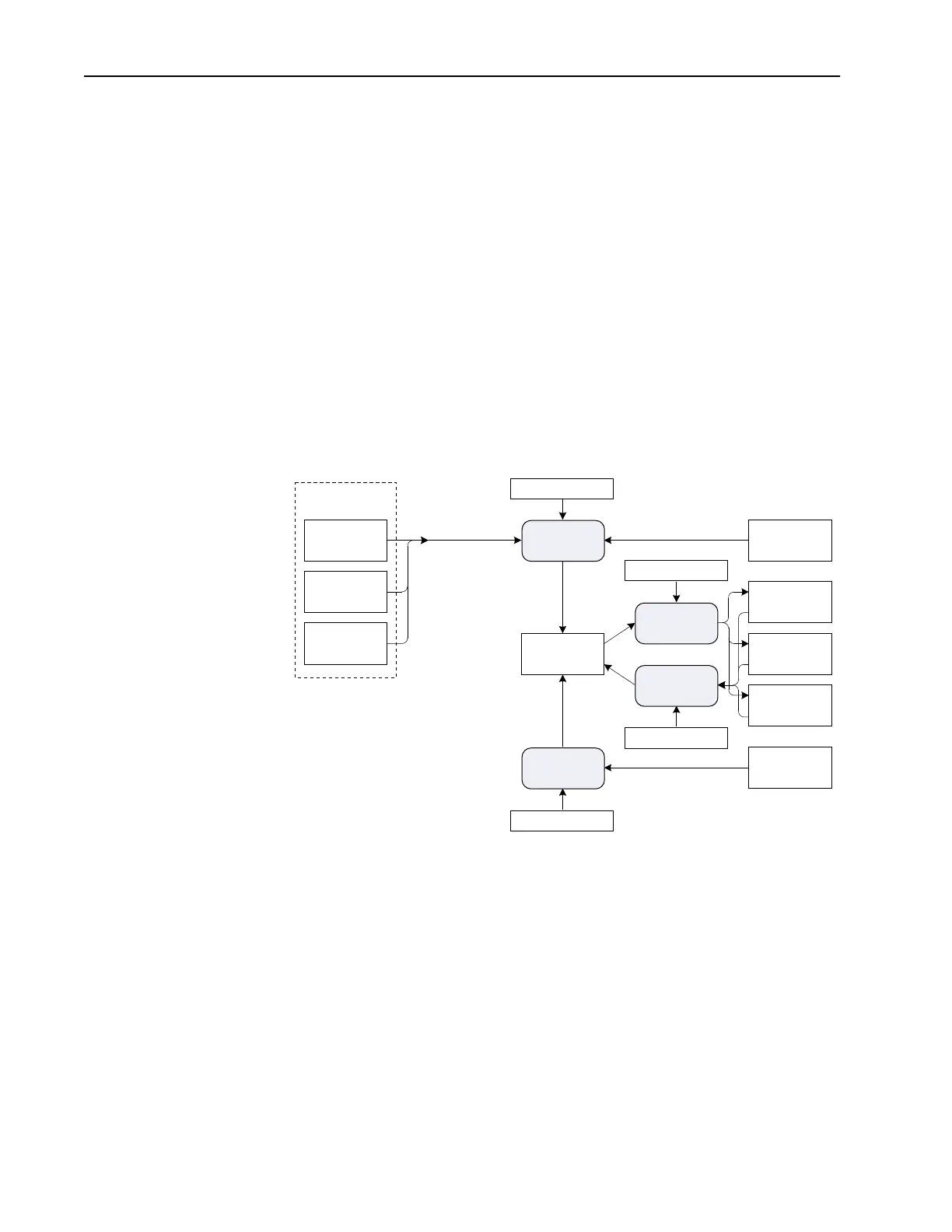

Figure 2.21 User Sets
Drive Rating & Motor
Parameters
1
2
3
Non Drive Rating & Motor
Parameters
1
2
3
User Set 1
User Set 3
User Set 2
Flash Memory
Flash Memory
Active EE
Reset Defaults
Reset
Active EE
Load
Application
Set
Application Set
RestoreUserSet
SaveUserSet
Save
User set
Restore
User set
400V
Default Data
Factory
Default Data
480V
Default Data
PowerBoard
EEprom
To Next Page
