2-138 Sleep Mode
independent of any other functions that are also using the assigned analog
input. Thus, using the same analog input for both speed reference and wake
control is permitted. Also, [Analog In x Hi] and [Analog In x Lo]
parameters have no affect on the function. However, the factory calibrated
result will be used. In addition, the absolute value of the calibrated result
will be used, thus making the function useful for bipolar direction
applications. The analog in loss function is unaffected and therefore
operational with the Sleep /Wake function, but not tied to the sleep or wake
levels.

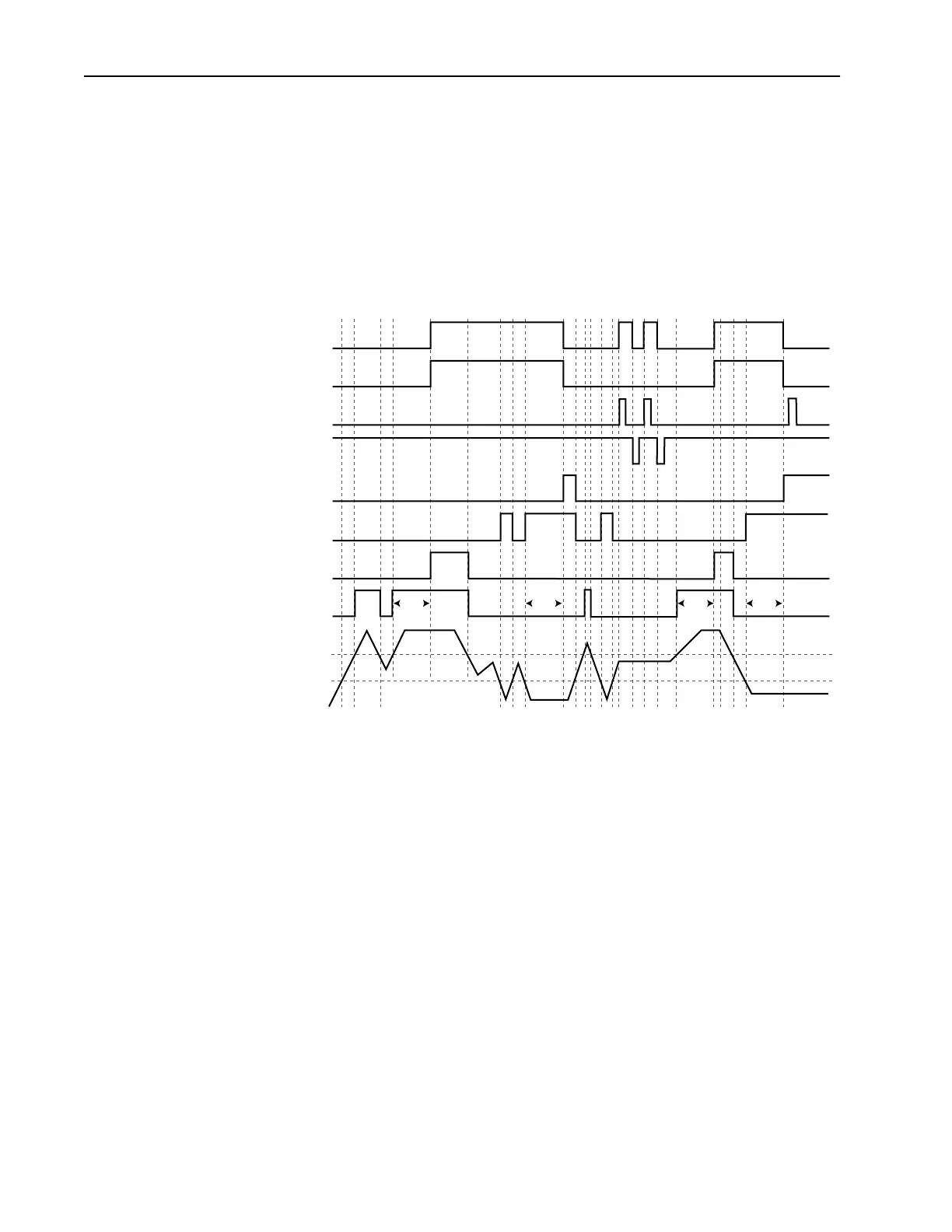

Drive
Run
Wake Up
Wake
Time
Example Conditions
Wake Time = 3 Seconds
Sleep Time = 3 Seconds
Wake Level
Sleep Level
Analog Signal
Go to Sleep
Sleep-Wake
Function
Start
Stop
Sleep Timer
Satisfied
Wake Timer
Satisfied
Wake Level
Satisfied
Sleep Level
Satisfied
Sleep
Time
Wake
Time
Sleep
Time
