Allen-Bradley PowerFlex User Manual

Start-Up 2-151

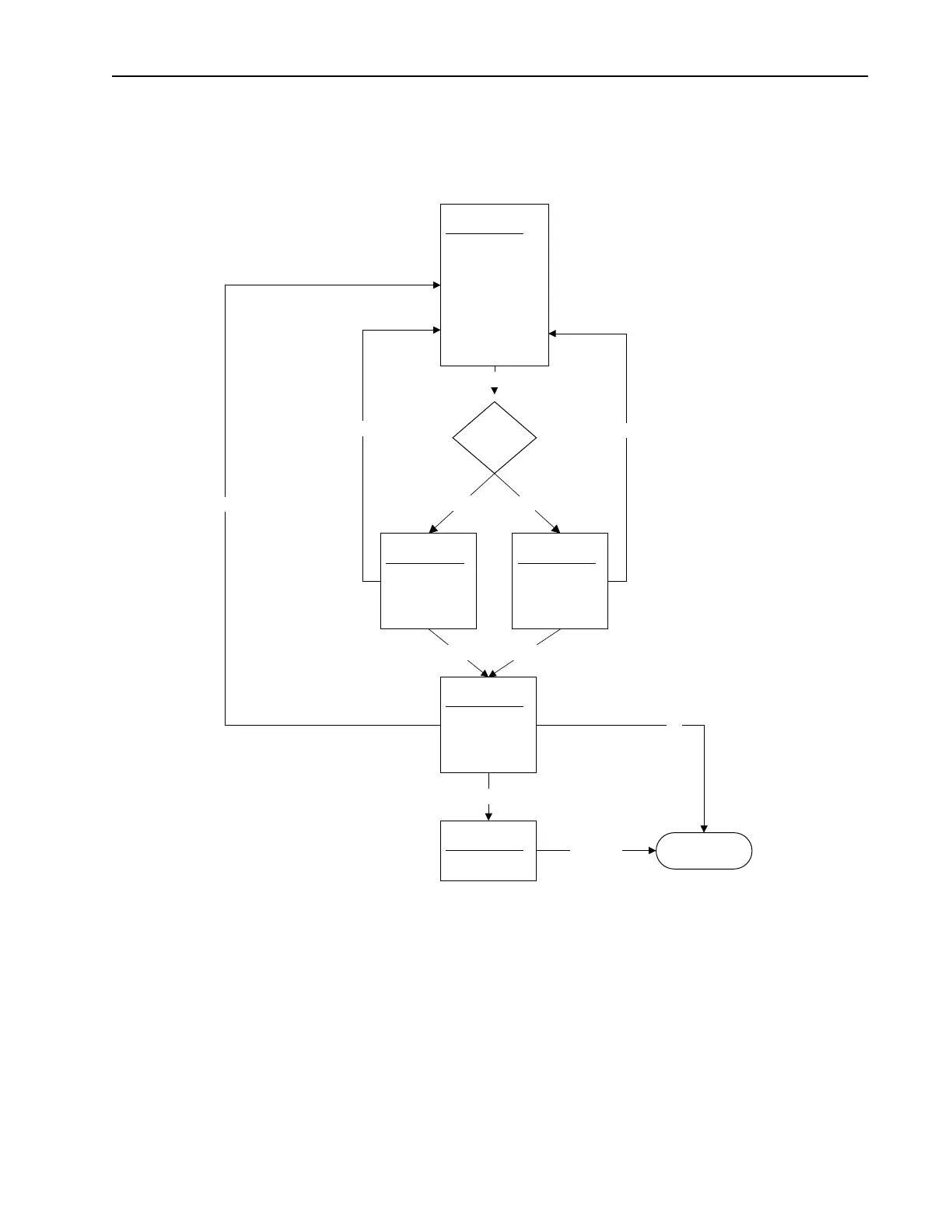

Basic Start Up (Input Voltage)
StartUp
1. Input Voltage
Enter choice for
Input Supply
400V, 50 Hz
<480V, 60 Hz>
StartUp
1. Input Voltage
Reset all
parameters to
their defaults?
<Yes>
No
StartUp
1. Input Voltage
This step should
be done only
when "alternate
voltage" is
needed (see user
manual). It will
reset all drive
parameters with
specific choice
of Volts and Hz.
Enter
1-0
1-1
StartUp
1. Input Voltage
Enter choice for
Input Supply
208V, 60 Hz
<240V, 60 Hz>
1-2
Enter Enter
Backup
1-3
Go to 0-1 (2)
Yes
Rated Volts
>300?
Yes No
StartUp
1. Input Voltage
Clear fault to
continue.
1-4
Fault Clear
Backup
Backup
No
