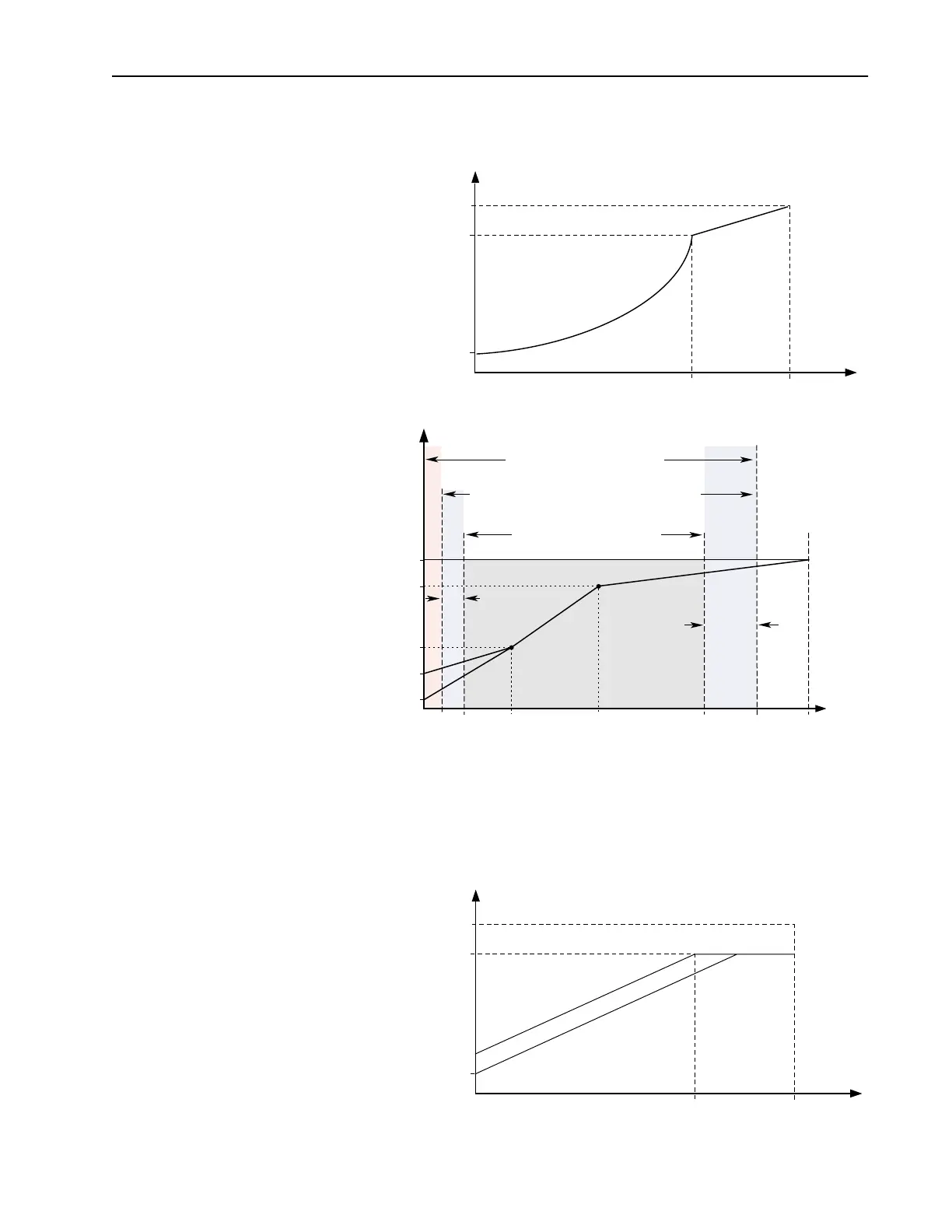

Torque Performance Modes 2-163
This curve is intended for applications such as fans and pumps where the
load increases as the speed increases. This mode is intended to have a V/Hz
profile that more closely matches the developed torque to the load torque.
Sensorless Vector
In sensorless vector control the drive maintains a consistent magnetizing
current up to base speed, the output voltage increases as a function of load.
Maximum Voltage
Maximum
Frequency
Base Voltage
(Nameplate)
Base Frequency
(Nameplate)
Run Boost
Frequency
Output Voltage
Note 1: The lower limit on this range can be 0 depending on the value of Speed Adder
Overspeed
Limit
Frequency Trim
due to Speed
Control Mode
Maximum
Voltage
Motor NP
Voltage
Run
Boost
Break
Voltage
Start
Boost
Allowable Output Frequency Range - Normal Operation
1
Allowable Speed Reference Range
Allowable Output Frequency Range -
Bus Regulation or Current Limit
Maximum
Frequency
Motor NP Hz0 Break
Frequency
Maximum
Speed
Minimum
Speed
Output
Frequency
Limit
Appproximate Full Load Curve
Appproximate No Load Curve
Maximum Voltage
Maximum
Frequency
Base Voltage
(Nameplate)
Base Frequency
(Nameplate)
Ir Voltage
