Publication 2711-UM014B-EN-P
Installing the PV1400 Terminal 11-7
To install the PV1400 terminal in a panel using mounting studs:
1. Cut an opening in the panel using the panel cutout shipped with
the terminal. Carefully drill 5.56 mm (7/32 inch) holes for studs
as indicated.
2. Install the mounting studs (Catalog No. 2711-NP3) using a 7/
32-inch socket on the end of the stud. Turn stud clockwise and
tighten to approximately 10-inch pounds (1.1 N•m).
3. Make sure the sealing gasket is properly positioned on the
terminal. This gasket forms a compression type seal (NEMA
Type 4). Do not use sealing compounds
.
4. Place the PV1400 in the panel cutout aligning the studs with the
mounting holes.
5. Install the self-locking nuts hand tight.
ATTENTION
!
Be careful not to damage the sealing gasket
when installing or removing studs. A damaged
seal may result in damage to the PanelView
terminal and other panel components due to a
leaking seal.
ATTENTION
!
Tighten mounting nuts to a torque of 10
inch-pounds (1.1 N•m) to provide a proper
seal and prevent potential damage to the
terminal. Allen-Bradley assumes no
responsibility for water or chemical damage to
the terminal or other equipment within the
enclosure because of improper installation.

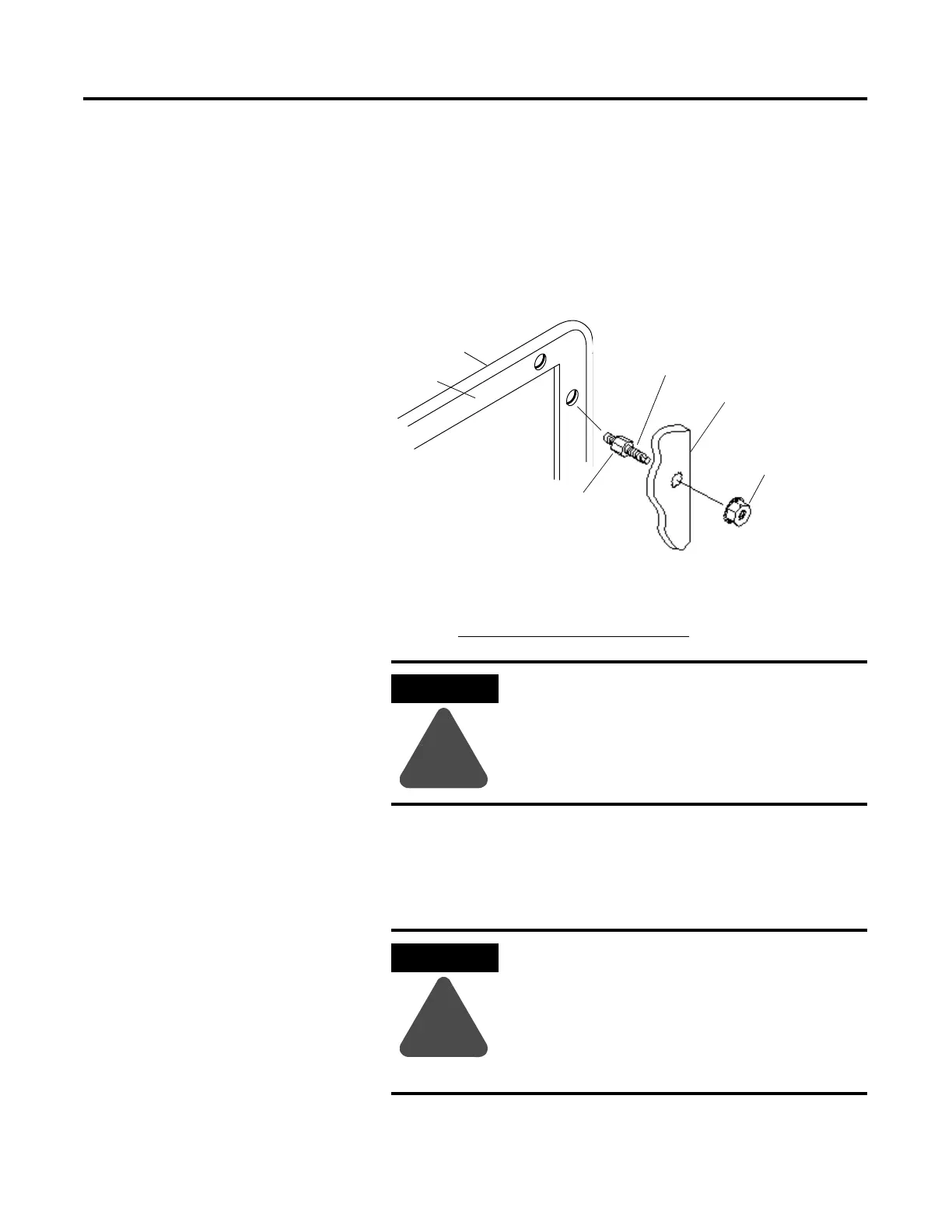

Bezel
Gasket
Panel or Enclosure
Self-locking Nuts
Mounting Studs
(Qty 18 for Keypad, 12 for Touch)
Spacer
To Next Page
