Publication 2711-UM014B-EN-P
12-14 Terminal Connections

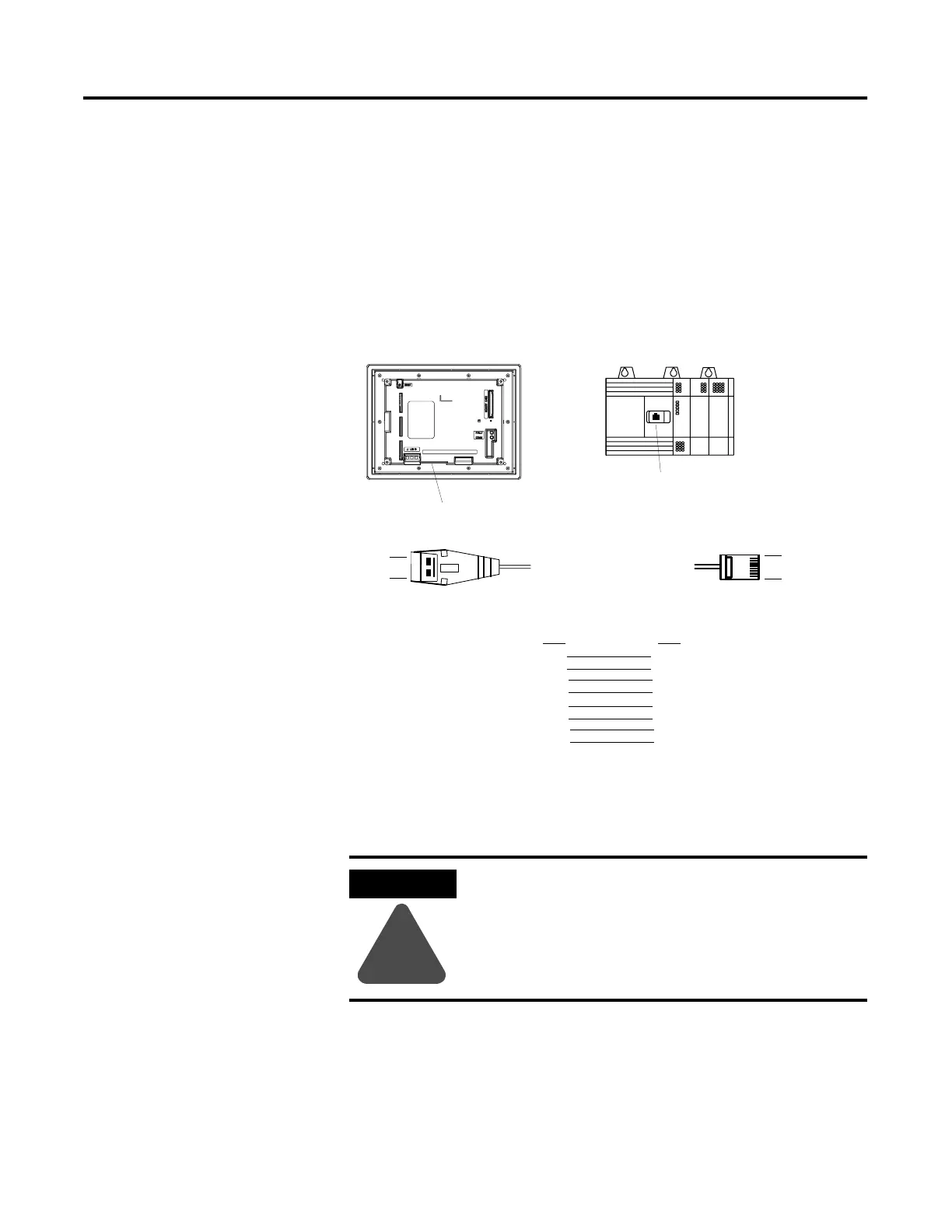

Connecting to a Single SLC Controller (Point-to-Point)
To connect a DH-485 terminal to a single SLC controller use one of
these cables:
• 0.3 meter (1 foot) Catalog No. 1747-C11
• 1.83 meter (6 foot) Catalog No. 1747-C10
• 6.1 meter (20 foot) Catalog No. 1747-C20
The DH-485 connectors are not electrically isolated. If electrical
isolation is required, use Link Couplers (Catalog No. 1747-AIC) as
shown on next page.
ATTENTION
!
Electrical isolation using Link Couplers (Catalog No.
1747-AIC) is required where the distance between
the PanelView terminal and the SLC is greater than
6.1 meters (20 feet).
DH-485 Communications Port
SLC 500 Communications Connector
Cable, Catalog No. 1747-C10
Cable, Catalog No. 1747-C11
Cable, Catalog No. 1747-C20
To PanelView Terminal
8-pin Female Plug
Connection Diagram
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Connect to:
Pin #
Pin #
To SLC Communications Connector
8-pin, Male, Modular Plug
Side shown is opposite latch
Pin 1
Pin 8
Pin 1
Pin 8
SLC
PanelView 1000
