Terminal Connections 12-15
Connecting to a DH-485 Network

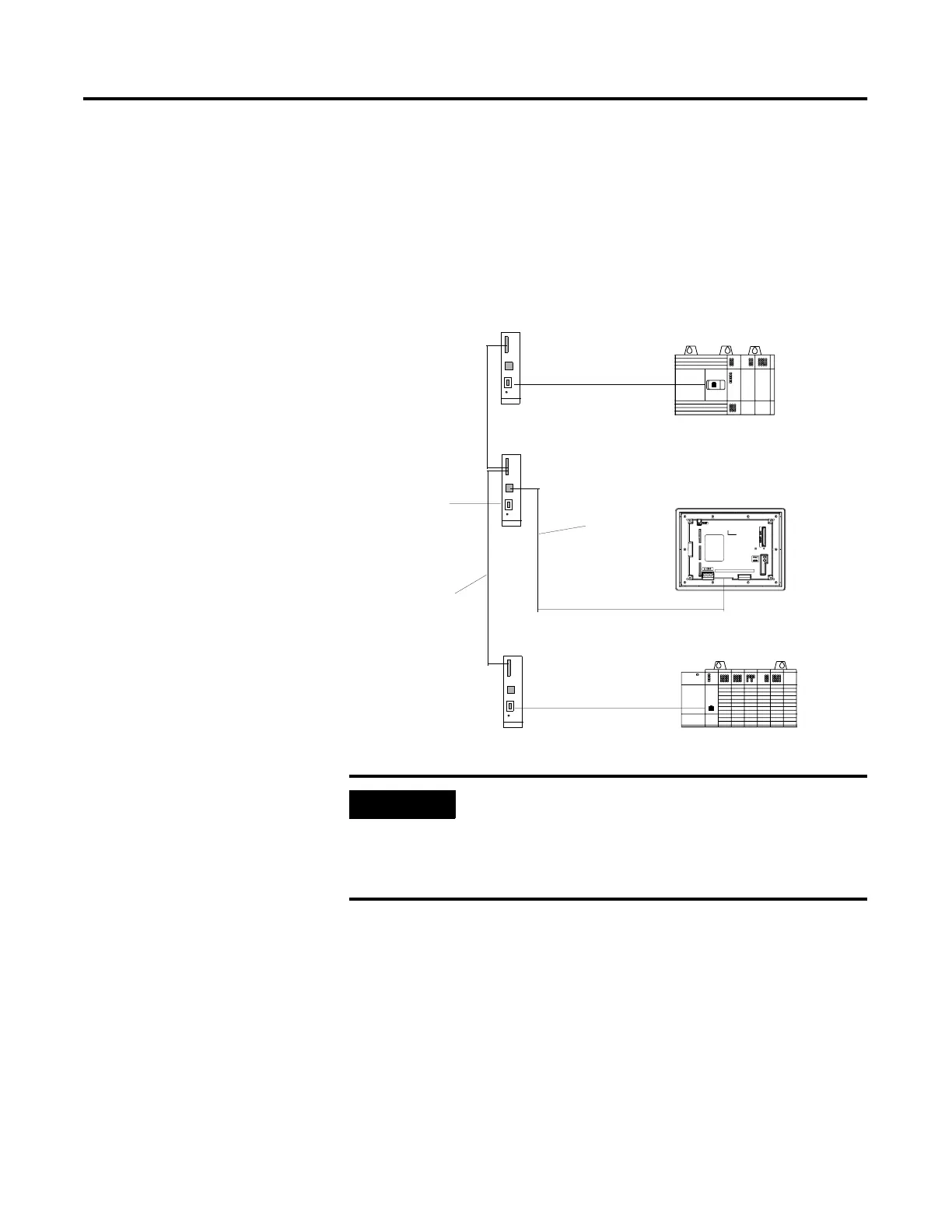

This section shows how to connect a DH-485 terminal to multiple SLC
controllers on a DH-485 network through the AIC Link Coupler.
Note: For PanelView 300 Micro terminals, refer to page 12-39.
IMPORTANT
The DH-485 network cable requires proper
shielding, grounding and termination. Refer to Data
Highway / Data Highway Plus / Data Highway-485
Cable Installation Manual (Publication No.
1770-6.2.2).
Belden 9842
Power Source
or 1747-NP1
SLC
SLC 5/01
PanelView 1000
Cable
Catalog No. 1747-C10
Catalog No. 1747-C11
Catalog No. 1747-C20
Link Coupler
Catalog No. 1747-AIC
To Next Page
