Allen-Bradley PV300 Micro User Manual

Publication 2711-UM014B-EN-P
12-16 Terminal Connections

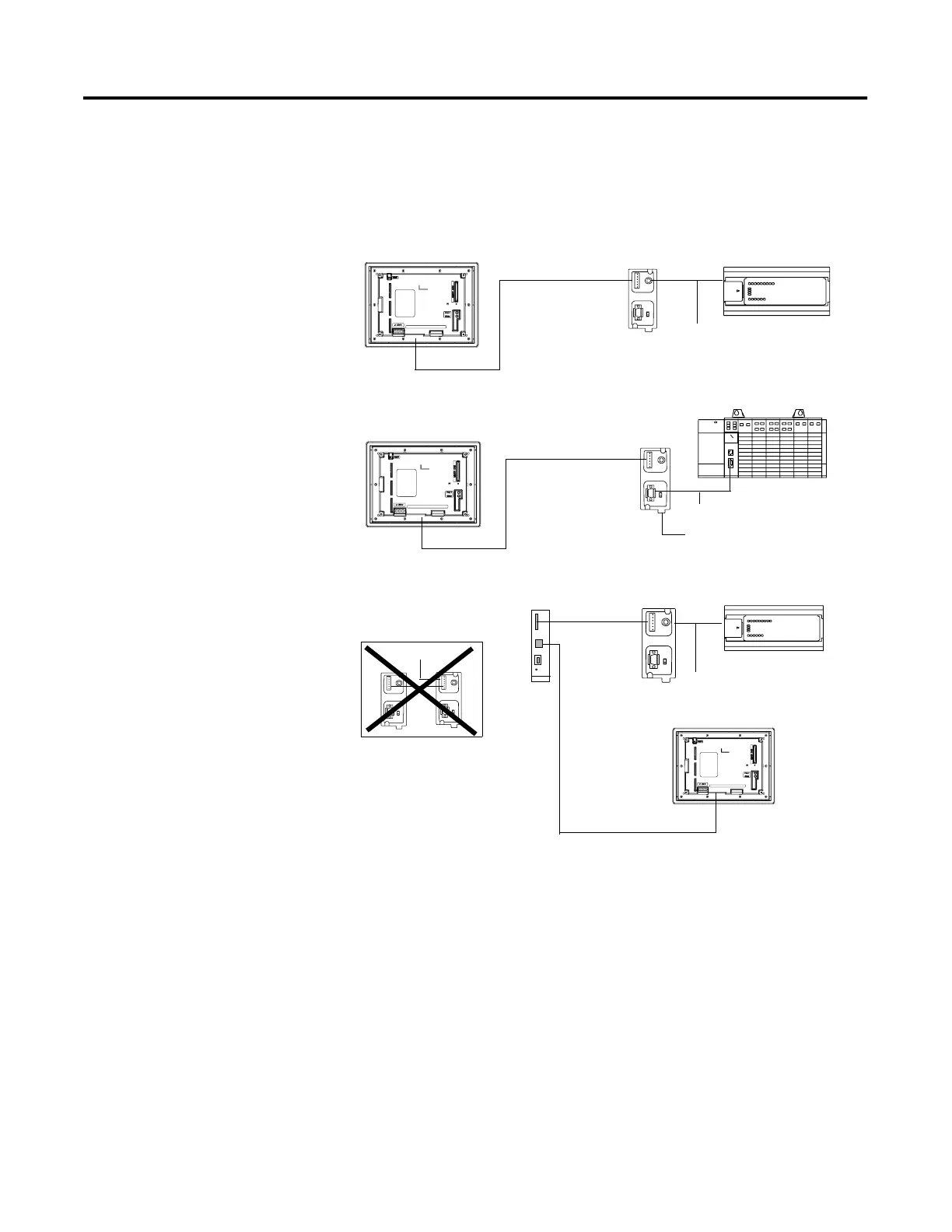

The illustration below shows how to connect a DH-485 terminal to a
MicroLogix or SLC controller using the AIC+ Link Coupler (Catalog
No. 1761-NET-AIC).
Cable
Cat. No. 1761-CBL-AS03
Cat. No. 1761-CBL-AS09
Cable
Cat. No. 1761-CBL-AS03
Cat. No. 1761-CBL-AS09
Cat. No.
1761-CBL-HM02
1761-CBL-AM00
Cat. No. 1747-CP3
To 24V dc Power
Cable
Cat. No. 1747-C10
Cat. No. 1747-C11
Cat. No. 1747-C20
Cat. No.
1761-CBL-HM02
1761-CBL-AM00
AIC+
1761-NET-AIC
AIC+
1761-NET-AIC
AIC+
1761-NET-AIC
AIC
1747-AIC
Belden 9842
To PanelView
Do not connect the PanelView
to Port 3 of the AIC+ when Port
3 is networked to other devices.
PanelView 1000
PanelView 1000
MicroLogix 1000, 1200, 1500LSP
SLC 5/03, 5/04, 5/05
MicroLogix 1000, 1200, 1500LSP
Channel 0 Port
PanelView 1000
