Allen-Bradley PV300 Micro User Manual

Publication 2711-UM014B-EN-P
12-18 Terminal Connections
Cable
Cat. No. 1747-C10
Cat. No. 1747-C11
Cat. No. 1747-C20
Personal Computer
Interface Converter
(Cat. No. 1747-PIC)
25-pin to 9-pin
Adapter
(if required)
Wallmount Power Supply
Cat. No. 1747-NP1
PanelView 1000
PanelBuilder32
To DH-485
Programming Connector
To DH-485
Communications Port

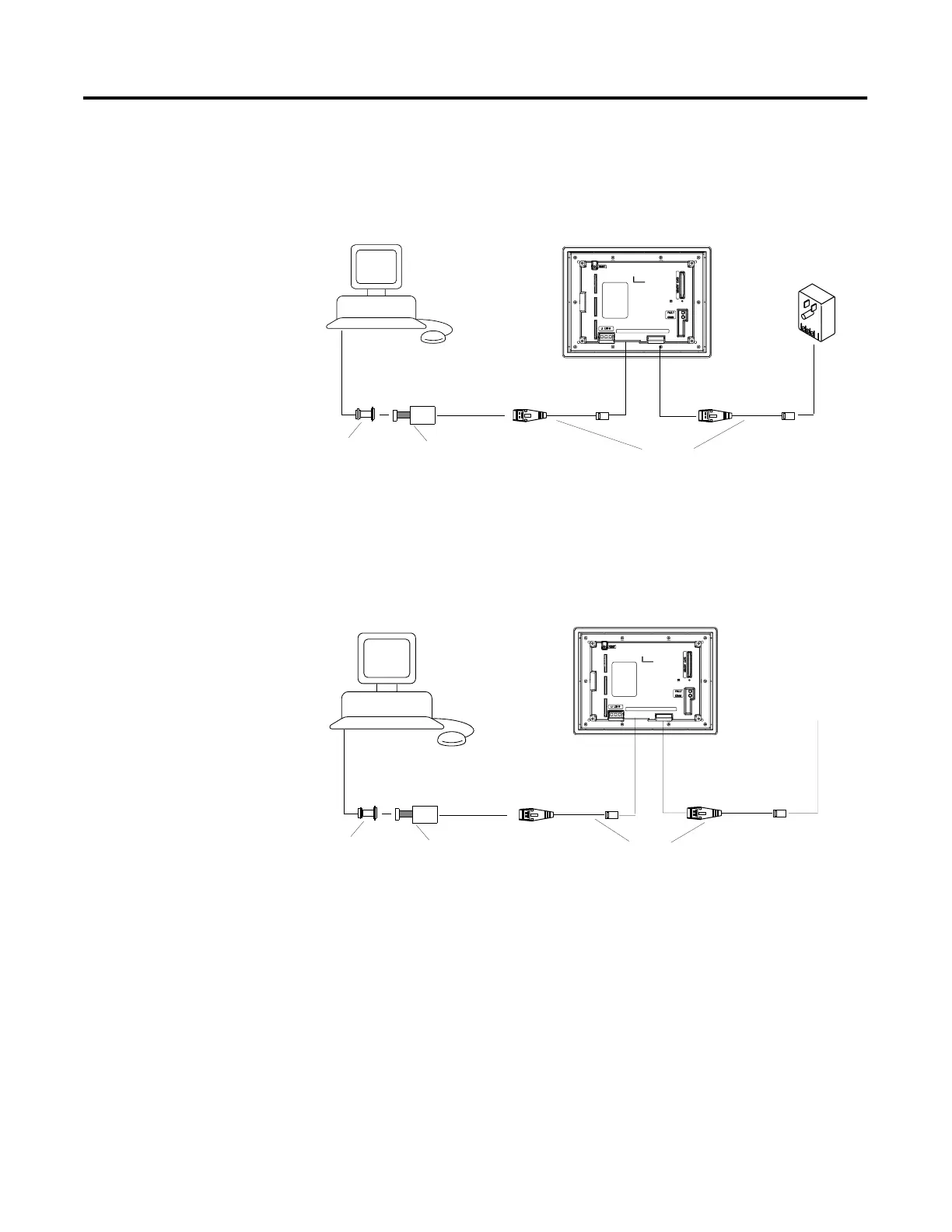

Connecting a Computer to DH-485 Connector Using a Power Supply
Connecting a Computer to DH-485 Connector Using a DH-485 Powered Devcie
Personal Computer
Interface Converter
(Cat. No. 1747-PIC)
25-pin to 9-pin
Adapter
(if required)
SLC 500 or
DH-485 Network
Cable
Cat. No. 1747-C10
Cat. No. 1747-C11
Cat. No. 1747-C20
To DH-485
Programming Connector
To DH-485
Communications Port
PanelView 1000
PanelBuilder32
Note: The computer can connect to any node on
the network. It is not necessary to directly connect
the computer to the PanelView terminal.
