Publication 2711-UM014B-EN-P
Terminal Connections 12-19

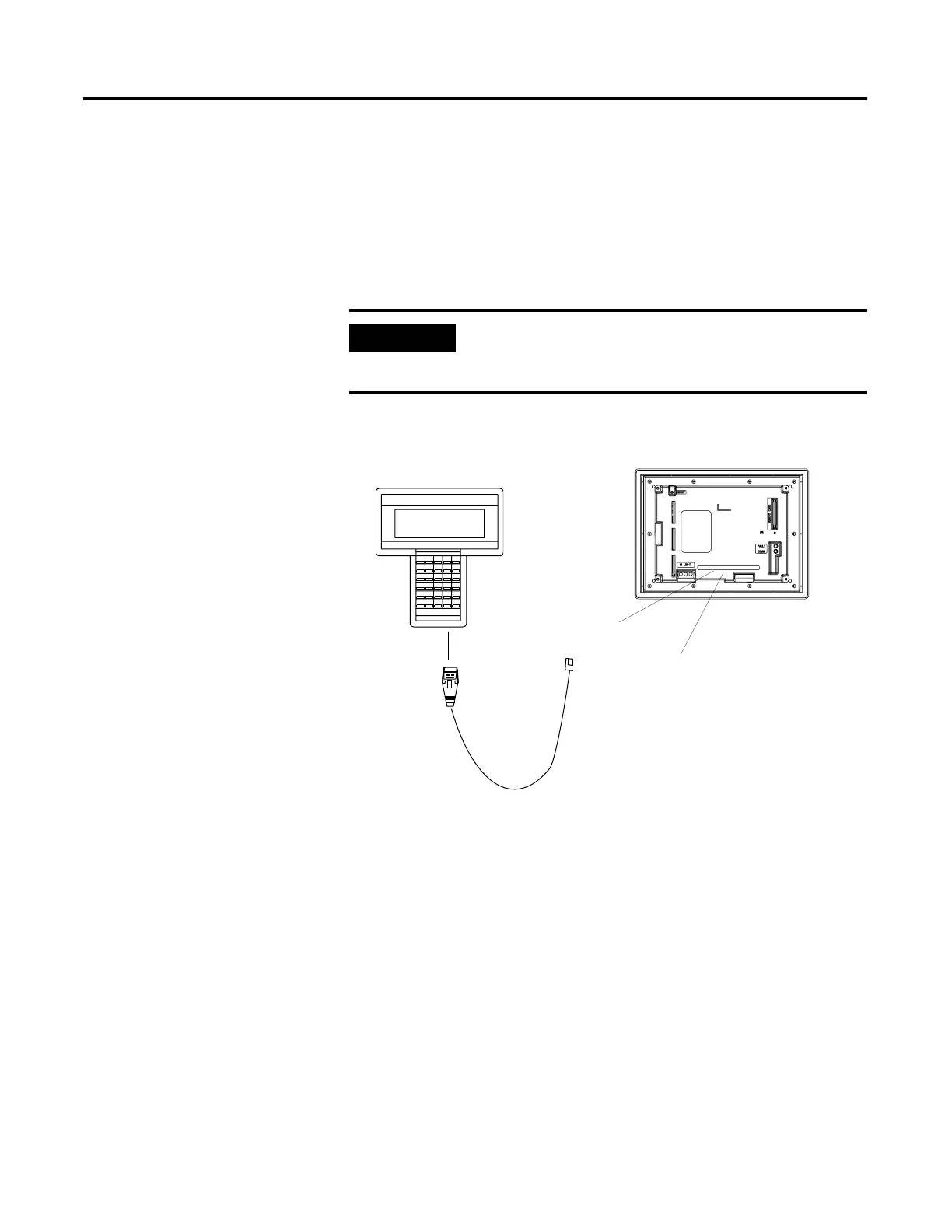

Connecting a Hand-Held Terminal
To connect a Hand-Held Terminal (HHT) to the PanelView terminal,
use cable Catalog No. 1747-C10. One end of the cable connects to the
HHT connector and the other end connects to the DH-485
programming connector on the terminal. All power is supplied to the
HHT through the cable.
IMPORTANT
The PanelView terminal must be connected to an
SLC, DH-485 network or power supply. This
connection provides power for the HHT.
PanelView 1000
Hand-Held Terminal
Catalog No. 1747-PT1
To DH-485
Programming Connector
DH-485 Comunications Port
Must be connected to an SLC, DH-485 network, or
wallmount power supply (Cat. No. 1747-NP1) to
provide power for the HHT.
Cable, 2 meters (6 feet) Catalog No. 1747-C10
