Allen-Bradley PV300 Micro User Manual

Publication 2711-UM014B-EN-P
12-42 Terminal Connections
Connecting to a Personal Computer
(Application File Transfers)
Transfer applications between a computer and PV300 Micro terminal
using one of the following cables.
Note: Applications for the PanelView 300 Micro terminal are
developed using PanelBuilder32 Software (Catalog No. 2711-ND3,
V3.60 or later).
Refer to the PanelBuilder32 Software user manual for application
download instructions. Here’s a short summary of the methods that
can be used to transfer files to a PanelView 300 Micro:
PanelBuilder32 Software
Supports the direct transfer of application files from PanelBuilder32
using an RS-232 link.
Windows
 PanelView File Transfer (WinPFT) Utility
Supports the direct transfer of PanelBuilder32 application files from
WinPFT over an RS-232 link. The WinPFT utility is included with the
PanelBuilder32 Software. RSLinx software may be required to transfer
applications to the terminal for DH-485 and DF1 protocols.
This method is recommended for direct downloads to installed
PanelView 300 Micro terminals using a portable or laptop computer.

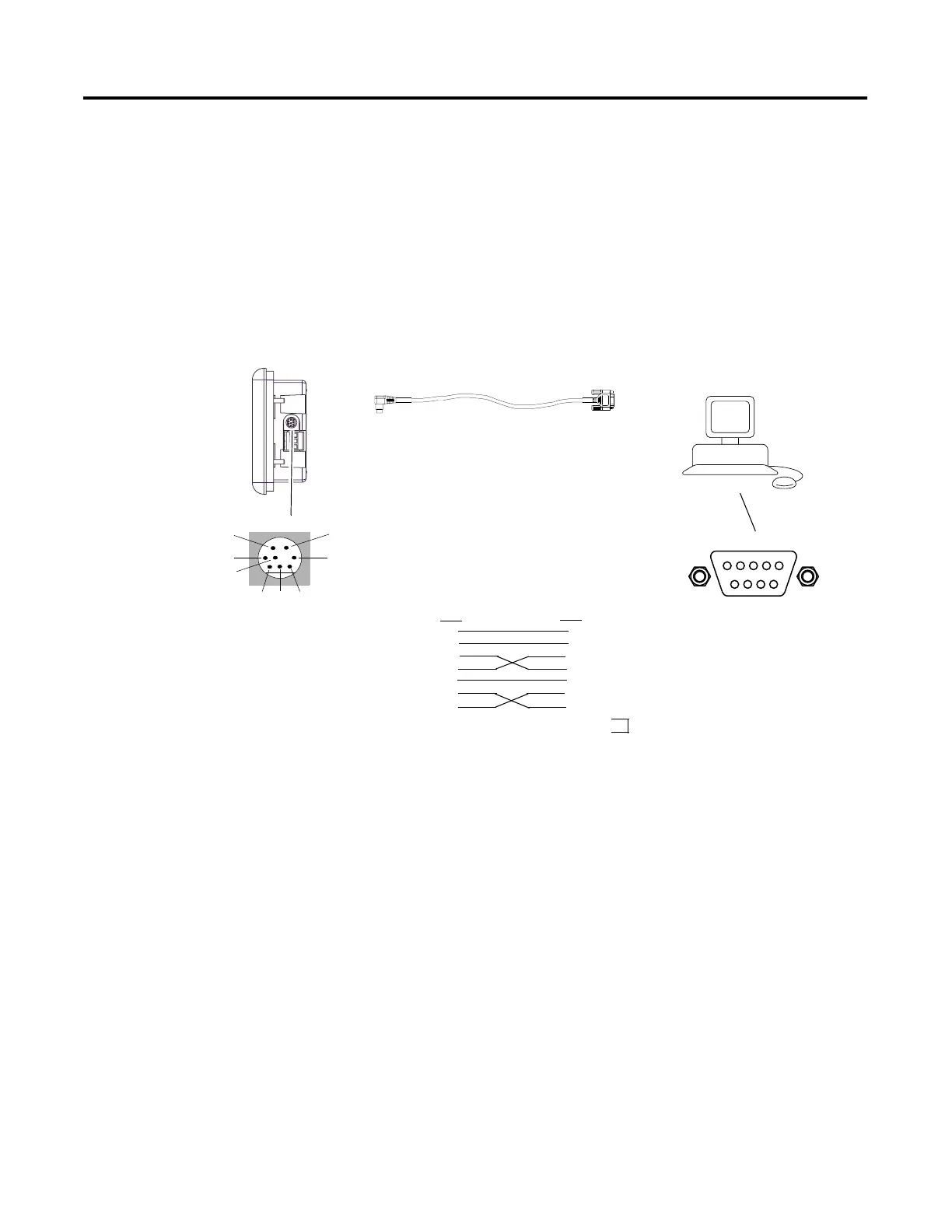

RS-232 Communications Port
Cable, Catalog No. 1761-CBL-PM02, Series C (2 m, 6.5 ft)
Cable, Catalog No. 2711-CBL-PM05, Series C (5m, 15 ft)
Cable, Catalog No. 2711-CBL-PM10, Series C (10m, 30ft)
1
3
2
5
4
87
6
PanelView 300 Micro
RS-232 Connector
Pin #
9
24V
2
3
GND
RTS
Pin #
1
6
9
Personal Computer
5
7
8
1
2
3
4
6
CTS
DCD
RXD
TXD
GND
RI
GND
RTS
CTS
DCD
RXD
TXD
DTR
DSR
1761-CBL-PM02
2711-CBL-PM05
Cable Connector
Cable Connector
(Running PanelBuilder32)
2711-CBL-PM10
5
1
5
4
6
7
8
