Publication 2092-UM001D-EN-P — July 2005

Interconnect and Cable Diagrams B-15

CN2 Feedback Cable

Assembly for TL-Series

Motors (2090-DANFCT-Sxx)

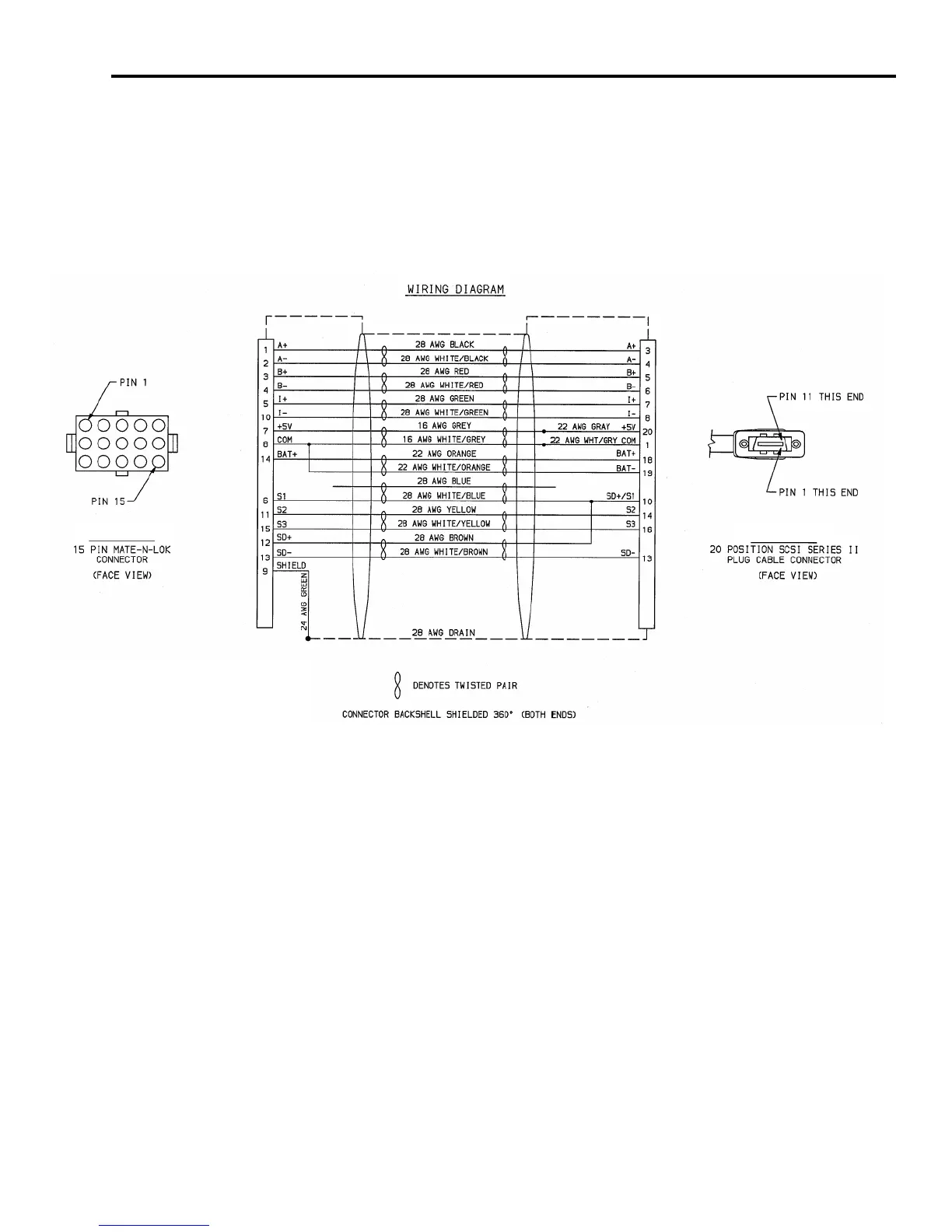

Figure B.14 shows the wiring diagram for the motor feedback cable assembly

sold by Allen-Bradley (catalog number 2090-DANFCT-Sxx) to interface the

Ultra1500 drive to the TL-Series motor family. This cable assembly includes

connections for serial encoders as well as incremental encoders.

Figure B.14

TL-Series Motor Feedback Cable Diagram.
