Publication 2092-UM001D-EN-P — July 2005

B-16 Interconnect and Cable Diagrams

CN3 PC Communications

Assembly

(2090-DAPC-D09xx)

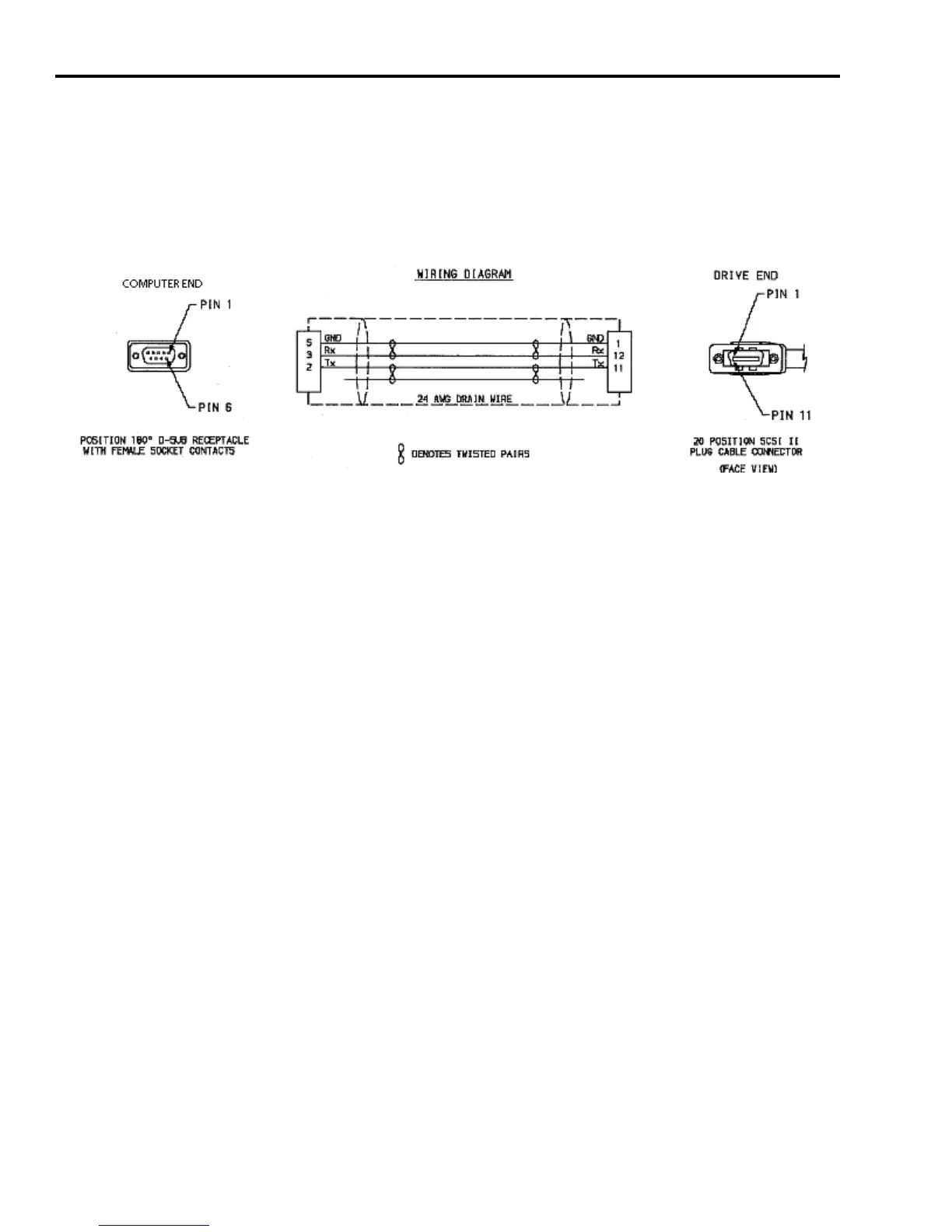

Figure B.15 shows the wiring diagram for the CN3 PC communications cable

assembly sold by Allen-Bradley (catalog number 2090-DAPC-D09xx) to

interface the Ultra1500 drive to a host computer.

Figure B.15

Ultra1500 CN3 PC Communications Cable Diagram
