Control Identification
Select Cycle Keypads
The SELECT keypad is used to select the specific machine cycle.
The default cycle is set at the previously selected cycle. The se-
lected cycle is indicated by the light (LED) on the control. Press-
ing the START (enter) keypad will confirm the selection and the
cycle will begin.
NOTE: The reversing feature is not available on all
models.

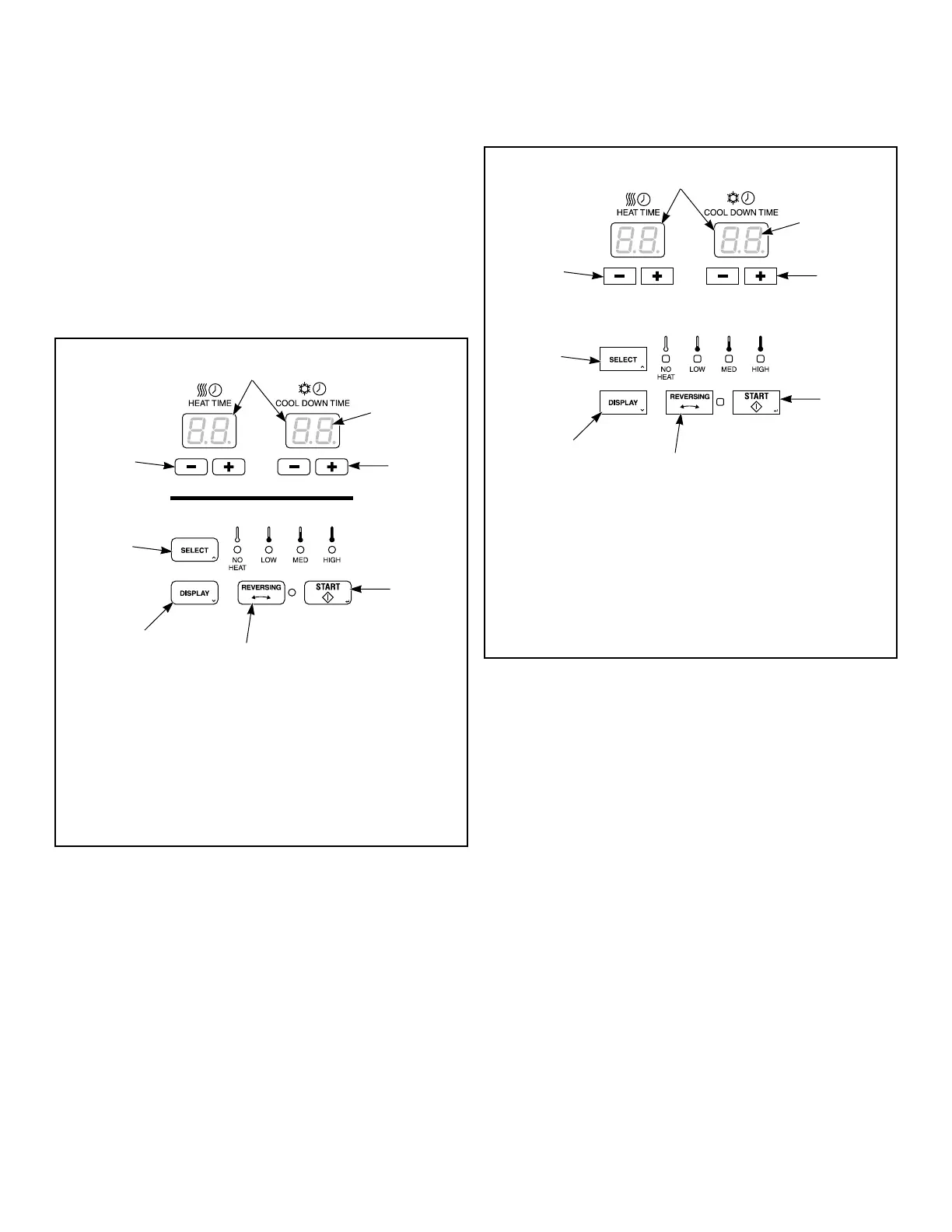

S Models
TMB1783R_SVG
1
2
3
4
5
6
7
8
1. Display
2. 7-segment Digits
3. Increase/Decrease COOL DOWN TIME
4. START (enter) Keypad
5. REVERSING Keypad
6. DISPLAY Keypad
7. SELECT Temperature Keypad
8. Increase/Decrease HEAT TIME
H Models
TMB1784R_SVG
1
2
3
4
5
6
7
8
1. Display
2. 7-segment Digits
3. Increase/Decrease COOL DOWN TIME
4. START (enter) Keypad
5. REVERSING Keypad
6. DISPLAY Keypad
7. SELECT Temperature Keypad
8. Increase/Decrease HEAT TIME
Control Identification
©
