Exhaust Requirements
44
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7
1
Outlet duct diameter = largest duct diameter based on number of units
2
45° typical

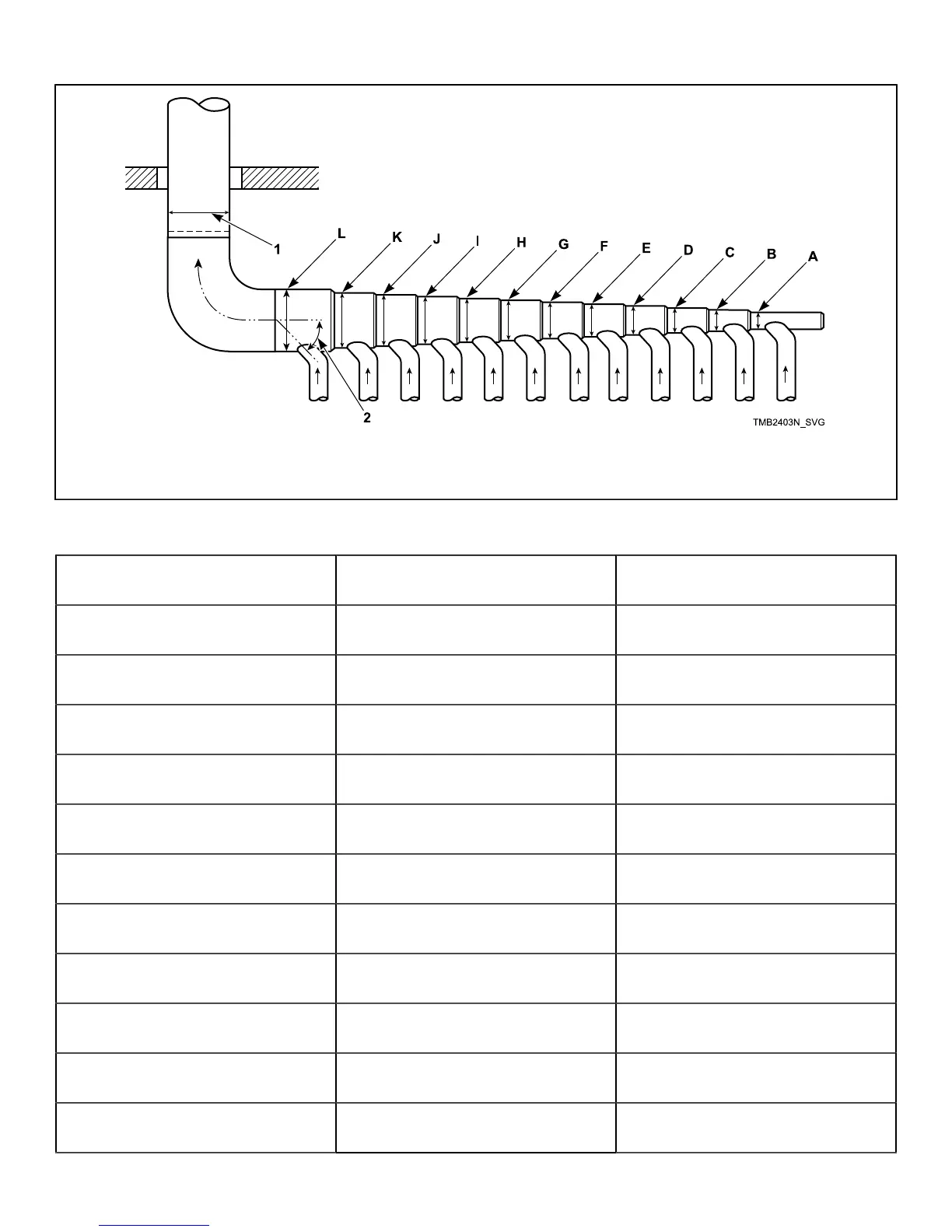

Figure 13 One Manifold Assembly
Duct Station 120 Series 170/200 Series
A 10 in. (254 mm) 12 in. (305 mm)
B 15 in. (381 mm) 17 in. (432 mm)
C 18 in. (457 mm) 21 in. (533 mm)
D 21 in. (533 mm) 24 in. (610 mm)
E 24 in. (610 mm) 27 in. (686 mm)
F 26 in. (660 mm) 30 in. (762 mm)
G 28 in. (711 mm) 32 in. (813 mm)
H 30 in. (762 mm) 34 in. (864 mm)
I 32 in. (813 mm) 36 in. (914 mm)
J 33 in. (838 mm) 38 in. (965 mm)
K 35 in. (889 mm) 40 in. (1,016 mm)
