Exhaust Requirements
Part No. 70458101ENR7
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 45
Duct Station 120 Series 170/200 Series
L 36 in. (914 mm) 42 in. (1,067 mm)
Table 4
NOTE: Table 4 represents units with the same vent
size. If multiple vent sizes are used, consult a local
HVAC specialist.
NOTE: Duct clean-out recommended every 6 feet
(183 cm) .
1
Outlet duct diameter = combined largest duct diameter of both sides
2
45° typical

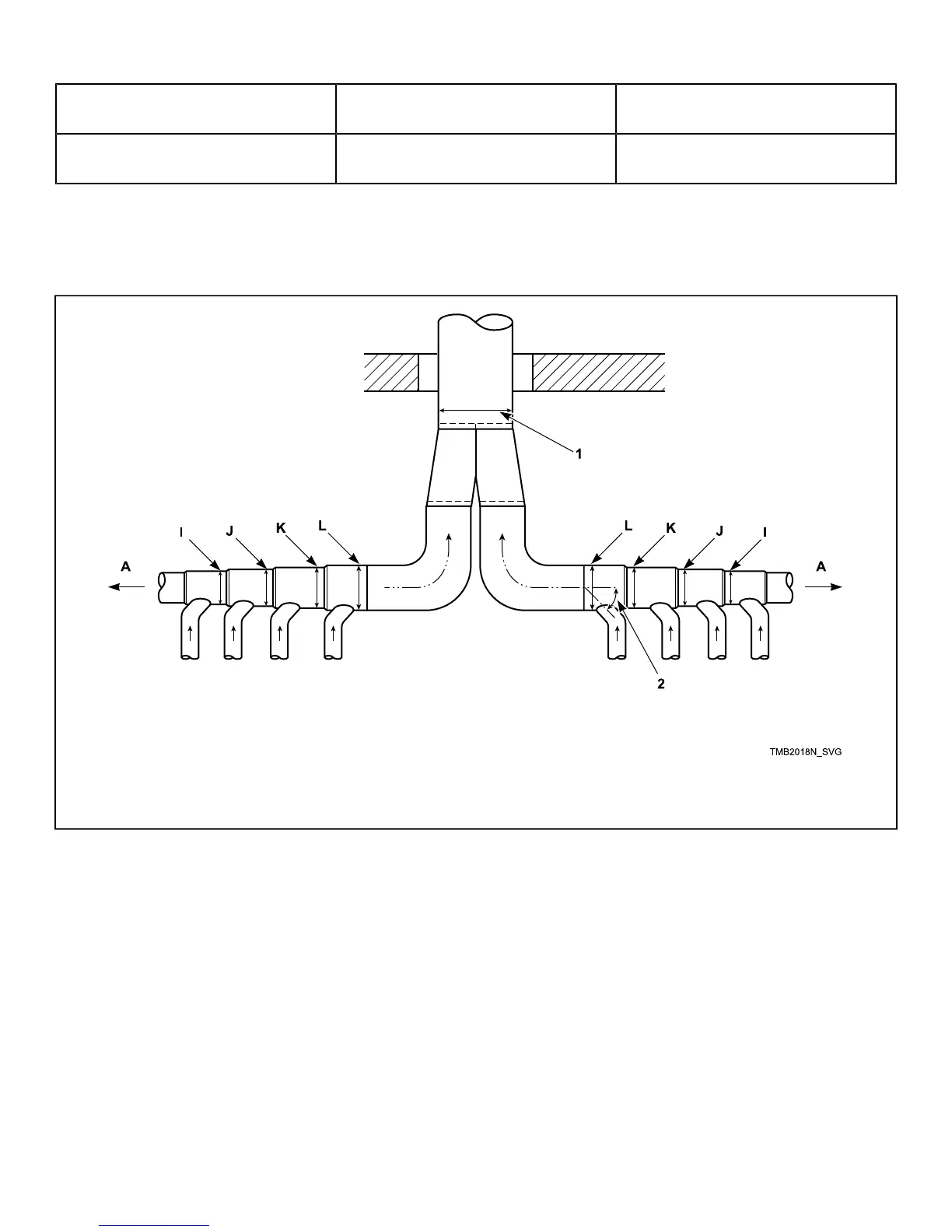

Figure 14 Two Manifold Assemblies
Refer to Table 4 for measurements for each manifold.
