Figure 23
NOTE: If the door is open, the Close Door Menu
shows until the door is closed.
5. The control displays the Run Menu until the cycle is com-
plete.

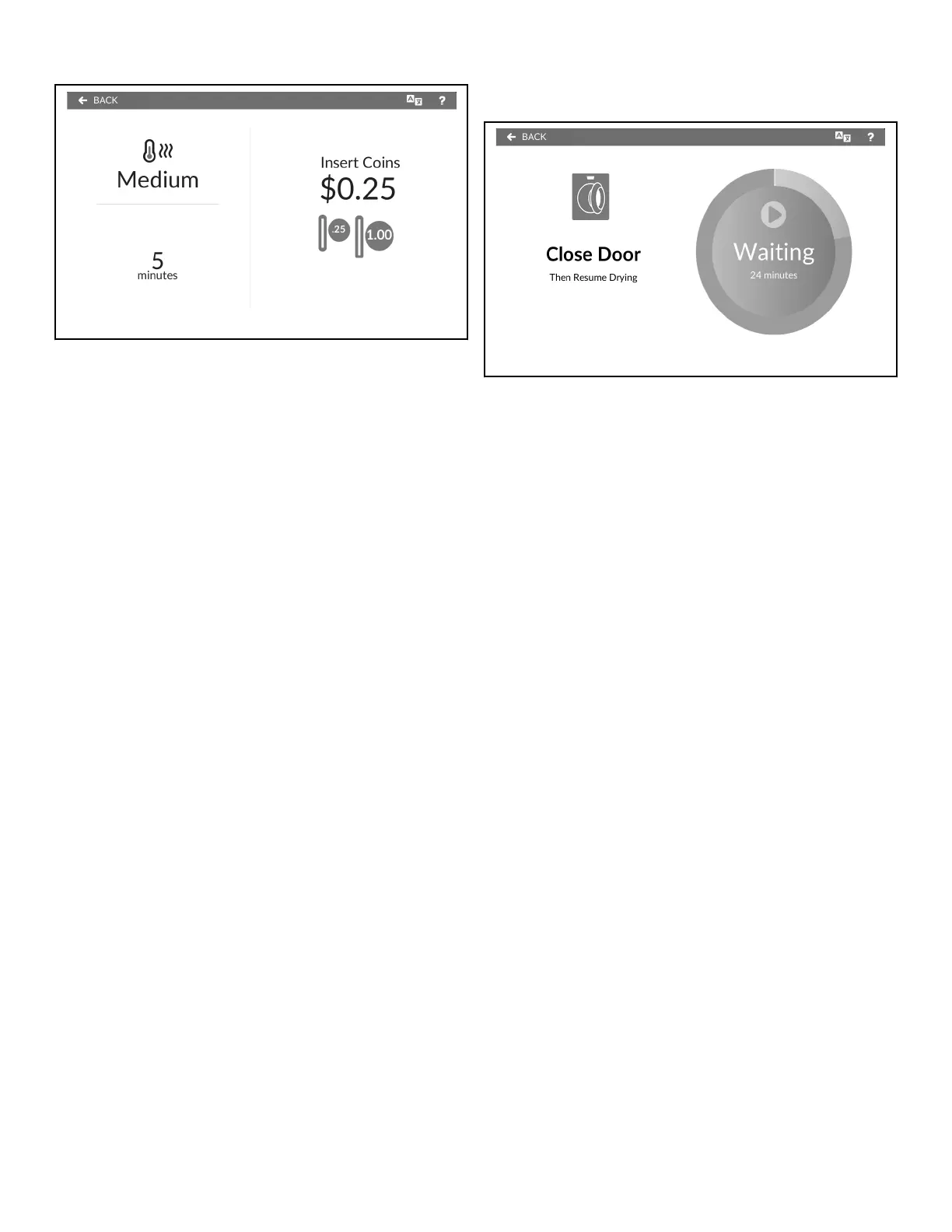

Close Door Menu
Figure 24
The control displays the Close Door Menu when the loading or
lint door is open when starting a cycle or while resuming a cycle.
Close the door to start or resume the cycle.
Run Menu
The Run Menu displays the cycle name, status, cycle step list and
remaining cycle time while the cycle is in process. It also shows
top-off time, if enabled. Refer to Figure 25 .
Machine Cycle Definition and Operation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
28 Part No. 70600001ENR6
